Assembly - Standard Ceiling Mount

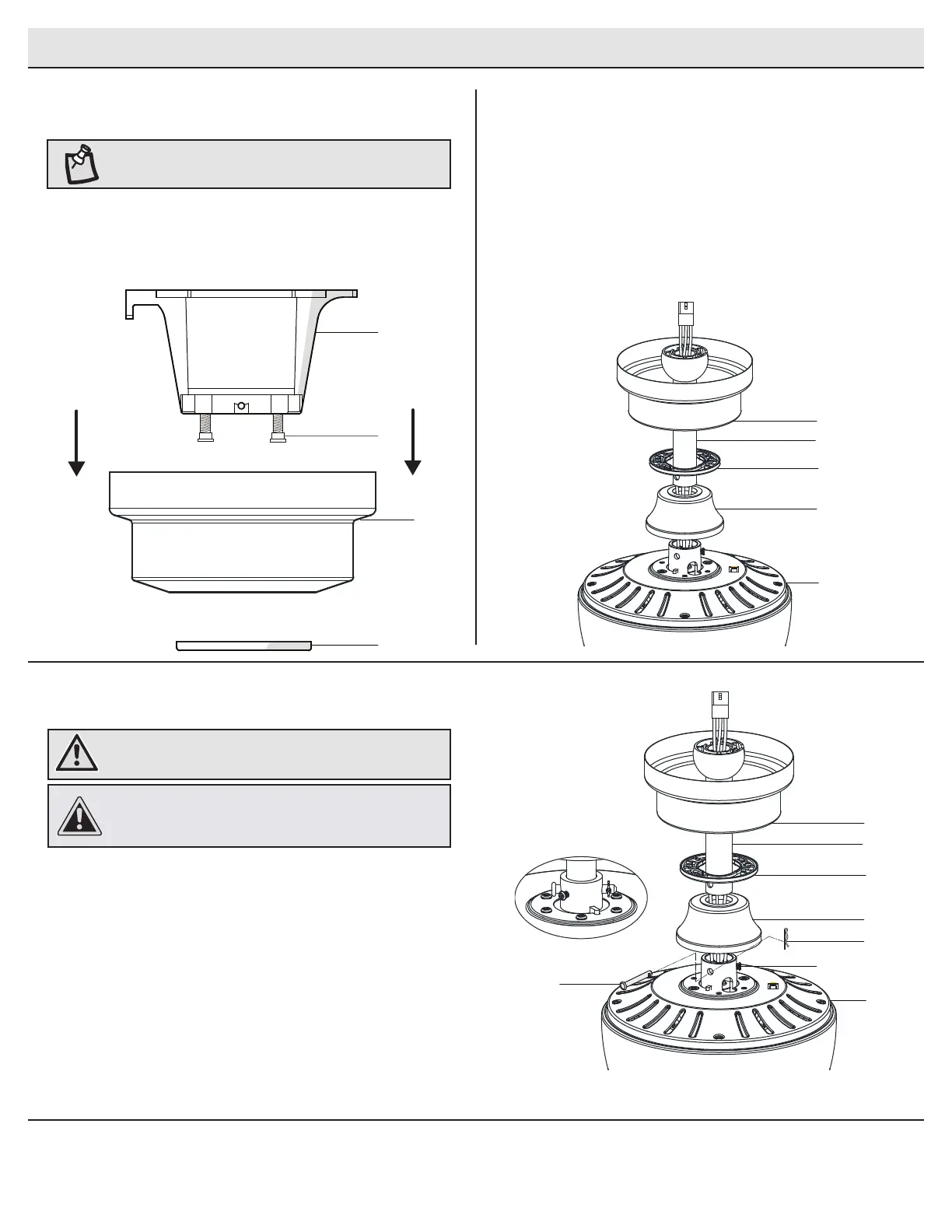

Routing the wiresPreparing for standard mounting
□ Route the wires exiting the top of the fan motor assembly
(E) through the decorative motor collar cover (D) and then
the center of the magnetic canopy bottom cover (II).
□ Make sure the opening of the canopy (C) is on top and
insert the ball/downrod (B) through the canopy (C).
□ Route the wires exiting the top of the fan motor assembly
(E) through the downrod as shown.
21
□ Pull off the canopy bottom cover (II) from the canopy (C).
□ Loosen the two canopy screws (GG) located in the bottom of the
mounting bracket (A), and turn the canopy counterclockwise to
remove the mounting bracket (A) from canopy (C).
Assembling the fan
□ Loosen, but do not remove, the setscrews (OO) on the collar on
top of the fan-motor assembly (E).
□ Align the holes at the bottom of the ball/downrod assembly (B)
with the holes in the collar on top of the fan-motor assembly
(E).
□ Carefully insert the hanger pin (CC) through the holes in the
collar and ball/downrod assembly (B). Be careful not to jam
the hanger pin (CC) against the wiring inside the ball/downrod
assembly (B).
□ Insert the locking pin (DD) through the hole near the end of the
hanger pin (CC) until it snaps into its locked position.
□ Re-tighten the setscrews (OO) on the collar on top of the fan
motor assembly (E).
3
CAUTION: To ensure wobble-free operation and to avoid
damage to the fan, the downrod (B) and the setscrew (OO)
must be completely tightened.
NOTE: The magnet is pre-attached on the canopy bottom
cover (II) for you to remove and install easily.
C
A
GG
II
C
II
E
B
D
C
II
E
B
D
CC
DD
OO
WARNING: Failure to properly install the locking pin (DD)
could result in the fan becoming loose and possibly falling.
