SILENCER GUARD ASSEMBLY
See Figure 4.
1. Remove silencer guard and two screws from the
owner’s kit.
2. Attach the silencer guard to the rear housing.
NOTE: Make sure the bent end of the silencer guard fits
securely into the opening of the rear housing.
3. Install two screws.
4. Tighten screws securely.
ASSEMBLY

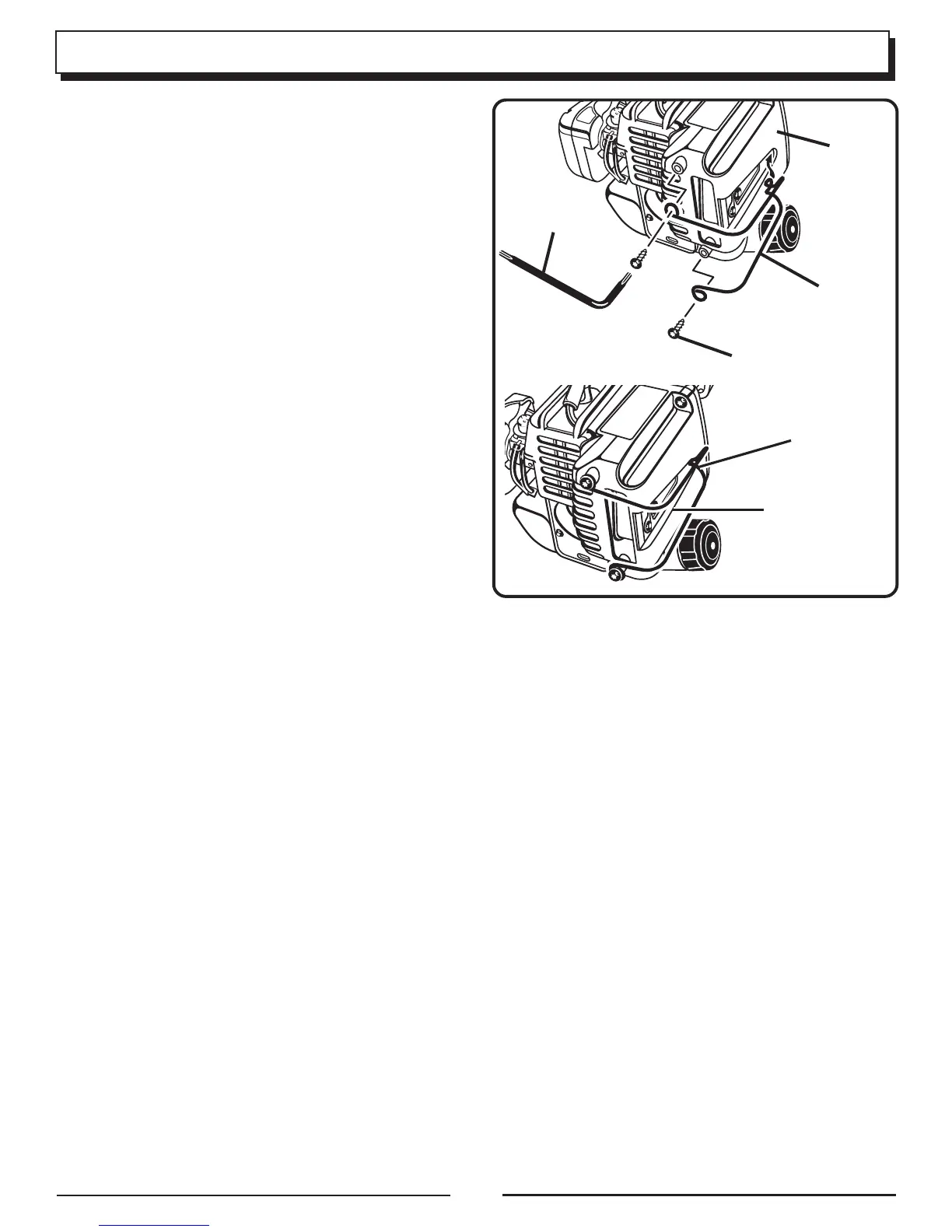

Fig. 4
BENT END OF
SILENCER GUARD
OPENING IN REAR
HOUSING
SCREWS
SILENCER
GUARD
REAR
HOUSING
TORQUE
WRENCH
