17
1
2
3 A1
4
A2
1
2
3
B1
1
2
B2
B5

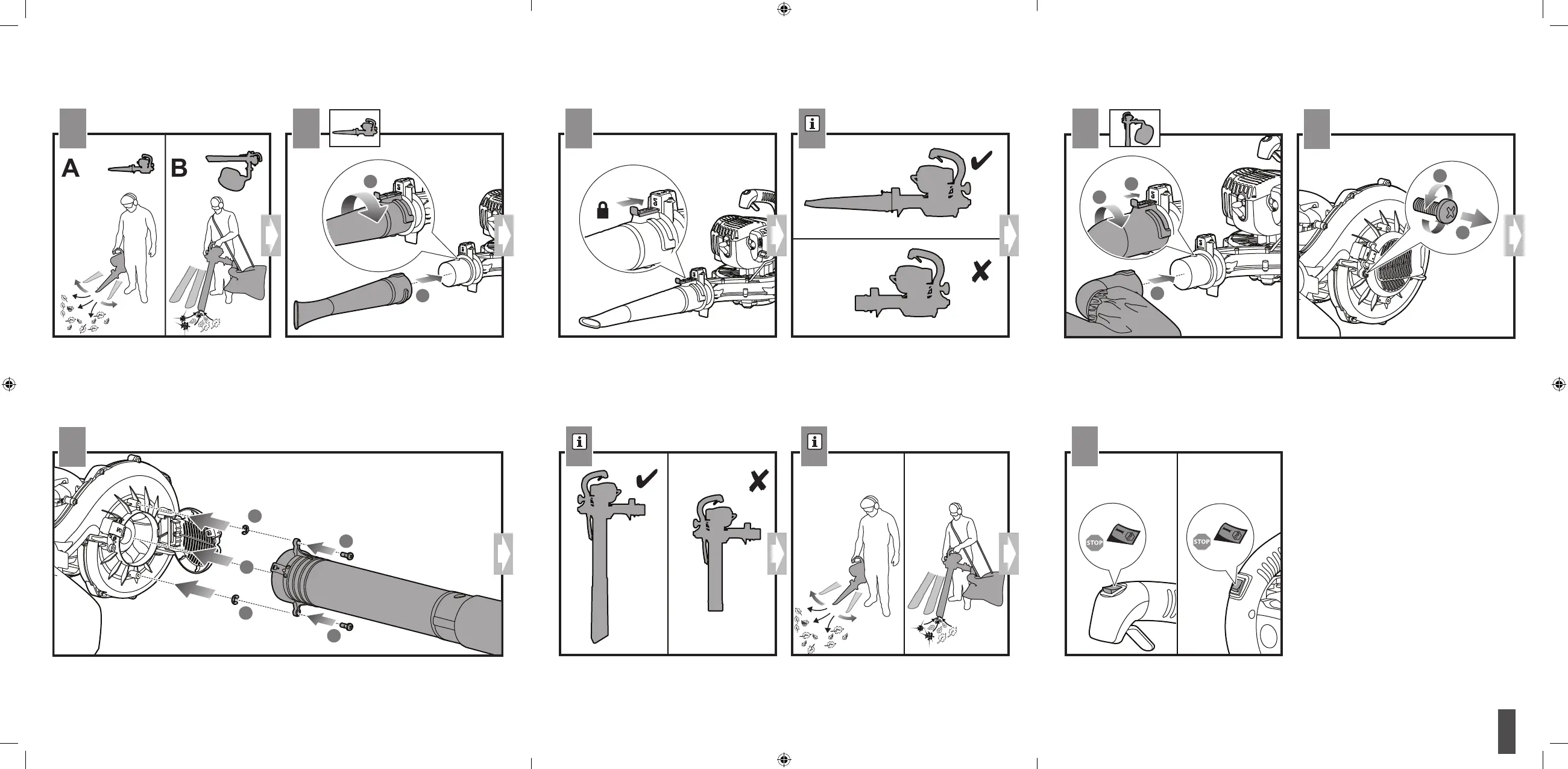

1. Align raised tabs on upper blower tube with the slots on
blower housing outlet. 2. Attach and tighten securely by
turning clockwise until it clicks into place.
A. Attach the blower tube. B. Attach the vacuum tubes.
Press slider plate into positive switch’s slot.
1. Align the raised slots on the vacuum bag adaptor with
the raised locking tabs on the blower housing outlet; push
the bag adaptor onto the housing. 2. Twist to lock into
place. 3. Press the slider plate into the positive switch slot
to make sure the switch is engaged and ready to operate.
1. Depress door tab using a at head screwdriver.
2. Loosen the screw on the door to open vacuum inlet door.
1. Align tabs on housing with the vacuum tube assembly. 2. Tighten screws on upper vacuum tube to secure to blower
housing.
A. Hold the blower with the upper handle in your right hand.
Place the vacuum bag strap over your right shoulder. Hold
the upper handle in your left hand and the vacuum handle
in your right hand.
To stop the engine, toggle either the blower or vacuum
switch to the “STOP” position.
NOTE: Ensure to attach the blower tube securely to the
blower/vacuum housing.
NOTE: Ensure to attach the vacuum tubes securely to the
blower/vacuum housing.
