PRODUCT SPECIFICATIONS
FEATURES
Bar length:
UT10522, UT10526 ................................. 20 in.
UT10519 ................................................. 18 in.
Chain pitch ............................................. .325 in.
Chain gauge ........................................... .050 in.
Chain type ............................................ Standard
Drive sprocket ....................................... 10-tooth
Engine displacement ................................... 46cc
Engine power ................................... 2.5 HP min.
Idle engine speed ........2,600-3,400 r/min. (RPM)
Fuel tank capacity .................................. 19.4 oz.
Chain lubricant tank capacity ................. 11.8 oz.
Weight - No bar, chain, fuel or lubricant ... 10 lbs.
CHAIN
TENSIONING DIAL
CLUTCH COVER
LOCK KNOB

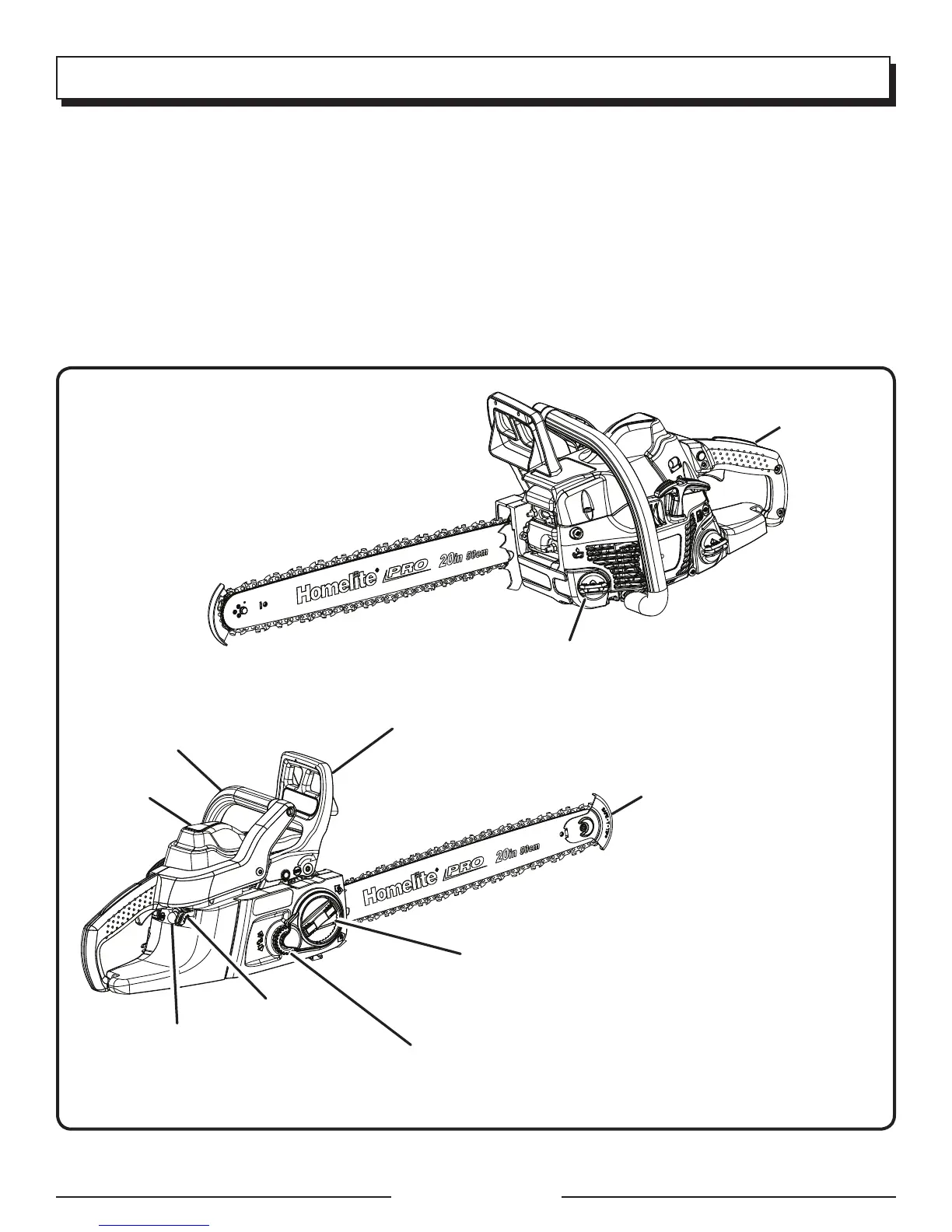

Fig. 1a
FRONT HAND GUARD/
CHAIN BRAKE
FRONT
HANDLE
CYLINDER
COVER
TRIGGER
RELEASE
CHAIN OIL
CAP
SAFE-T-TIP
®
PRIMER BULB
CHOKE LEVER
