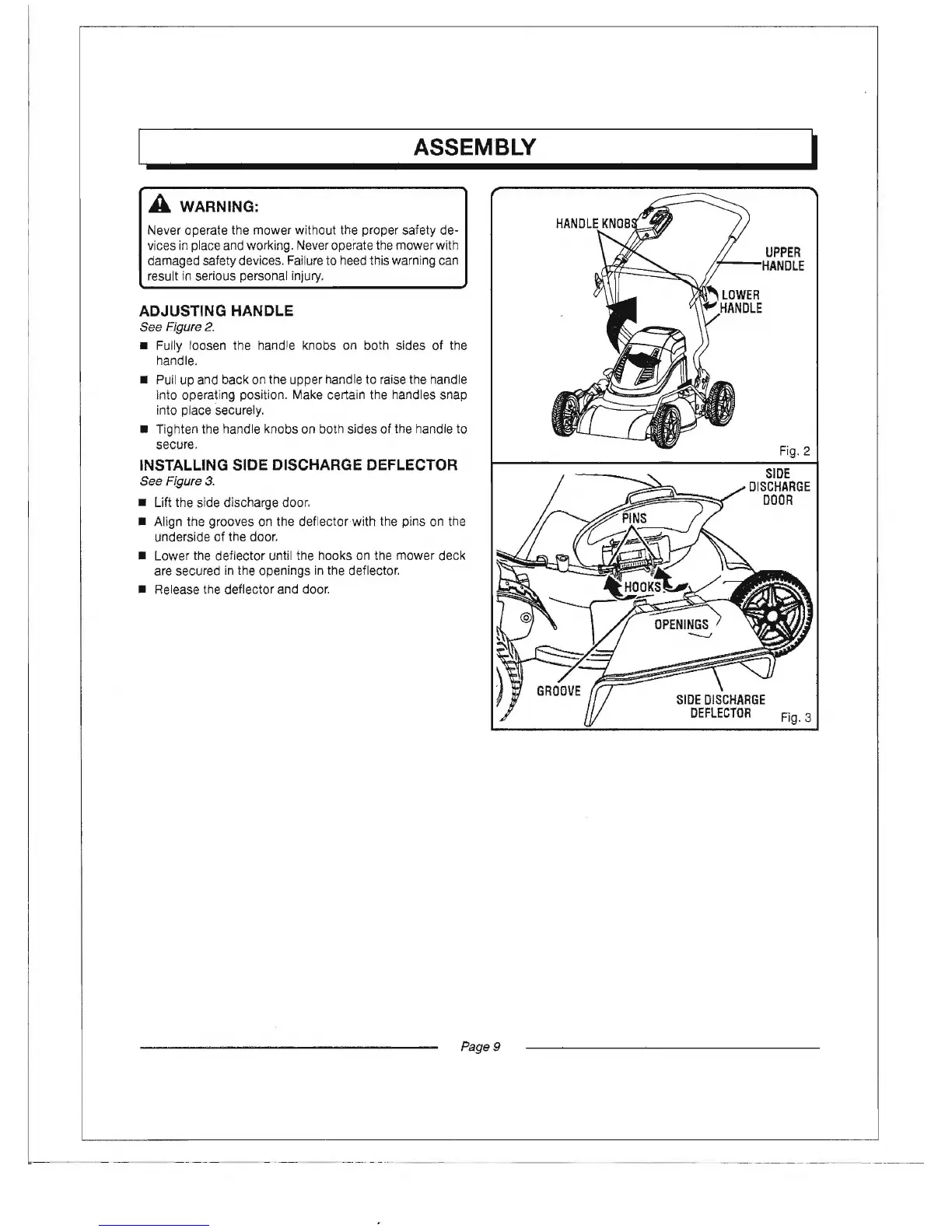

ASSEMBLY
A WARNING:
Never operate the mower without the proper safety de-
vices
in
place and working. Never operate the mower with
damaged safety devices. Failure to heed this warning can
result
in
serious personal injury.
ADJUSTING HANDLE
See Figure
2.
• Fully loosen the handle knobs on both sides of the
handle.
• Pull up and back on the upper handle to raise the handle
Into operating position. Make certain the handles snap
into place securely.
• Tighten the handle knobs on both sides
of
the handle
to
secure.
INSTALLING SIDE DISCHARGE DEFLECTOR
See
Figure
3.
•
Lift
the side discharge door.
• Align the grooves on the deflector
with
the pins on the
underside
of
the door.
• Lower the deflector until the hooks on the mower deck
are secured
in
the openings
in
the deflector.
• Release the deflector and door.
Fig. 2
SIDE
DISCHARGE
DOOR
Fig. 3
Page 9
-
--
