OPERATION
__________ --....11

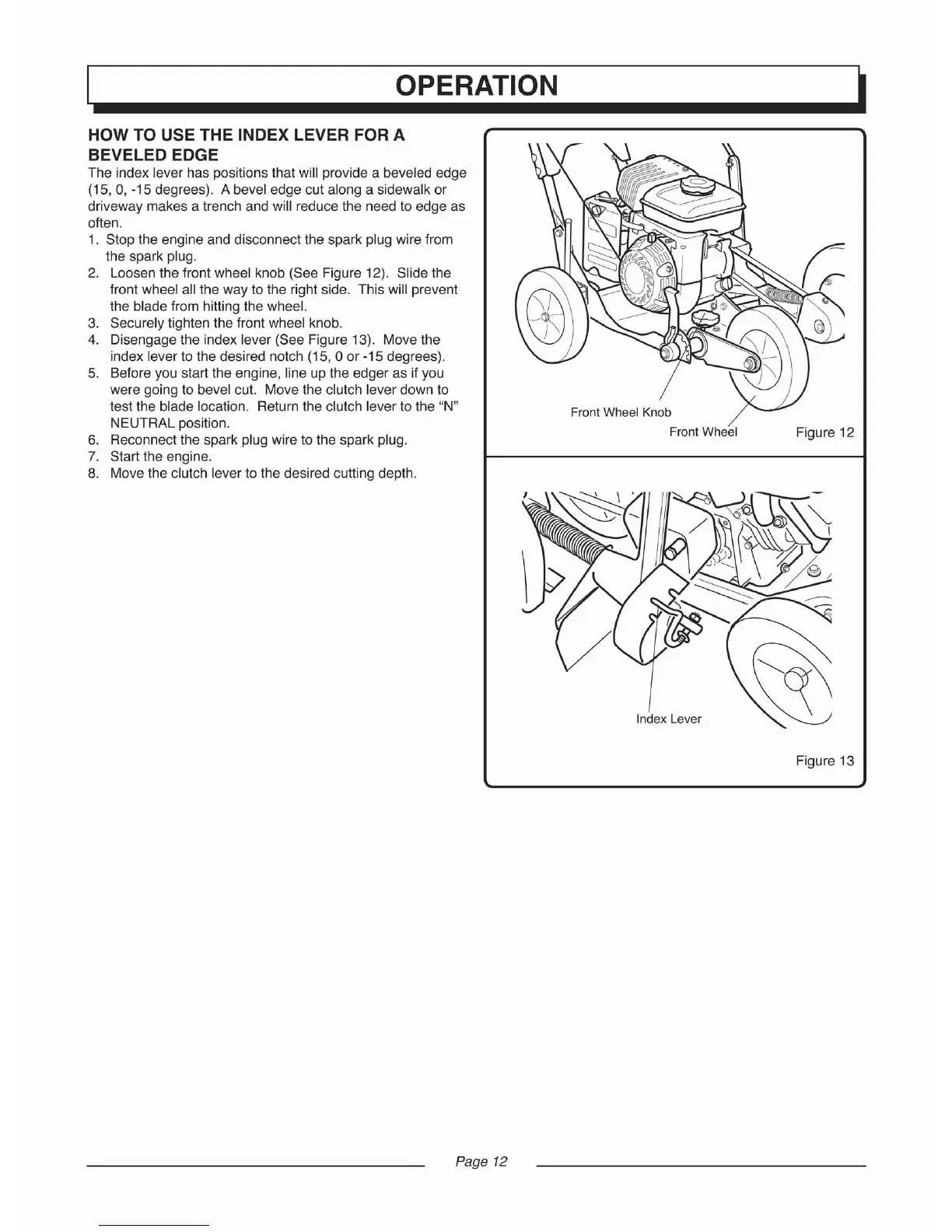

HOW TO USE THE INDEX LEVER FOR A
BEVELED EDGE
The index lever has positions that will provide a beveled edge
(15
,0 , -15 degrees). A bevel edge cut along a sidewalk or
driveway makes a trench and will reduce the need to edge as
often.
1. Stop the engine and disconnect the spark plug wire from
the spark plug.
2. Loosen the front wheel knob (See Figure 12). Slide the
front wheel all the way to the right side. This will prevent
the blade from hitting the wheel.
3. Securely tighten the front wheel knob.
4. Disengage the index lever (See Figure 13). Move the
index lever to the desired notch (15,
°or -15 degrees).
5. Before you start the engine, line up the edger as if you
were going to bevel cut. Move the clutch lever down to
test the blade location. Return the clutch lever to the "N"
NEUTRAL position.
6. Reconnect the spark plug wire to the spark plug.
7. Start the engine.
8. Move the clutch lever to the desired cutting depth.
Front Wheel Knob
Fron t Wheel
Figure 12
Index Lever
Figure 13
