Homelite UT13140 User Manual

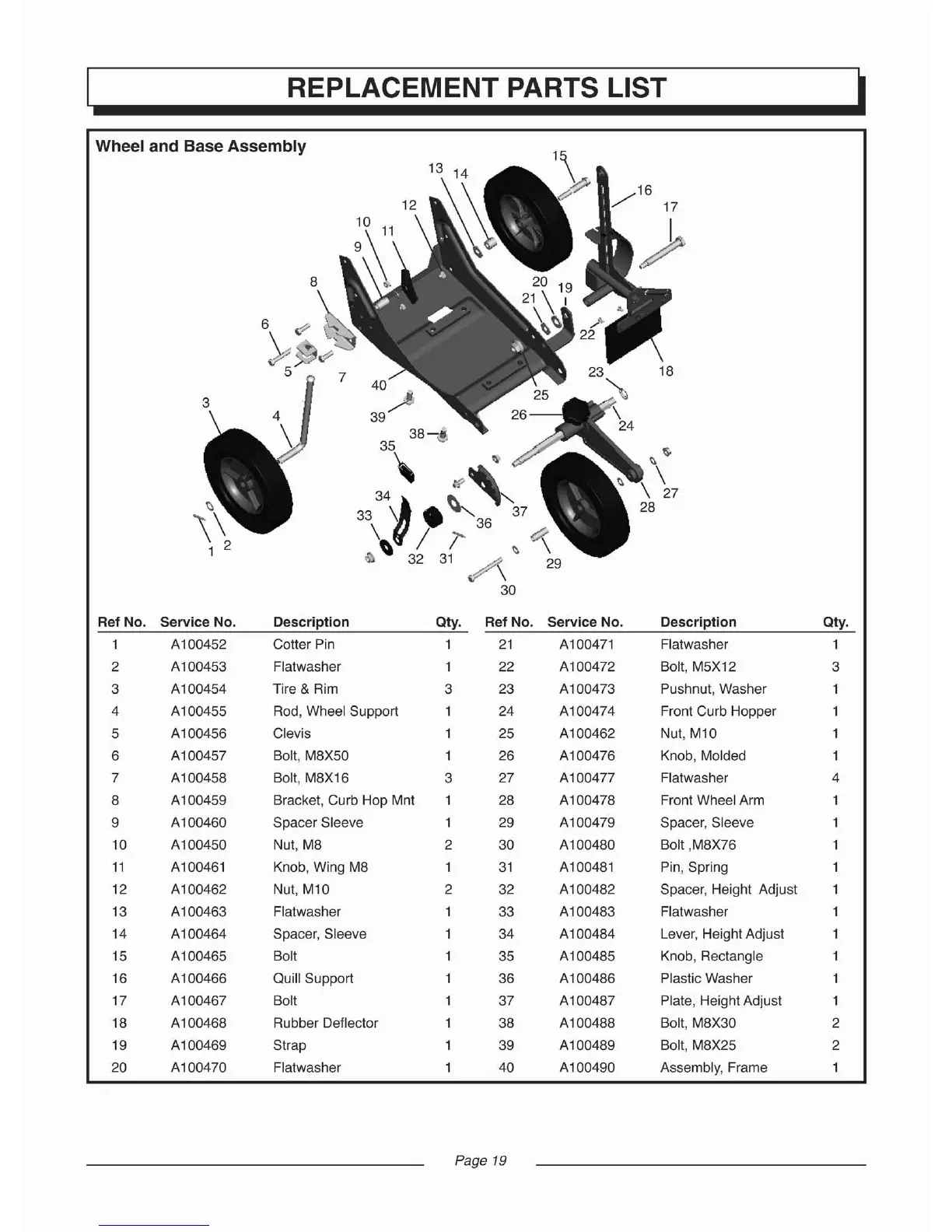

REPLACEMENT PARTS LIST
Wheel and Base Assembly
/ 16
/' 17
./
40
3
39 ~
35
38 --., ! ,
" ~
"I (,
33\ .36
37
\ / r ~ ~
"" 32 31 .;7\ 29
30
Ref No. Service No. Descript
ion Qty. Ref No. Service No. Descr iption
Qty.
1 A100452 Cotter Pin 1 21 A100471 Flatwasher 1
2 A100453 Flatwasher 1 22 AI 00472 Bolt, M5X12 3
3
A100454
lir e & Rim
3
23 AI 00473 Pushnut, Washer 1
4 A100455 Rod, Wheel Support
1
24 AI 00474
Front Curb Hopper 1
5
A100456 Clevis 1 25 AI 00462 Nut, M10 1
6 A100457
Bolt, M8X50
1 26
AI 00476
Knob, Molded
1
7 A100458 Bolt, M8X16
3
27 A100477 Flatwasher 4
8 A100459 Bracket, Curb Hop Mnt 1 28 AI 00478 Front Wheel Arm 1
9
A100460 Spacer Sleeve 1 29 AI 00479 Spacer, Sleeve 1
10 A100450 Nut, M8 2 30
Al00480 Bolt ,M8X76 1
11 A100461 Knob, Wing M8 1 31 Al00481 Pin, Spring 1
12 A100462 Nut, M10
2 32
A
l00482 Spacer, Height Adjust
1
13 A100463 Flatwasher 1
33
A100483 Flatwasher 1
14 A100464 Spacer, Sleeve
1
34 A100484 Lever, Height Adjust
1
15 A100465 Bolt 1
35
A
l00485 Knob, Rectangle 1
16 A100466 Quill Support 1 36
Al00486 Plastic Washer 1
17 A100467 Bolt 1 37
Al00487 Plate, Height Adjust 1
18 A100468 Rubber Deflector 1 38
Al00488 Bolt, M8X30 2
19 A100469 Strap 1
39
Al00489 Bolt, M8X25 2
20
A100470 Flatwasher
1
40 A
l00490 Assembly, Frame
1
