Homelite UT13140 User Manual

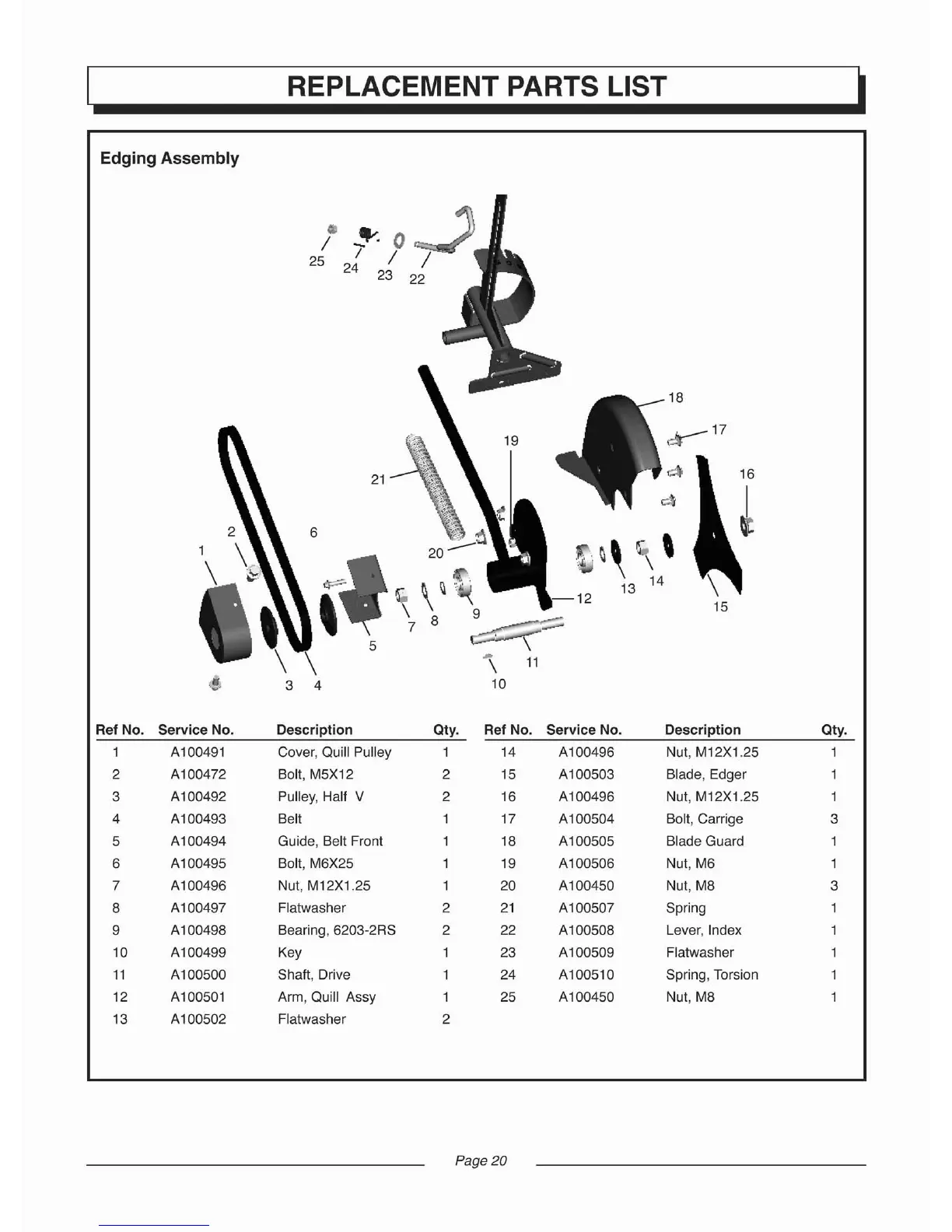

Edging Assembly
REPLACEMENT PARTS LIST
/
25
18
~ 17
~,
. ~ .
~ , "\ '
\ ~ . ,
13 14
fo .
-1 2
\ 8
9
7
~
5
~
11
\
••
3 4
10
v
Ref No. Service No. Descr iption Qly . Ref No. Service No. Descr iption
Qly.
1 A100491 Cover, Quill Pulley 1 14 A100496 NUl, M12X1.25 1
2 A100472 Bolt, M5X12 2 15 A100503 Blade, Edger 1
3 A100492 Pulley, Half V 2 16 A100496 Nut, M12X1.25 1
4 A100493 Belt 1 17 A100504 Bolt, Carrige
3
5 A100494 Guide, Belt Front 1 18 A100505 Blade Guard 1
6
A100495 Bolt, M6X25 1 19 A100506 Nut, M6 1
7 A100496 Nut, M12X1.25 1 20 A100450 Nut, M8 3
8
A100497 Flatwasher 2 21 A100507 Spring 1
9 A100498
Bearing, 6203-2RS
2 22 A100508 Lever, Index 1
10 A100499 Key 1 23 A100509 Flatwasher 1
11 A100500 Shaft, Drive 1 24 A100510 Spring, Torsion 1
12 A100501 Arm, Quill Assy 1 25 A100450 Nut, M8 1
13 A100502 Flatwasher
2
Page 20

Homelite UT13140 Specifications

General

Brand	Homelite
Model	UT13140
Category	Edger
Language	English
