Page 12 — English
1 099963001901 Label (left side) ...........................................................................................................1
2 099963001902 Label (right side) .........................................................................................................1
3 3130285FG Front Handle ...............................................................................................................1
4 99959001907 Warning Label ............................................................................................................1
5 3290205G Hex Nut (M6) ..............................................................................................................1
6 3110482G Clamp .........................................................................................................................1
7 3110282HG Knob Screw (M6) ........................................................................................................1
8 99963001903 Logo Label .................................................................................................................1
9 333000346G Edge Guide ................................................................................................................1
10 3290305G Flat Washer ................................................................................................................1
11 3290675G Lock Washer ..............................................................................................................1
12 3220811G Screw (M4 x 16 mm) ..................................................................................................1
13 34101176AG Spool Retainer ............................................................................................................1
14 31104178G Spool Assembly .........................................................................................................1
15 31101346G Grass Deflector ..........................................................................................................1
16 99963001904 Data Label ..................................................................................................................1
17 99963001900 Guard Label ................................................................................................................1
987000882 Operator’s Manual
KEY PART
NO. NUMBER DESCRIPTION QTY.

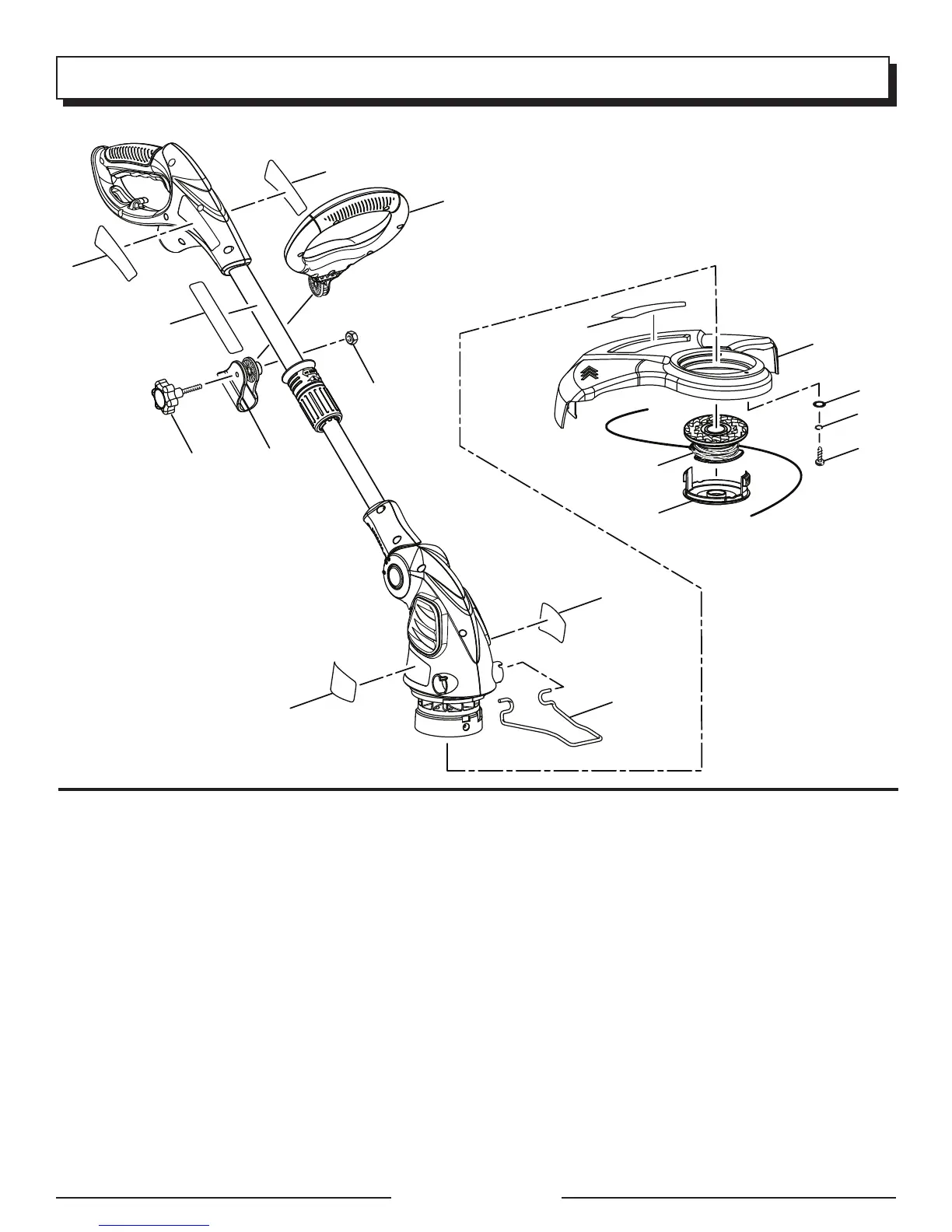

ILLUSTRATED PARTS LIST
1
2
3
4
7
16
8
9
6
5
15
17
10
11
14
13
12
To Next Page
