4
INTRODUCTION

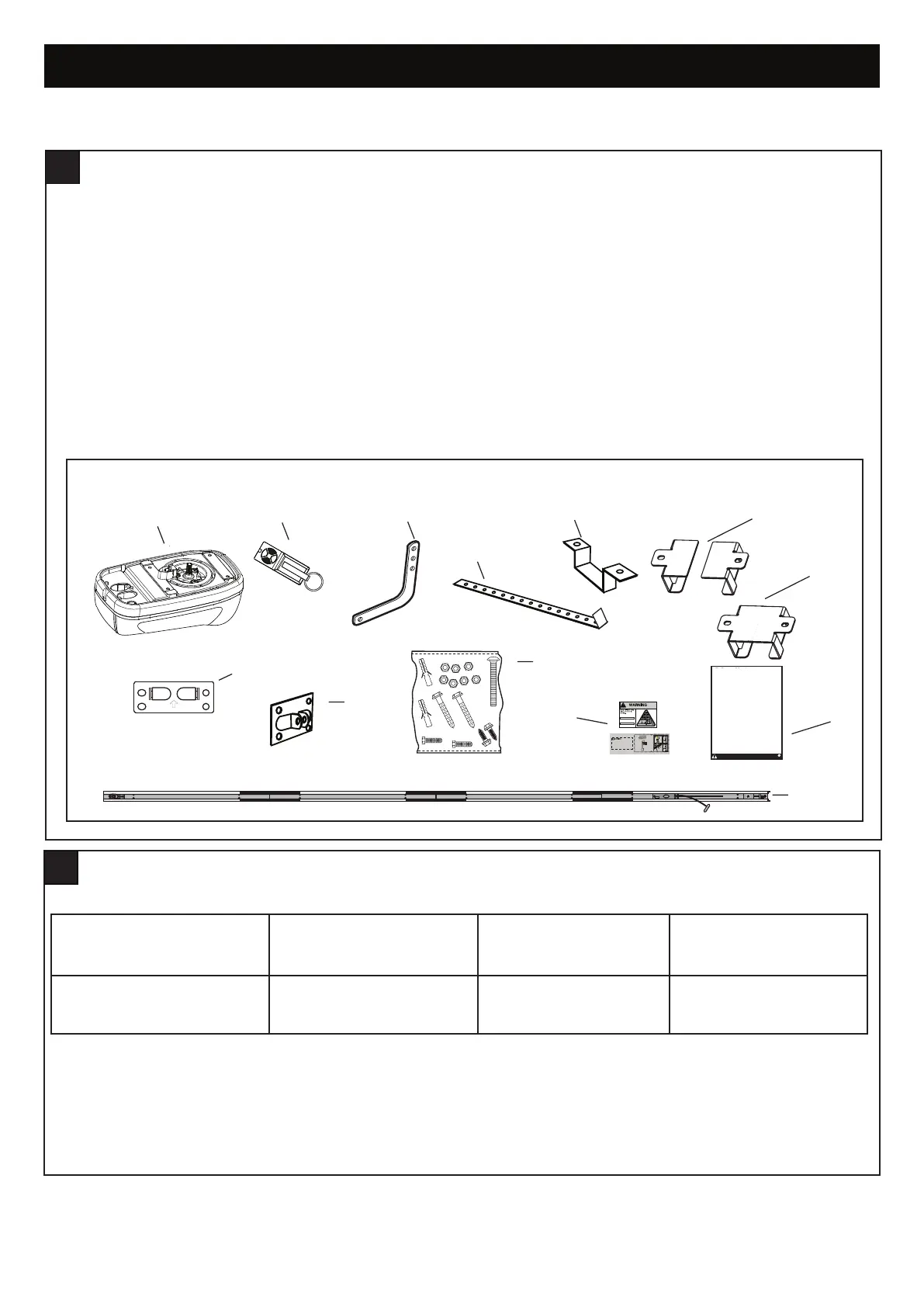

CARTON INVENTORY
2
1. Opener / powerhead
2. HE952 hand held trsansmitter (2)
3. Curved door arm
4. Hanging bracket (2)
5. Rail bracket (2)
6. Lintel bracket
7. Door bracket
8. Hardware bag
9. Rail assembly (chain)
10. Manual
11. Warning labels
12. Rail centre bracket
13. Rail mounting bracket
1
2
3
4
5
6
7
8
9
11
10
OwnersCopy:SAVETHESEINSTRUCTIONSf orfuturereference
MT50EVO
SectionalGarageD oorOpener
InstallationandOperatingInstructions
ThismanualcontainsIMPORTANTSAFETYinformation
DONOTPROCEEDWITHTHEINSTALLATIONB EFOREREADINGTHOROUGHLY
N2966N2966N2966N2966
gomerl in.com.au
gomerl in.co.nz
Manual
12
114A3361
For Service Call
Installation Date
132A2900
RISK OF ENTRAPMENT
Repeat Safety Reverse Test monthly. Door
must reverse on contact with a 40mm obstacle
placed on the floor. Make necessary adjustments.
AUTOMATIC DRIVE:
Keep away from the area of the door since it may
operate unexpectedly.
EMERGENCY RELEASE:
To release, pull down firmly on the red handle.
13
RAIL DIMENSIONS
NOTE: The Ceiling Fixing Point is measured back from the lintel (see item 6 to 7 of “completed installation”). Also allow 300 mm
back from the fixing point for installation of the powerhead (item 7 to 9 of “completed installation”).
3
DOOR HEIGHT:
Sectional Doors
RAIL LENGTH: CEILING FIXING POINTS: OVERALL LENGTH:
Up to 2.2 m 3000 mm segmented 2840 mm 3150 mm
Your garage door opener and rail are packed in a single carton.
