INSTALLATION

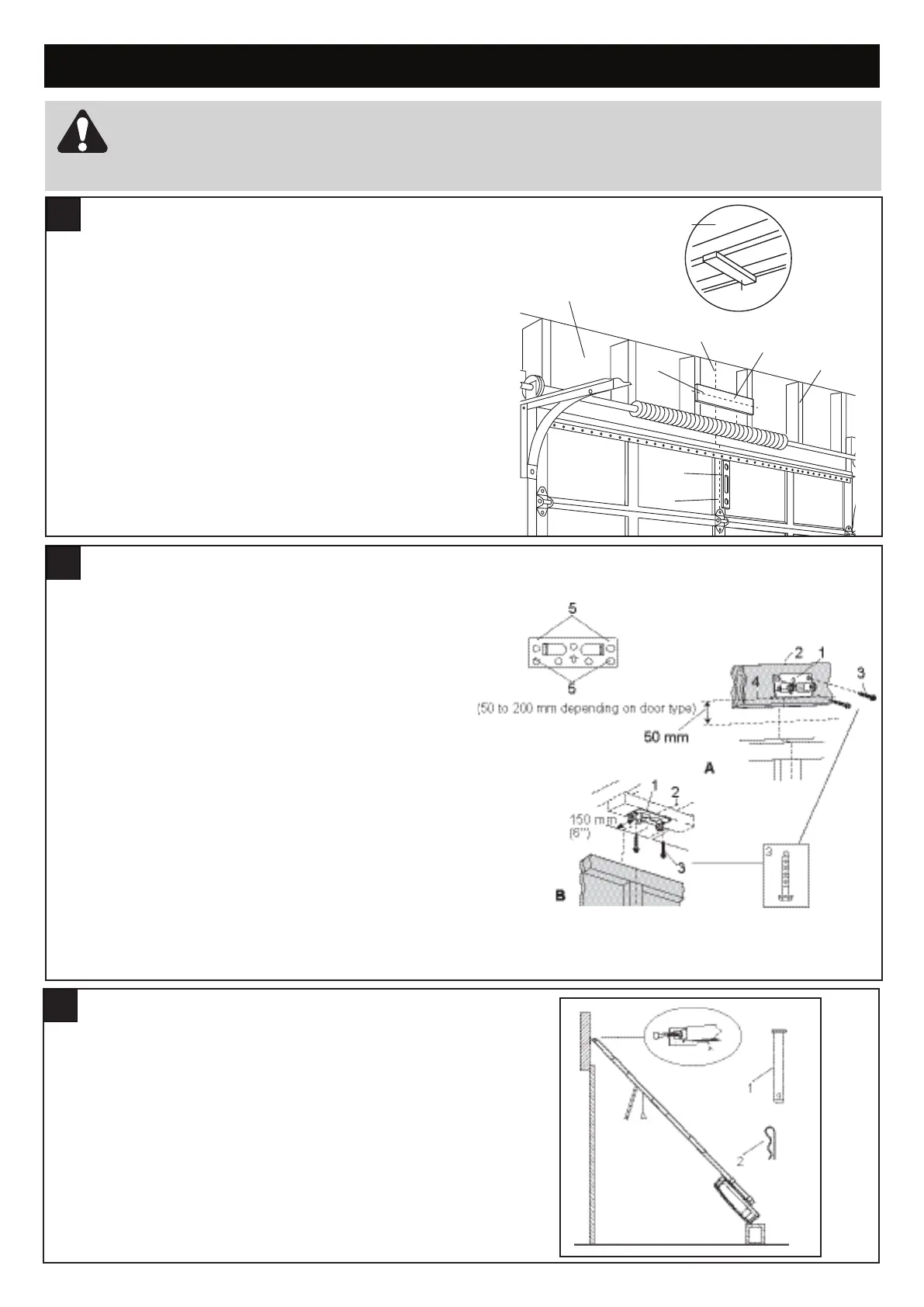

LINTEL BRACKET POSITIONING
11
The lintel bracket must be rigidly fastened to a structural
support of the garage. Reinforce the wall or ceiling with a 40
mm (1-1/2") board if necessary. Failure to comply may result
in improper operation of safety reverse system.
You can attach the lintel bracket either to the lintel wall (1) or to
the ceiling (3). Follow the instructions which will work best for your
particular requirements.
With the door closed, mark the vertical centre line (2) of the garage
door. Extend line onto lintel wall above the door.
Open door to highest point of travel. Draw an intersecting
horizontal line (4) on lintel wall at least 50 mm above high point to
provide travel clearance for top edge of door.
Wear protective goggles when working overhead to protect your eyes from injury.
Disengage all existing garage door locks to avoid damage to the garage door.
To avoid serious personal injury from entanglement, remove all ropes connected to the garage door before
installing the opener.
Header Wall
2
Level
(optional)
1
3
Structural
Supports
Unfinished
Ceiling
4
2
OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET
INSTALL THE LINTEL BRACKET
12
NOTE: Refer to vertical centre and horizontal lines created in
the previous section for proper placement of header bracket.
A. Wall mount: centre the lintel bracket (1) on the vertical centre
line (2) with the bottom edge of the lintel bracket on the
horizontal line (4) (with the arrow pointing toward the ceiling).
Mark all of the lintel bracket holes (5). Drill 4.5 mm (3/16") pilot
holes and fasten the lintel bracket with hex head fixing 6 mm x
50 mm wood screws (3).
B. Ceiling mount: extend vertical centre line (2) onto the ceiling.
Centre the lintel bracket (1) on the vertical mark no more than
150 mm (6") from the wall. Make sure the arrow is pointing
toward the opener. Mark all of the lintel bracket holes (5). Drill
4.5 mm (3/16") pilot holes and fasten the lintel bracket with hex
head fixing 6 mm x 50 mm wood screws (3). For concrete
ceiling mount, use concrete anchors provided.
ATTACH REIL TO LINTEL BRACKET
13
Attach the Rail to the Lintel Bracket
• Position the assembled opener on the garage floor below the
header bracket. Use foam packing material as a protective
base.
NOTE: If the door spring is in the way youʼll need help. Have
someone hold the opener securely on a temporary support to
allow the rail to clear the spring.
• Position the rail bracket against the lintel bracket.
• Align the bracket holes and secure with the 80 mm clevis
pin(1) and R-clip (2).
