Homing KEY MASTER - Er05: Pushrod Mechanism Switch Failure (Right Side)

key master A2.5 Version Manual www.hominggame.com
20
4
Trouble shooting methods：
When the organization fail to return to the bottom of up and
down and micro switch position not in a closed state, pls
check the drive move up and down
of motor and corresponding lines.
When the organization return to the bottom
of up and down and micro switch position in
a closed state, pls check micro switch and corresponding lines.

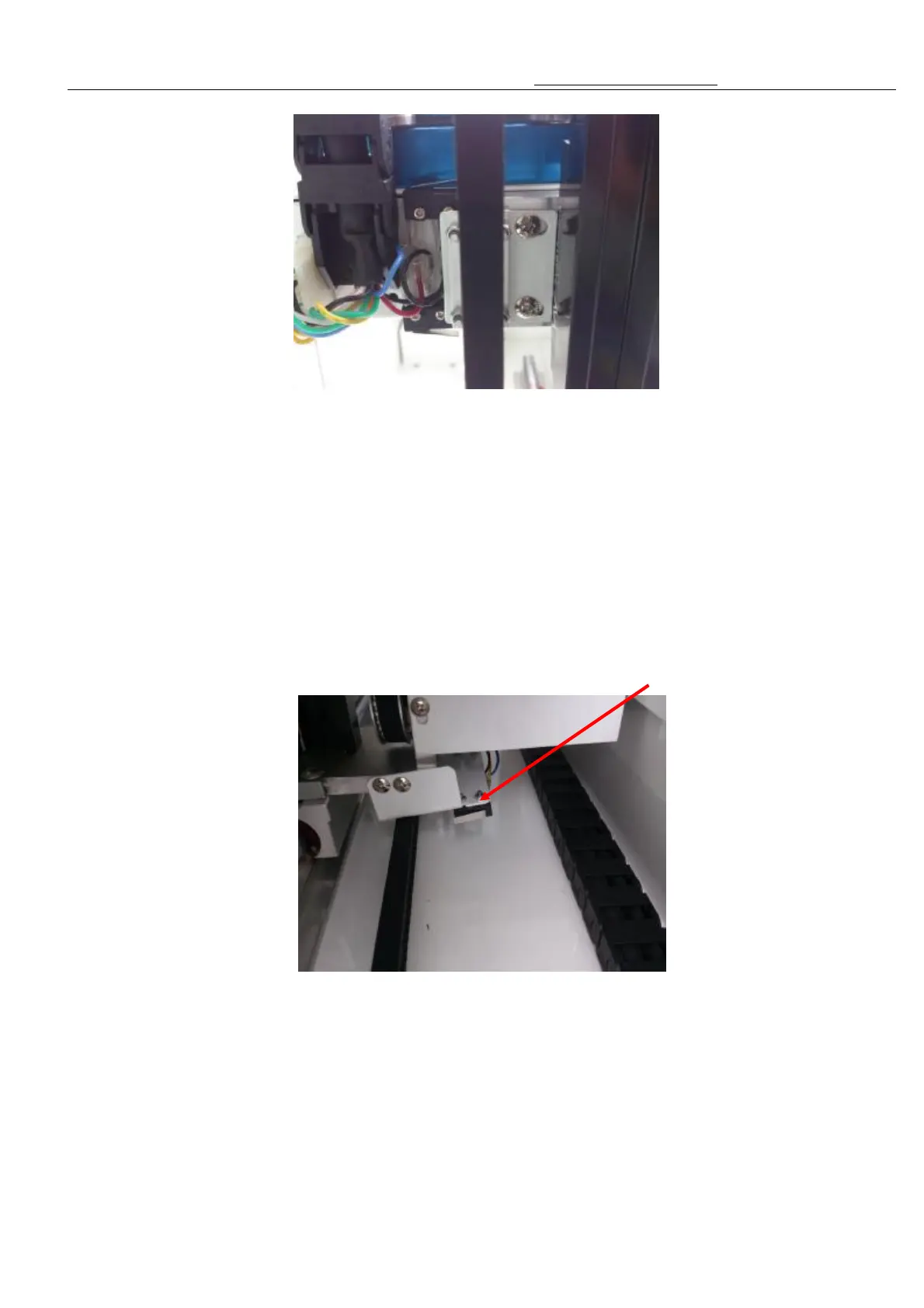

5.When Er05 appears on the digital display, it shows there is failure of the switch on right
side of the pushrod mechanism. As picture 3
3
Trouble shooting methods：When the organization can’
t return to the right, the micro switch
fail to close and the organization doesn’
t move before the failure. Pls check the drive
around the mobile motor and the corresponding lines.
When the organization can’
t return to the right, the micro switch fail to close and the
organization move before the failure，Pls check where does the organization stock on.
When the organization return to the right and micro switch closed state, pls check the
micro switch and corresponding lines.
When the organization return to the right and micro switch closed state, pls check the
