Homing KEY MASTER - Er08;Er09: Electric Eye Failure; Er10: Accounter Connection Failure

key master A2.5 Version Manual www.hominggame.com
22
7
Trouble shooting methods: (1) When the push rod did not run into micro switch behind
, check
the motor and the corresponding lines inside the box.
（2）When the push rod run into micro switch behind, pls Check the micro switch and the
corresponding lines.

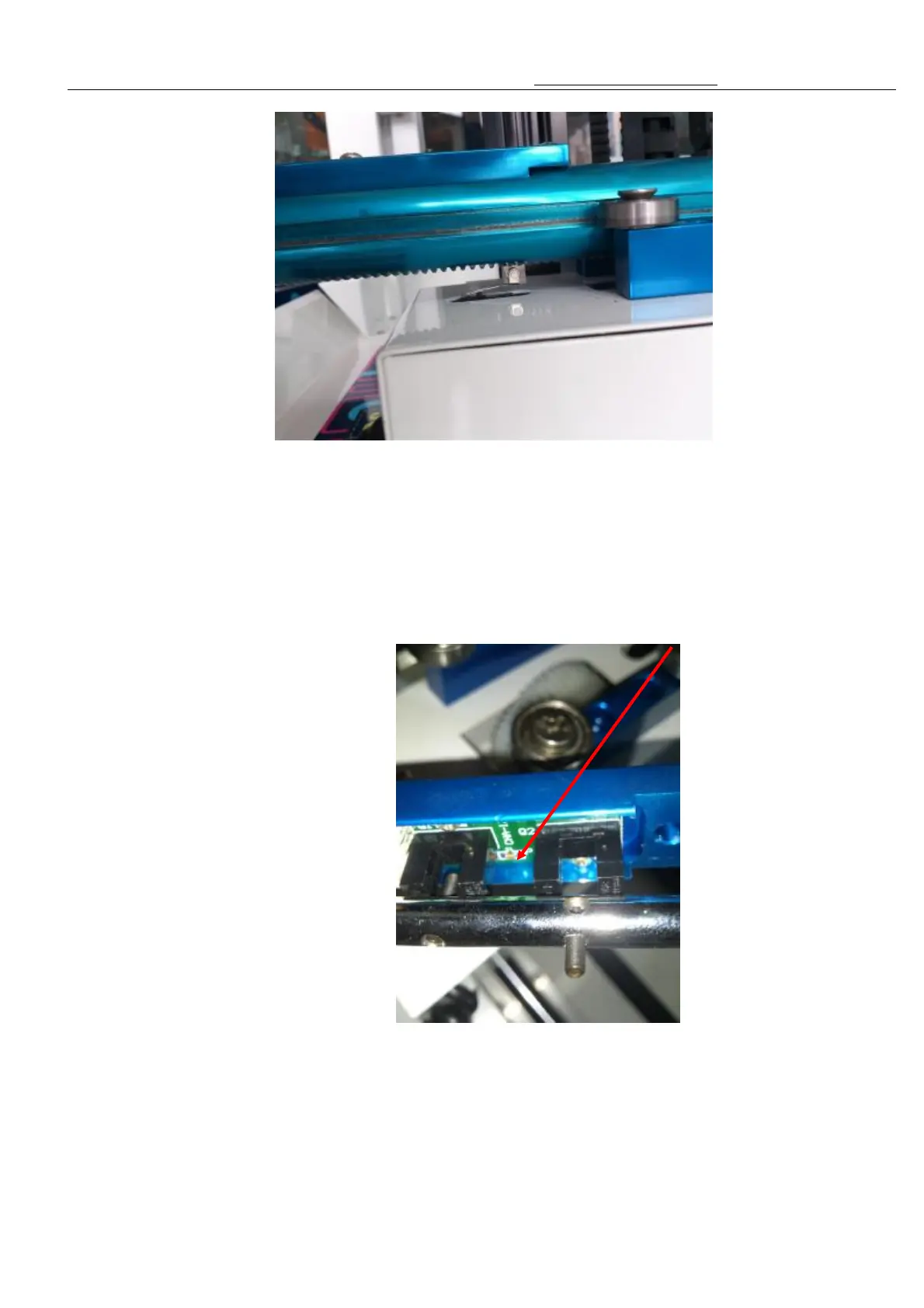

8、When Er08 and Er09 appear on the digital display it shows there is failure of the electric
eye of push rod detected no signal. As picture 8
8
Trouble shooting methods: When the shaft inside the push rod doesn’
t work before the
failure, pls detected push rod inside the motor and corresponding lines.
When the push rod inside the shaft turns before failure, detect magic eye plate and the
corresponding lines.
