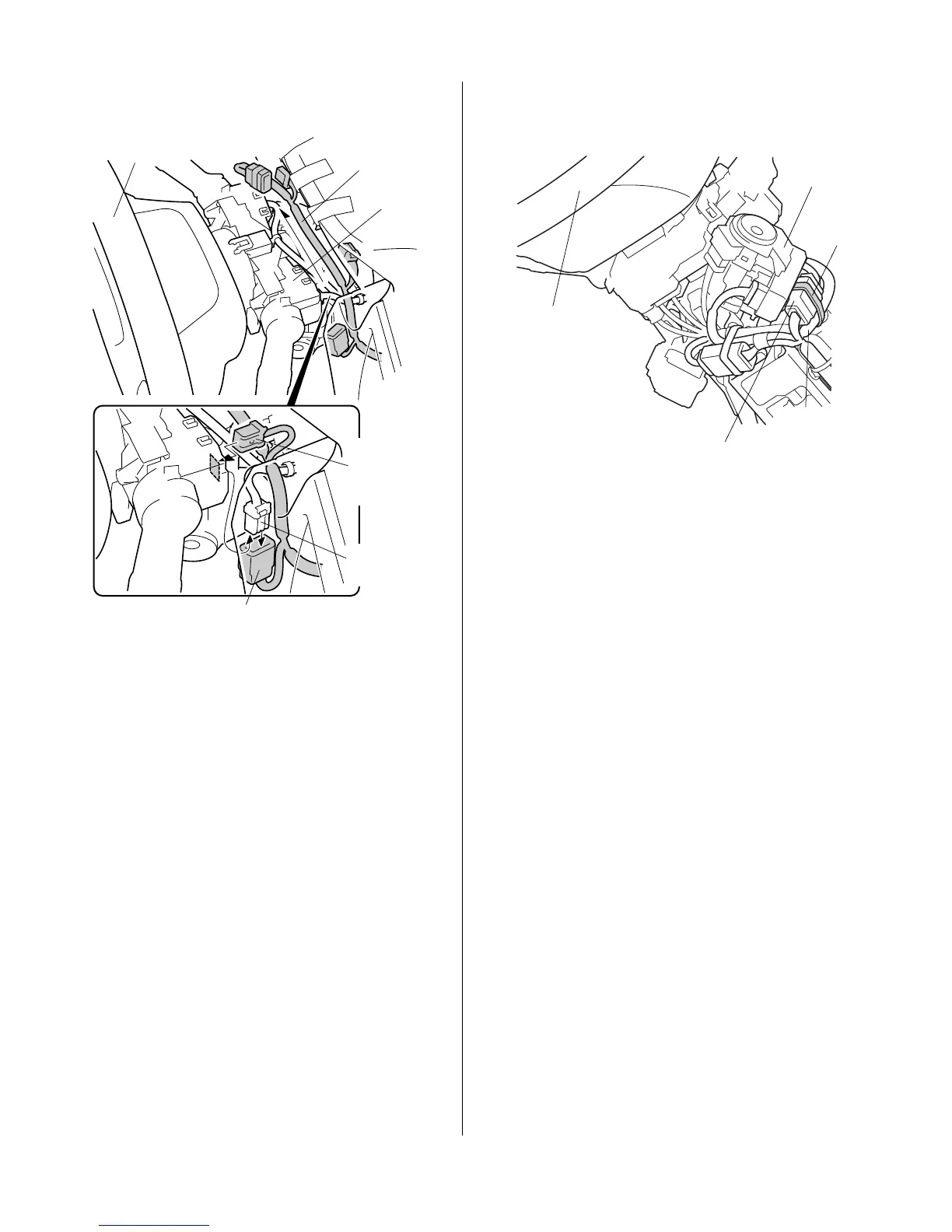

76. Route the engine starter harness across the steering
column area as shown.
Q0N2008AG
VEHICLE
10-PIN
CONNECTOR
ENGINE
STARTER
HARNESS
ENGINE
STARTER
HARNESS
10-PIN
CONNECTOR
STEERING
WHEEL
WIPER
SWITCH
ENGINE STARTER
HARNESS 10-PIN
CONNECTOR
77. Unplug the vehicle 10-pin connector from the wiper
switch, and plug it into the engine starter harness
10-pin connector.
78. Plug the remaining engine starter harness 10-pin
connector into the wiper switch.
79. Secure the 10-pin connectors and engine starter
harness to the vehicle harness with one wire tie.
Q090302BK
IGNITION
SWITCH
WIRE
TIE
10-PIN
CONNECTORS
ENGINE
STARTER
HARNESS
STEERING
WHEEL
