Honda 1998 VT750C User Manual

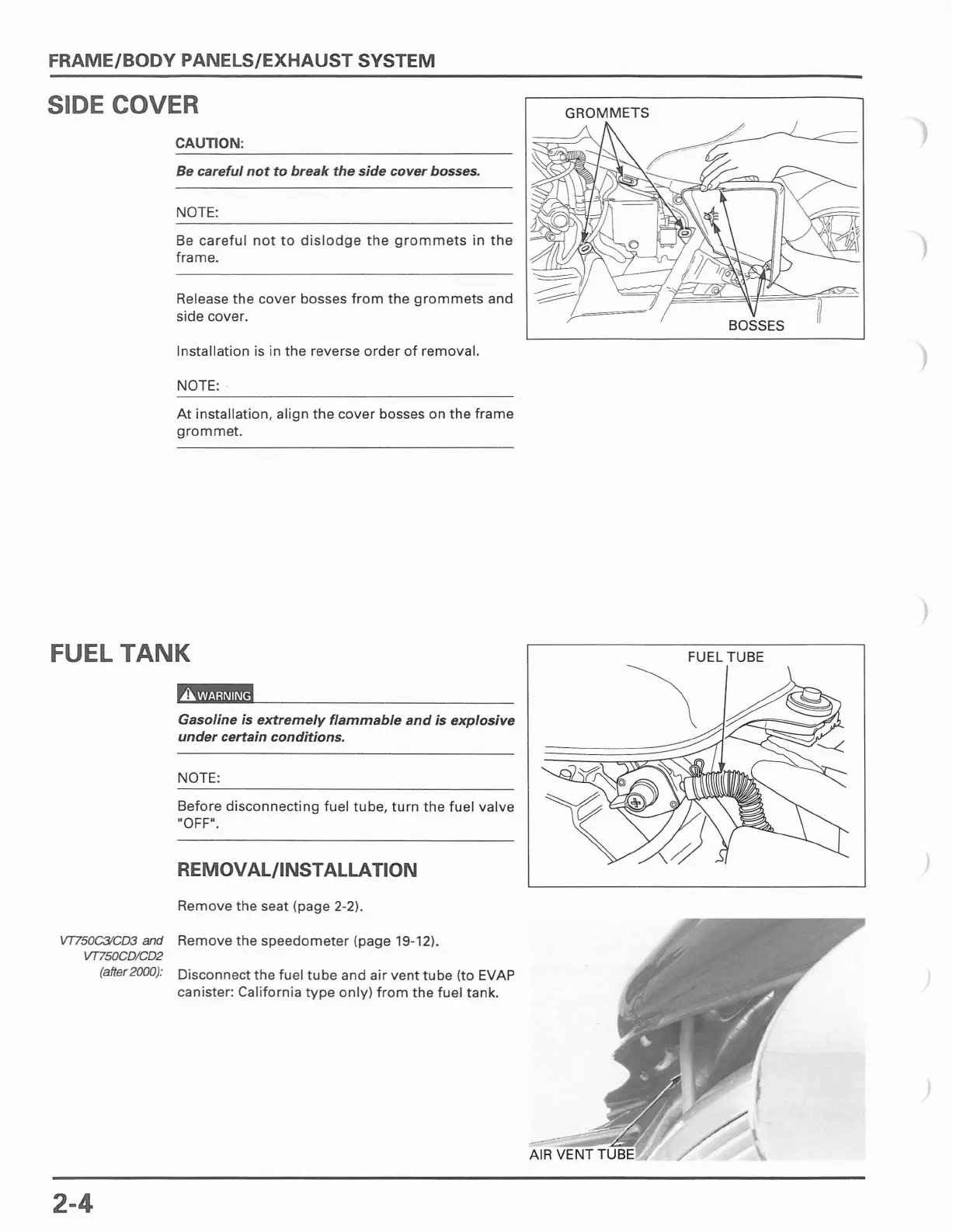

FRAME/BODY PANELS/EXHAUST SYSTEM
SIDE COVER
CAUTION:
Be careful not to break the side cover bosses.
NOTE:
Be
careful not to dislodge the grommets in the
frame.
Release the cover bosses from the grommets and
side cover.
Installation is in
the reverse order of removal.
NOTE:
At installation, align the cover bosses on the frame
grommet.
FUEL TANK
!i!I!IIt _
Gasoline is extremely flammable and is explosive
under certain conditions.
NOTE:
Before disconnecting fuel tube, turn the fuel valve
"OFF".
REMOVAL/INSTALLATION
Remove the seat (page 2-2).
VT750C3IC03 and Remove the speedometer (page 19-12).
VT750CO/C02
(after2000):
Disconnect the fuel tube and air vent tube (to EVAP
canister: California
type only) from the fuel tank.
2-4
BOSSES
FUEL TUBE
\

Honda 1998 VT750C Specifications

General

Displacement	745 cc
Bore x Stroke	79 mm x 76 mm
Compression Ratio	9.0:1
Ignition	CDI
Transmission	5-speed
Final Drive	Shaft
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/90-15
Fuel System	Two 34mm constant-velocity carburetors
Front Suspension	41mm fork; 5.1 inches travel
Rear Suspension	Dual shocks
Front Brakes	Single disc
Seat Height	686 mm
