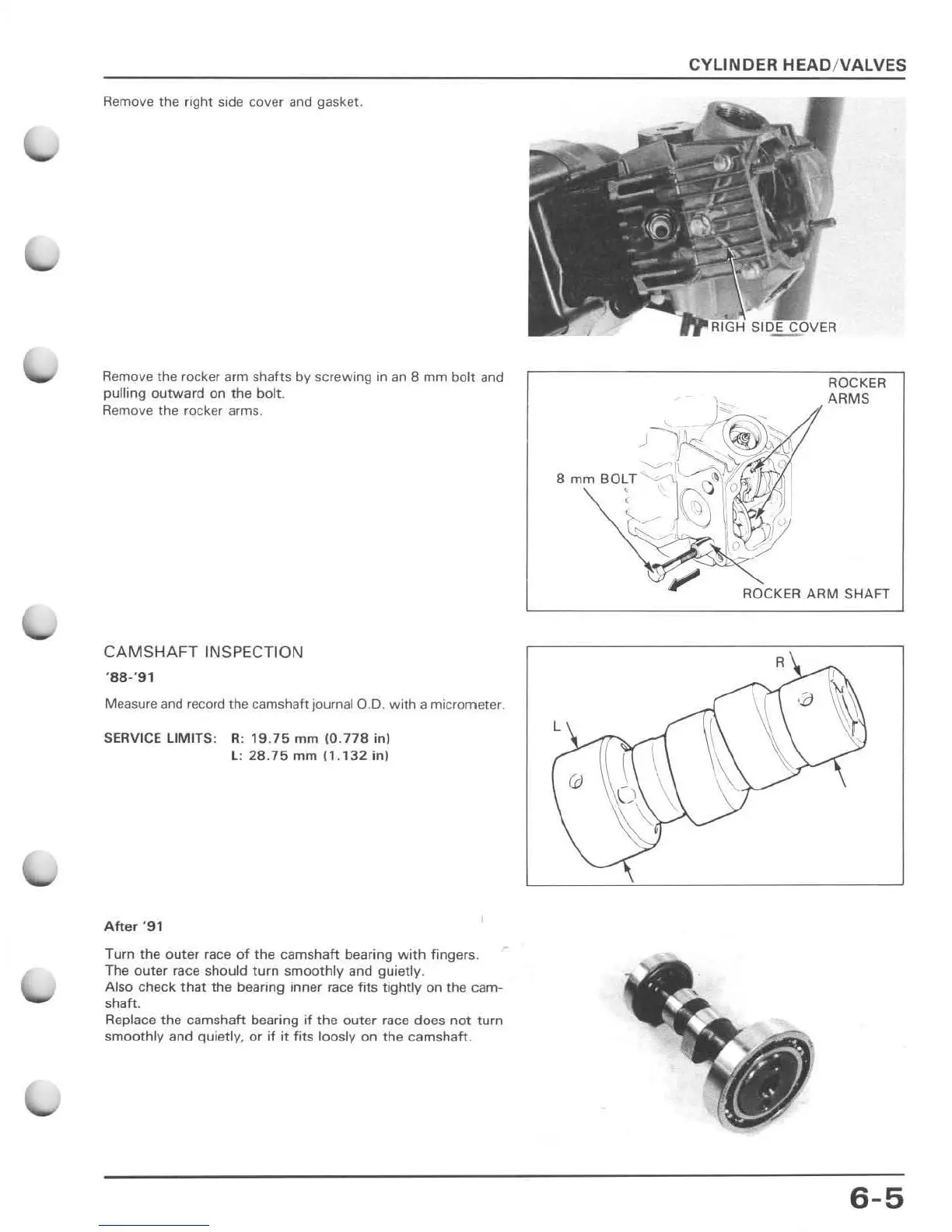

Remove the r ight side cover and gasket.
Remove the rocker arm shafts by screwing in an 8 mm bolt and
pulling outward on the bolt.
Remove the rocker arms.
CAMSHAFT INSPECTION
' 88 -' 91
Measure and record the camshaft journal 0.0. with a micrometer.
SERVICE LIMITS: R: 19.75 mm 10.778 in )
L: 28.75 mm 11,132 in)
After '91
Turn the outer race of the camshaft bearing with fingers .
The outer race shou ld turn smoothly and guietly .
Also check that the bearing inner race fits tightly on the cam--
shaft.
Replace
the camshaft bearing if the oute r race does not turn
smoothly and quietly , or if it fits taosly on the camshaft.
L
CYLINDER HEAD/VALVES
ROCKER
ARMS
ROCKER ARM SHAFT
6-5
