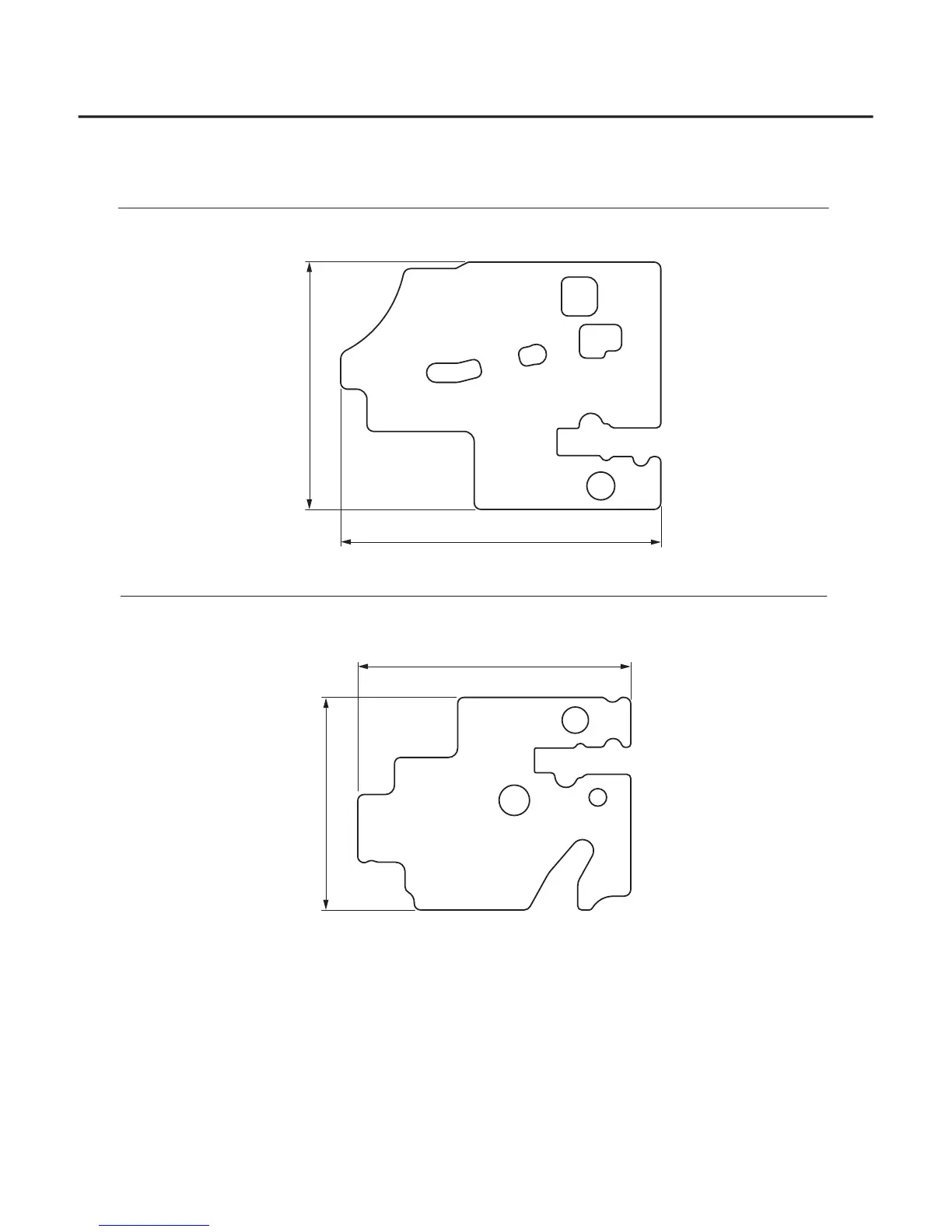

14/02/18
12:54:32
01)
1
1-14
Odyssey
MMC
SM-A
14
61TK830Z
enu
Unit:
mm
(in)
RIGHT-FRONT
FLOOR
FRONT
INSULATOR
735
(28.94)
962
(37.87)
LEFT-FRONT
FLOOR
FRONT
INSULATOR
681
(26.81)
882
(34.72)
Floor
Insulators
Insulator
Sizes
3-66
4491_3.0_enu_10319553_3.0
101
103
Table of Contents
General Information
5
A few Words about Safety
2
Service Information
2
Table of Contents
5
General Information
6
Supplemental Restraint System (SRS)
6
SRS Component Replacement/Inspection after Deployment
8
Battery Terminal Disconnection and Reconnection
9
Identification Number Locations
10
Parts Marking
11
Lift and Support Points
12
Body Specifications/Wheel Alignment
13
Exterior Parts Removal/Installation
14
Front Body Construction
16
Roof and Side Panel Construction
18
Floor and Rear Body Construction
20
Frame [0.6 (0.024)]
21
Door and Bumper Reinforcement Beams, and High-Strength Steel (1500 Mpa) Parts
22
Zinc-Plated Steel Plate Repair
23
High-Strength Steel Sheet Framed Areas
24
Precautions for High-Strength Steel Parts Area Repair
25
Parts Replacement Description
25
MAG Welding Specifications for High-Strength Steel Parts 590 Mpa or Higher (Except 1500 Mpa)
26
High-Strength Steel (1500 Mpa) Parts Welding Specifications
27
Paint Information
28
Paint Information
29
Paint Safety Precautions
29
General
30
Color Chart Paint Specifications
31
Features of Plastic Materials
32
Types and Materials of Exterior Plastic Parts
34
Soft Chipping Guard Primer Coat
35
General Safety Precautions
35
Coating Areas
36
Replacement
37
Front Bulkhead
38
Removal
38
Installation
40
Front Wheelhouse/Damper Housing
42
Removal
42
Installation
46
Front Side Frame/Side Frame Gusset
49
Removal
49
Installation
52
Front Pillar Outer Panel
55
Removal
55
Installation
57
Side Sill Outer Panel
59
Removal
59
Installation
61
Center Pillar Outer Panel
64
Removal
64
Installation
66
Inside Sill, Rear
69
Removal
69
Installation
72
Roof Panel
77
Removal
77
Installation
79
Rear Side Outer Panel
81
Removal
81
Installation
83
Floor Rear Crossmember
87
Removal
87
Installation
89
Third-Seat Pan/Rear Frame
92
Removal
92
Installation
97
Floor Insulators
101
Insulator Locations
101
Insulator Sizes
102
Body Dimensional Drawings
108
Upper Body Measuring Dimensions
109
Front Fender Positions
109
Front Bulkhead Position
110
Engine Compartment
111
Engine Side Mount Position
112
Bulkhead Side Member Position
113
Door Hinge Positions
114
Sliding Door Female Guide and Striker Positions
115
Passenger's Compartment
116
Sliding Door Rail Lower Support Positions
117
Roof Rail Positions
118
Rear Pillar Gutter and Floor Rear Crossmember Positions
119
Windshield and Door Openings
120
Tailgate Opening
121
External Parts Fitting Positions
122
Under Body Measuring Dimensions
123
Front Subframe Position
123
Engine Compartment and Front Floor, under View
124
Front Floor and Rear Floor, under View
125
Inside Sill Positions
126
Frame Repair Chart
127
Repair Chart, Top View
127
Repair Chart, Side View
129
Sealing Areas
132
General
132
Front Wheelhouse and Damper Housing
133
Dashboard Upper and Dashboard Lower
134
Front Floor and Rear Floor
135
Roof Panel and Side Outer Panel
136
Rear Pillar Gutter
137
Rear Wheelhouse
138
Rust-Preventive Treatments
139
General
139
Undercoating Areas
140
Areas to be Covered by Internal Anti-Rust Agents
143
