14/02/18 12:54:32
01) 11-14 Odyssey MMC SM-A 14 61TK830Z enu

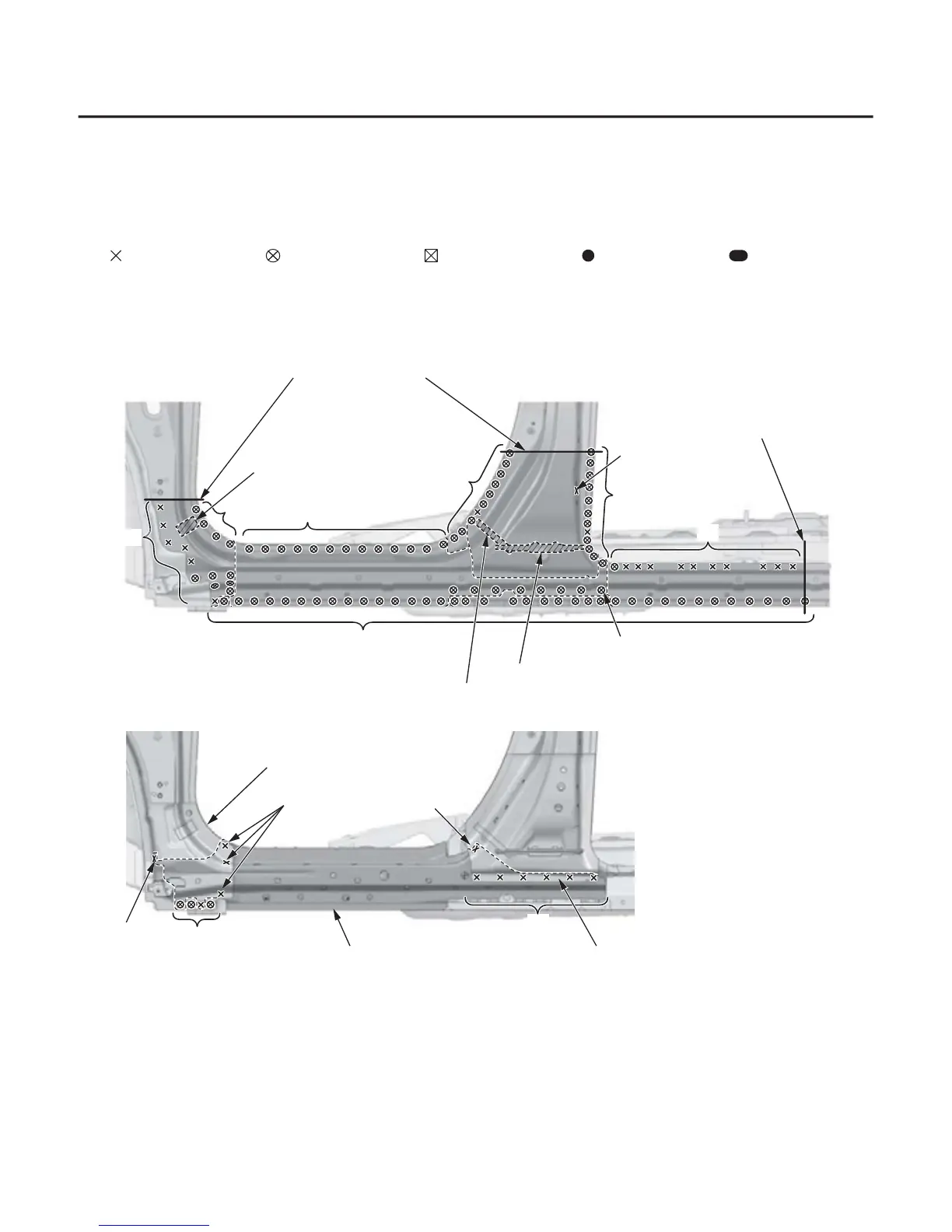

Mass production body welding positions and numbers (Outer panel and side sill reinforcement)
NOTE:
●
Welding symbols
: 2-Plate spot welding; : 3-Plate spot welding; : 4-Plate spot welding; : MAG plug welding; : MAG welding
L=Welding length unit: mm (in)
●
( ): The number of welds
●
The figure shows the size of side sill outer panel repair part.
Top end positions of the side
sill outer panel repair part
Rear edge position of the side
sill outer panel repair part
CENTER PILLAR OUTER SEPARATOR A
FRONT PILLAR OUTER
SEPARATOR (Adhesive type)
(
(11)(11)
(11)
(13)
(38)
(4)
(10)
(12)
CENTER PILLAR STIFFENERSIDE SILL
REINFORCEMENT
(1)
(1)
CENTER PILLAR OUTER SEPARATOR B
(Adhesive type)
(8)
With outer panel removed
FRONT PILLAR LOWER STIFFENER
(3)
(1)
(4)
(6)
(cont'd)
Side Sill Outer Panel
Removal
3-23
4469_4.0_enu_10319458_4.0
To Next Page
