Adjusting the Rear Brake Lever
Freeplay

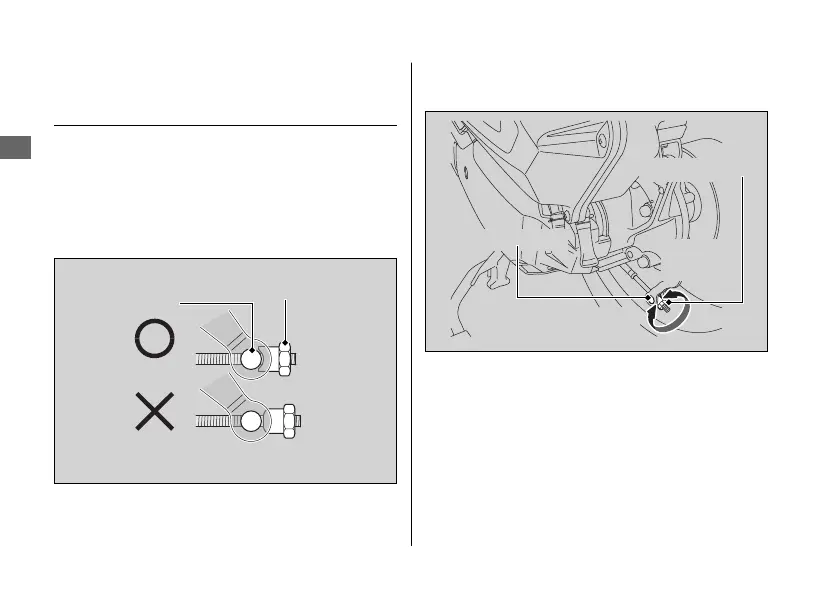

Adjust the freeplay of the brake lever with the
front wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
If proper adjustment cannot be obtained by
this method, see your dealer.
1.
Adjust by turning the rear brake adjusting
nut a half-turn at a time.
2.
Apply the brake several times and check
for free wheel rotation after the brake
lever is released.
20200227172533_31K0WA000_enu_BOOK Page 93 Thursday, February 27 2020 17:31:25 JST
Brakes u Adjusting the Rear Brake Lever Freeplay
Maintenance
90
Adjusting nut
Brake arm pin
Brake arm pin
Increase
Freeplay
Decrease
Freeplay
Adjusting nut
