3.

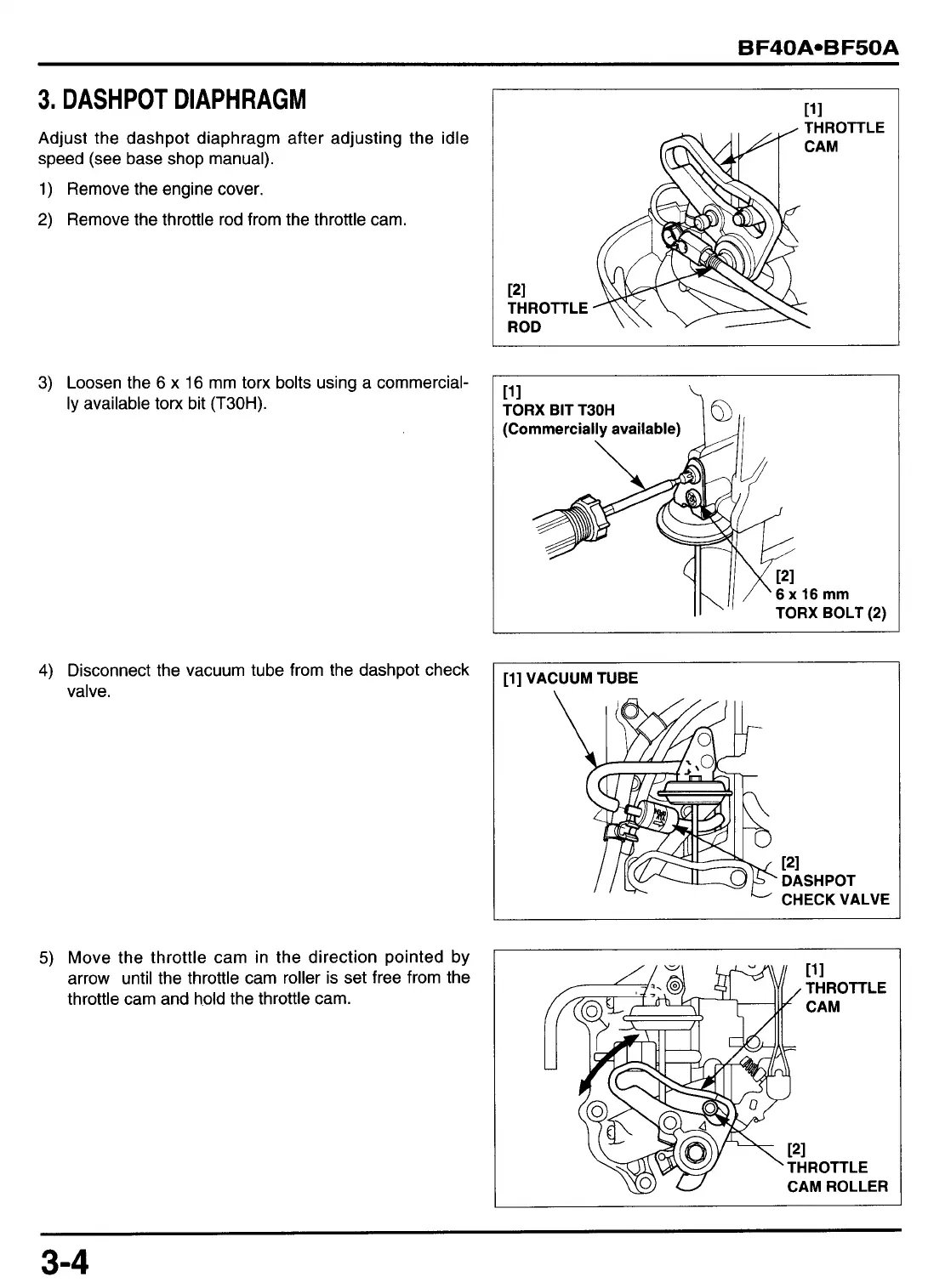

DASHPOT DIAPHRAGM
Adjust the dashpot diaphragm after adjusting the idle
speed (see base shop manual).
1)
Remove the engine cover.
2)
Remove the throttle rod from the throttle cam.
3) Loosen the
6
x
16
mm torx bolts using a commercial-
ly available torx bit (T30H).
4)
Disconnect the vacuum tube from the dashpot check
valve.
5)
Move the throttle cam in the direction pointed by
arrow until the throttle cam roller is set free from the
throttle cam and hold the throttle cam.
121
THROTTLE
ROD
11
1
TORX BIT T30H
(Commercially available)
I
[I] VACUUM TUBE
PI
DASHPOT
CHECK VALVE
CAM ROLLER
3-4
