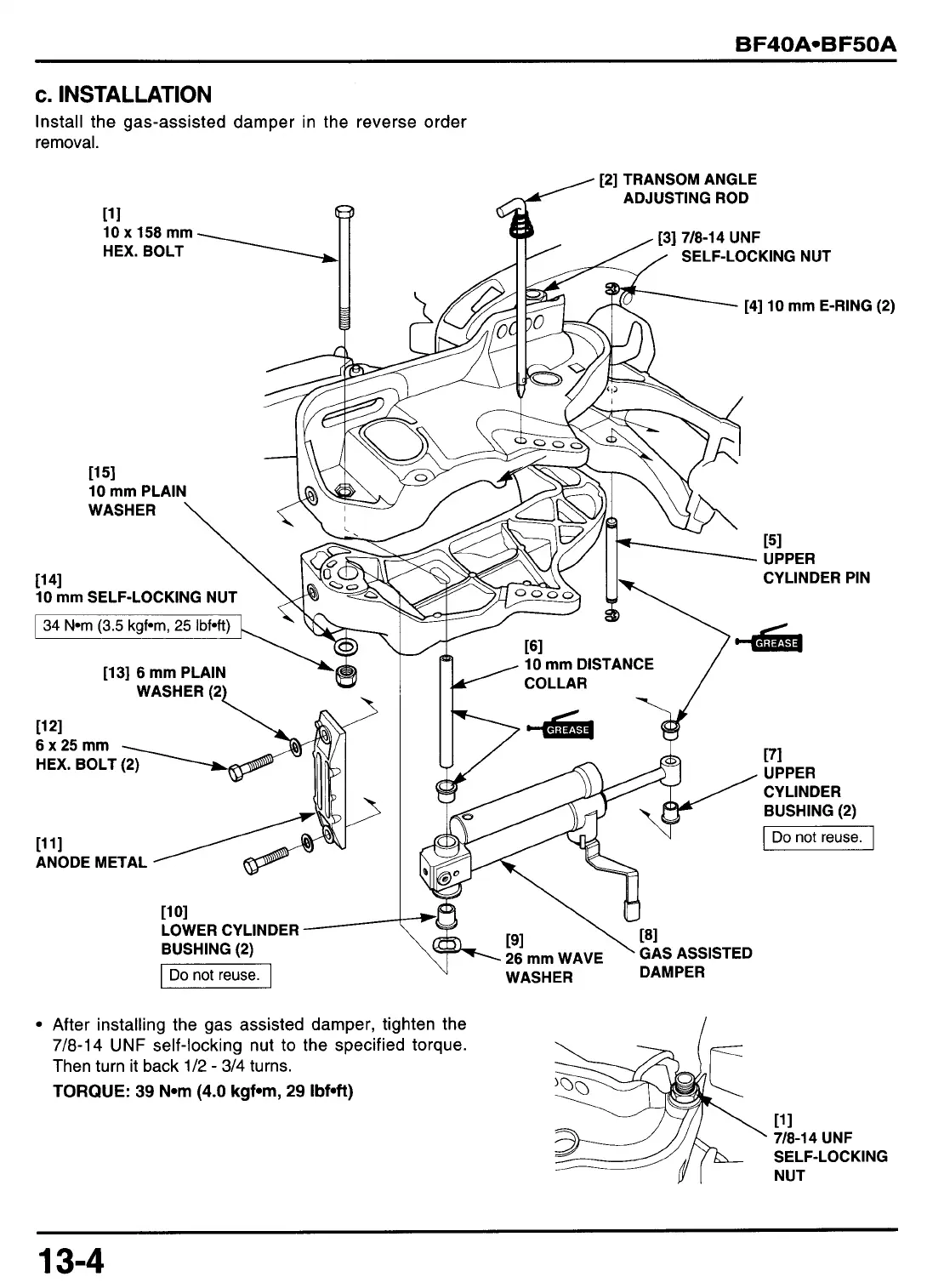

c. INSTALLATION
Install the gas-assisted damper in the reverse order
removal.
[2] TRANSOM ANGLE
ADJUSTING ROD
SELF-LOCKING NUT
[4] 10
mm E-RING
CYLINDER PIN
ANODE METAL
11 01
LOWER CYLINDER
BUSHING (2)
I Do not reuse. I
II /
DAMPER
171
UPPER
CY LlNDER
BUSHING (2)
I Do not reuse. I
After installing the gas assisted damper, tighten the
7/8-14 UNF self-locking nut to the specified torque.
Then turn it back
1/2 - 3/4 turns.
TORQUE: 39 Nom (4.0 kgfom, 29 Ibfoft)
11 1
7/8-14 UNF
SELF-LOCKING
NUT
