BF40AoBF50A

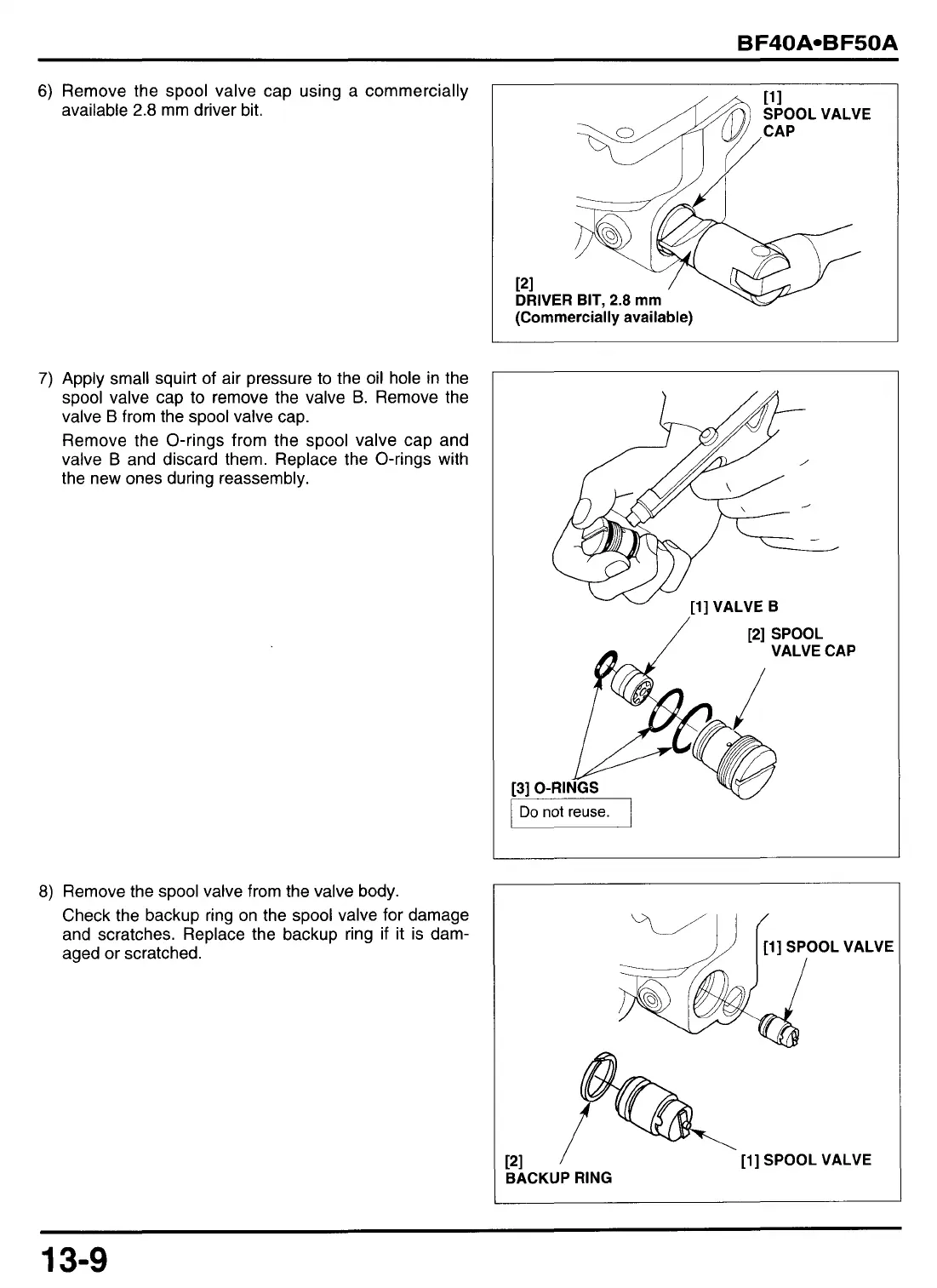

6) Remove the spool valve cap using a commercially
available
2.8 mm driver bit.
7) Apply small squirt of air pressure to the oil hole in the
spool valve cap to remove the valve
B. Remove the
valve
B from the spool valve cap.
Remove the O-rings from the spool valve cap and
valve
B and discard them. Replace the O-rings with
the new ones during reassembly.
PI
DRIVER BIT, 2.8 mm
I (Commercially available)
[l] VALVE B
/
/ 121 SPOOL
1 ~onot reuse. 1
8) Remove the spool valve from the valve body.
[l] SPOOL VALVE
Check the backup ring on the spool valve for damage
and scratches. Replace the backup ring if it is dam-
aged or scratched.
[l] SPOOL VALVE
1 kKU/pRlNG
13-9
