4.
Loosen the axle pinch bolt and front axle
shaft.
5.
Support your motorcycle securely and
raise the front wheel off the ground using
a maintenance stand or a hoist.
6.
Remove the front axle shaft, front wheel
and side collars.
Installation
1.
Attach the right and left side collars in
their original locations on the wheel.
2.
On the left side, place the wheel between
the fork legs and insert the front axle shaft
to the end, through the left fork leg and
wheel hub.
3.
Tighten the axle shaft.
Torque: 40 lbf·ft (54 N·m, 5.5 kgf·m)
20160902115018_31MJWB100_enu_BOOK Page 100 Friday, September 02 2016 11:57:25 JST
Tire Puncture u Removing Wheels
Troubleshooting
97
Continued

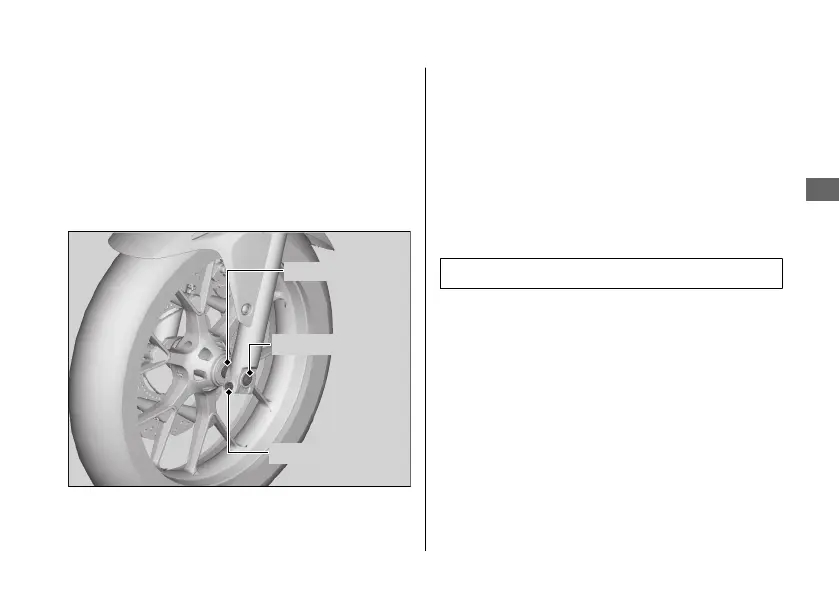

Axle pinch bolt
