Tyre Puncture u Removing Wheels
89
continued
Troubleshooting
When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
❙

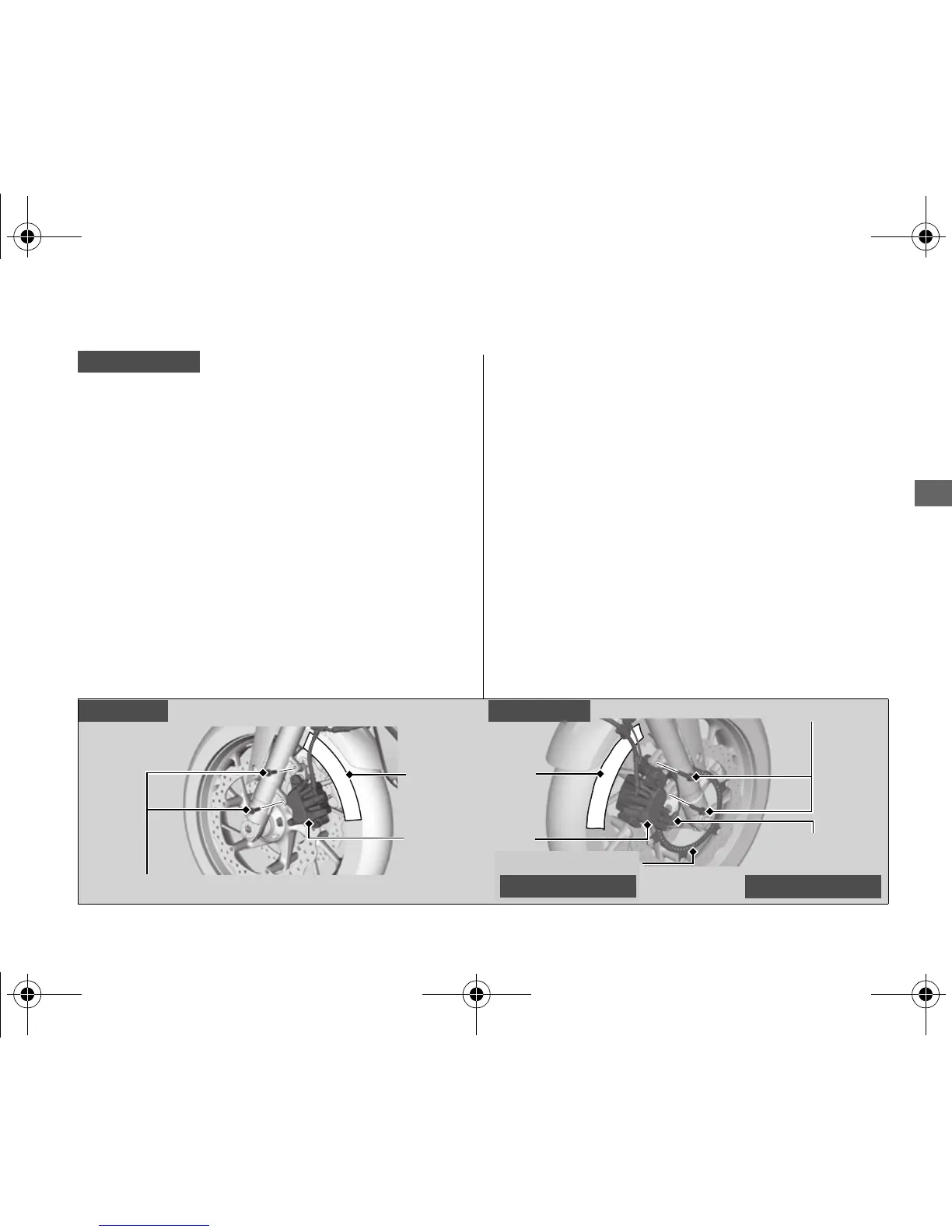

Front Wheel
Removal
1. Park on a firm, level surface.
2. Cover both sides of the front wheel and
brake calipers with protective tape or
cloth.
3. On the right side, remove the mounting
bolts and remove the brake caliper.
4. On the left side, remove the mounting
bolts and remove the brake caliper.
u Support the brake calipers so that it
doesn’t hang from the brake hose. Do
not twist the brake hose.
u Avoid getting grease, oil, or dirt on the
disc or pad surfaces.
u Do not pull the brake lever while the
brake caliper is removed.
u Take care to prevent the brake caliper
from scratching the wheel during
removal.
CB650FA only
Left side
Right side
Wheel speed
sensor
CB650FA only
Pulser ring
CB650FA only
Mounting bolts
Mounting bolts
Tape or cloth
Brake calipers
