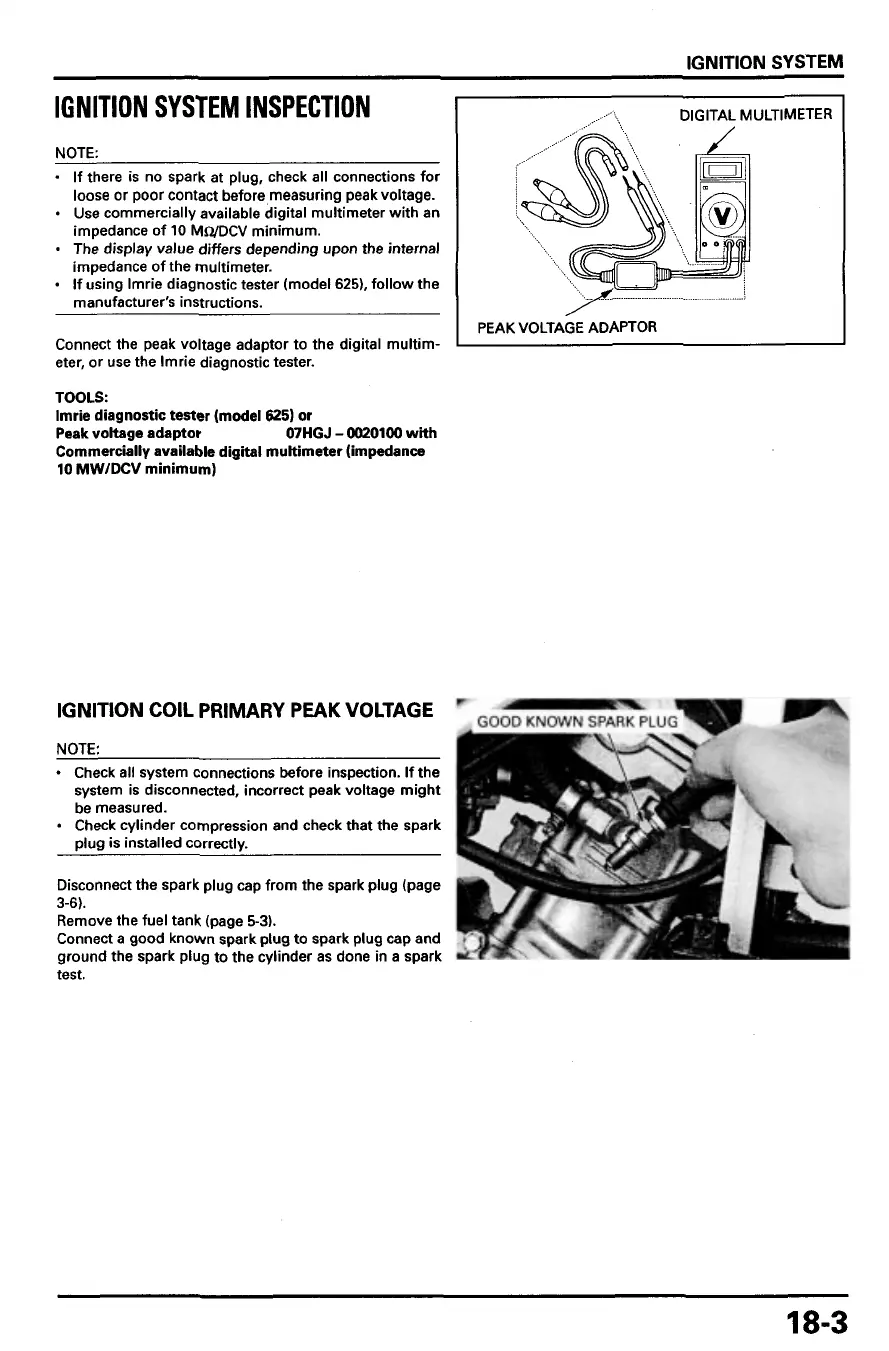

IGNITION SYSTEM
IGNITION SYSTEM INSPECTION
NOTE:
- If there is no spark at plug, check all connections for
loose or poor contact before measuring peak voltage.
Use commercially available digital multimeter with an
impedance of
10 Mn/DCV minimum.
The display value differs depending upon the internal
impedance
of the multimeter.
If using lmrie diagnostic tester (model
625), follow the
manufacturer's instructions.
Connect the peak voltage adaptor to the digital multim-
eter, or
use the lmrie diagnostic tester.
TOOLS:
lmrie diagnostic tester (model 625) or
Commercially available digital multimeter (impedance
10 MWlDCV minimum)
Peakvoltageadaptor
07HGJ - 0020100 with
IGNITION COIL PRIMARY PEAK VOLTAGE
NOTE:
* Check all system connections before inspection. If the
system is disconnected, incorrect peak voltage might
be measured.
Check cylinder compression and check that the spark
plug is installed correctly.
I DIGITAL M ULTIMETER
I PEAK VOLTAGE ADAPTOR
Disconnect the spark plug cap from the spark plug (page
Remove the fuel tank (page
53).
Connect a good known spark plug to spark plug cap and
ground the spark plug to the cylinder as done in a spark
test.
3-6).
