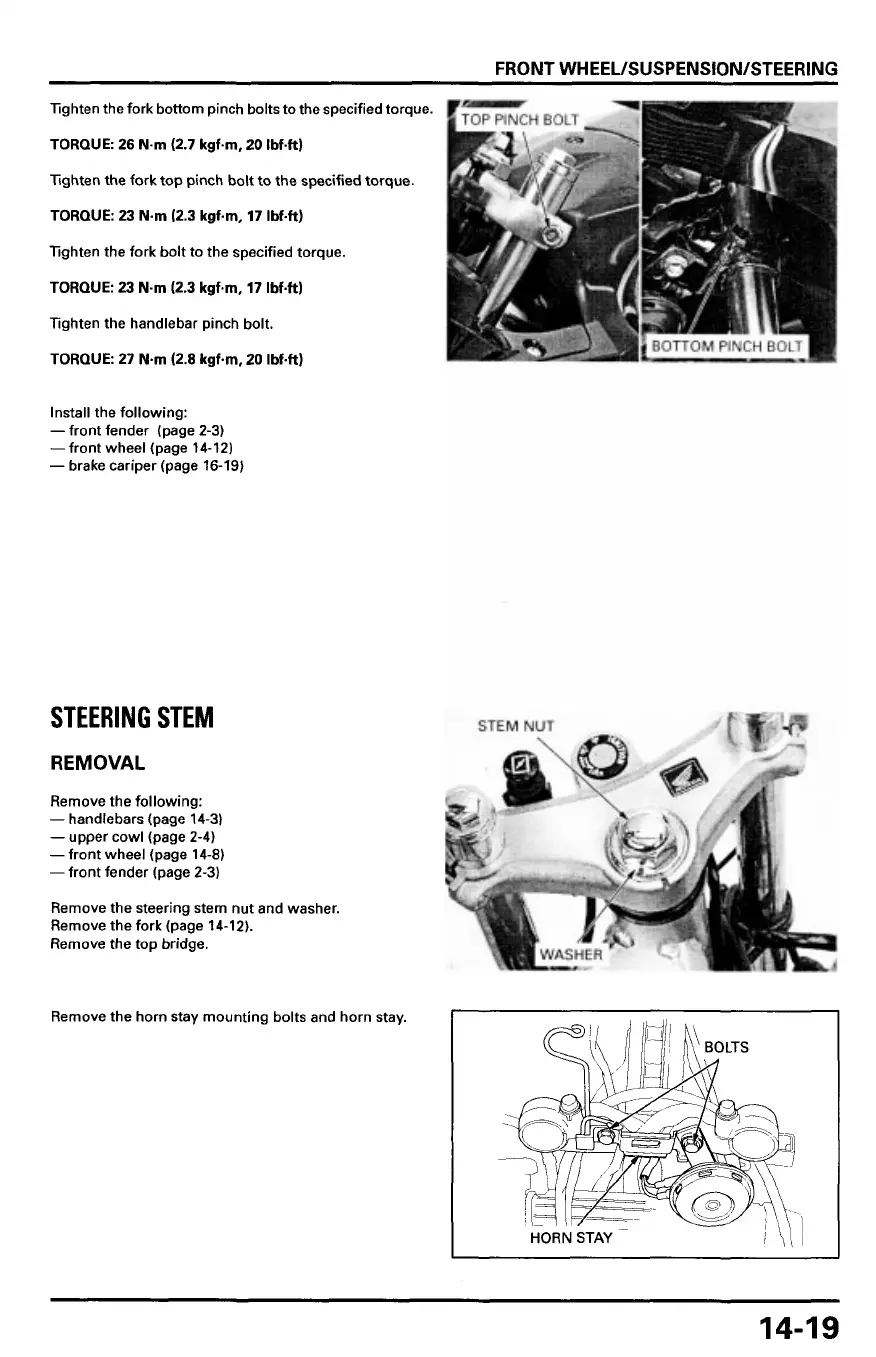

FRONT WHEEL/SUSPENSION/STEERlNG
Tighten the fork bottom pinch bolts to the specified torque.
TORQUE 26 Nm (2.7 kgfm, 20 Ibf.ft)
Xghten the fork top pinch bolt to the specified torque.
TORQUE: 23 Nm (2.3 kgfm, 17 Ibf4-t)
Tighten the fork bolt to the specified torque.
TORQUE: 23 Nm (2.3 kgfm, 17 Ibf4t)
Tighten the handlebar pinch bolt.
TORQUE 27 N.rn (2.8 kgfm, 20 Ibf4t)
Install the following:
-front fender (page
2-3)
-front wheel (page 14-12)
-brake cariper (page 16-19)
STEERING STEM
REMOVAL
Remove the following:
- handlebars (page 14-3)
-upper cowl (page 2-4)
-front wheel (page 14-8)
-front fender (page 2-3)
Remove the steering stem nut and washer.
Remove the fork (page
14-12).
Remove the top bridge.
Remove the horn stay mounting bolts and horn stay.
14-19

Honda CBR150R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, single-cylinder
Displacement	149.16 cc
Bore x Stroke	57.3 mm x 57.8 mm
Compression Ratio	11.3:1
Transmission	6-speed
Fuel System	PGM-FI (Programmed Fuel Injection)
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Disc
Rear Tire	130/70-17
Fuel Tank Capacity	12 liters
Curb Weight	139 kg
Max Power	17.1 PS @ 9, 000 rpm
Max Torque	14.4 Nm @ 7, 000 rpm
Rear Suspension	Monoshock
Front Tire	100/80-17
Length x Width x Height	1, 983 x 700 x 1, 077 mm
