TRANSMISSION

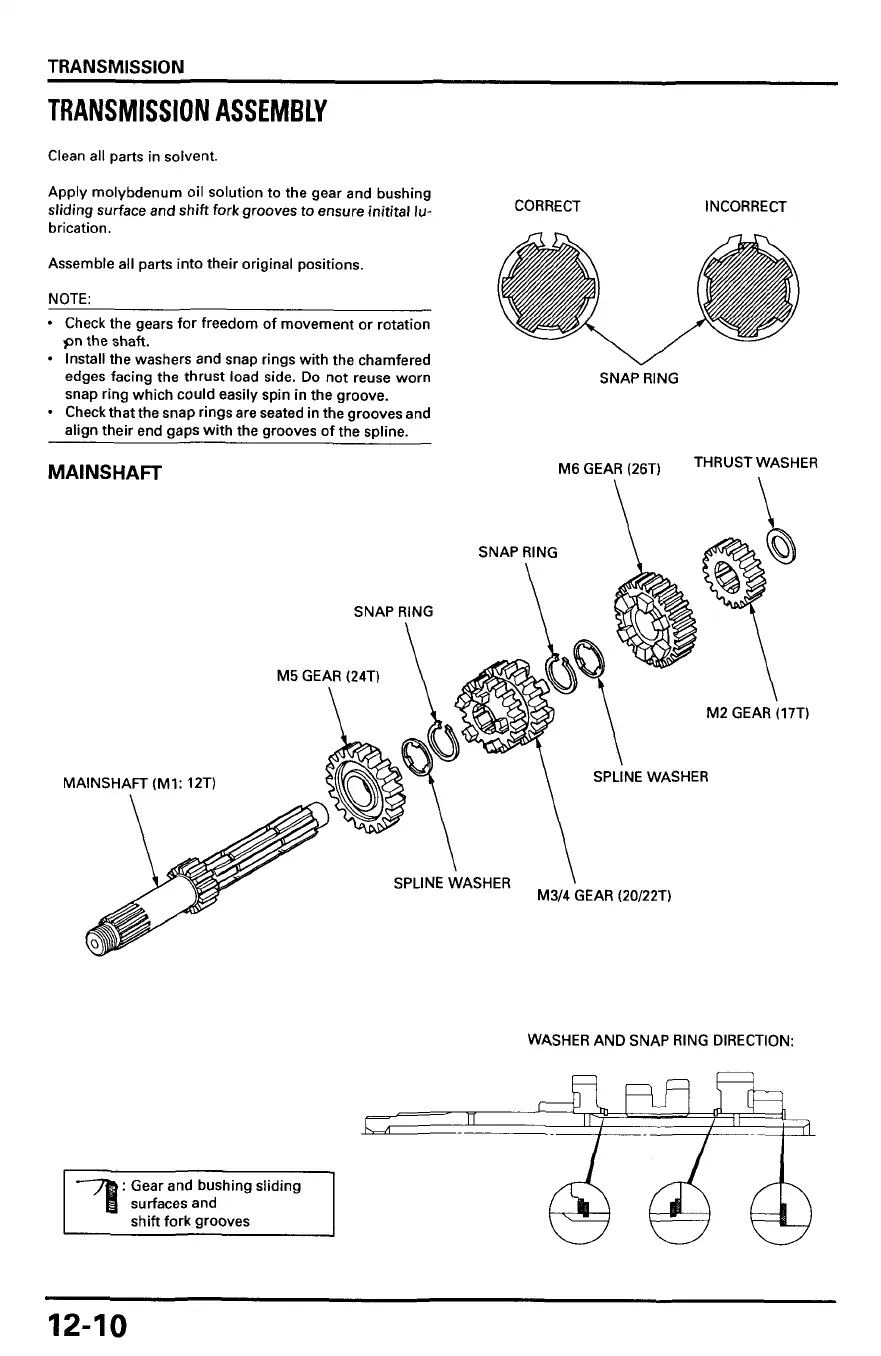

TRANSMISSION ASSEMBLY
Clean all parts in solvent.
Apply molybdenum oil solution to the gear and bushing
sliding surface and shift fork grooves
to ensure initital lu-
brication.
Assemble all parts into their original positions.
NOTE:
* Check the gears for freedom of movement or rotation
pn the shaft.
Install the washers and snap rings with the chamfered
edges facing the thrust load side. Do not reuse worn
snap ring which could easily spin in the groove.
Check that the snap rings are seated in the grooves and
align their end gaps with the grooves of the spline.
CORRECT
INCORRECT
SNAP
RING
MAINSHAFT M6 GEAR (26T) THRUST WASHER
\
SPLINE WASHER
SPLINE WASHER
M3/4 GEAR (20/22T)
WASHER AND SNAP RING DIRECTION:
: Gear and bushing sliding
surfaces and
12-10

Honda CBR150R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, single-cylinder
Displacement	149.16 cc
Bore x Stroke	57.3 mm x 57.8 mm
Compression Ratio	11.3:1
Transmission	6-speed
Fuel System	PGM-FI (Programmed Fuel Injection)
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Disc
Rear Tire	130/70-17
Fuel Tank Capacity	12 liters
Curb Weight	139 kg
Max Power	17.1 PS @ 9, 000 rpm
Max Torque	14.4 Nm @ 7, 000 rpm
Rear Suspension	Monoshock
Front Tire	100/80-17
Length x Width x Height	1, 983 x 700 x 1, 077 mm
