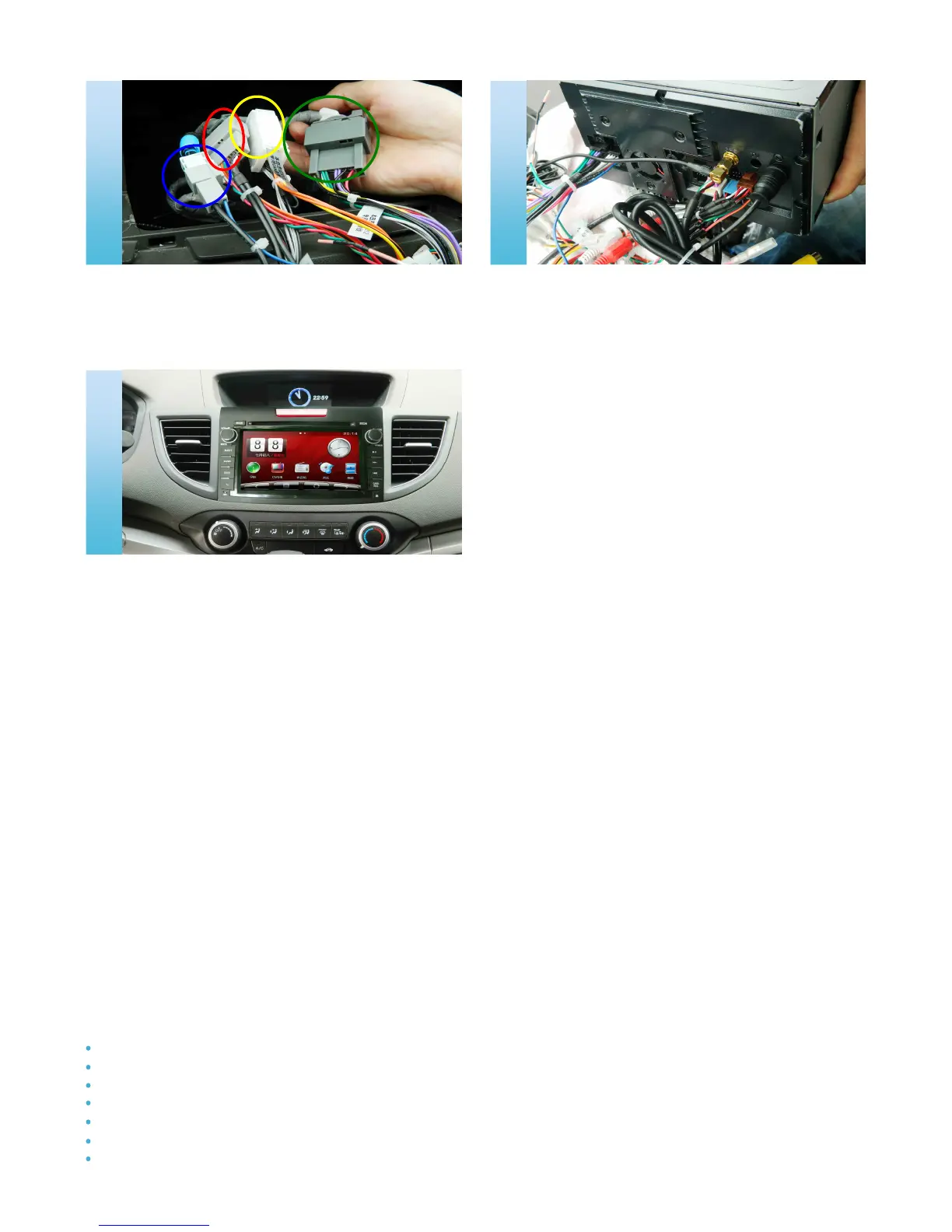

Our dedicated power line connect to main power
of original car (bule circle part connect to
original car antenna, red circal part is CAN,
yellow circle part connect to AUX wire, green
circle part connect to main power cable).
Picture show our dedicated power line connect
to out machine Install our machine and original
Air conditioning outlet device.
The diagram after installation finished.
17 18
19
Precaution:
Ensure the installation and mending is operated by professional staff.
Installation or mending by yourself may cause electric shock or other dangers, and the unit may be damaged to lose warranty.
When the connector is plugged,take care of the coupler plug. Do not pull the cable by force, or it may can not work.
Ensure to use the cables provided by factory, or it may cause fire and smoke to damage the navigation or car itself.
Please do not cut any useless wires as they are kept for future using. Ensure to protect the port with insulating tape.
In order to avoid the short circuit, please disconnect the negative pole of car battery before installing.
Ensure all the cables are scheduled well,in order to avoid effecting parts in motion like steering wheel control, geaririever, braker, slip seat, door,etc.
Install GPS Antenna：
：：
：
GPS antenna may be installed inside the car such as on the dashboard or coat rack; it may be also installed outside the bar such as the top of car
or on the trunk lid.
GPS antenna must have an open “visual field” towards the sky. If the glass of the car window is equipped with explosion-proof film or heat insulation
film, it might greatly reduce the receiving strength; in that case it’s advised to install the GPS antenna outside the car.
