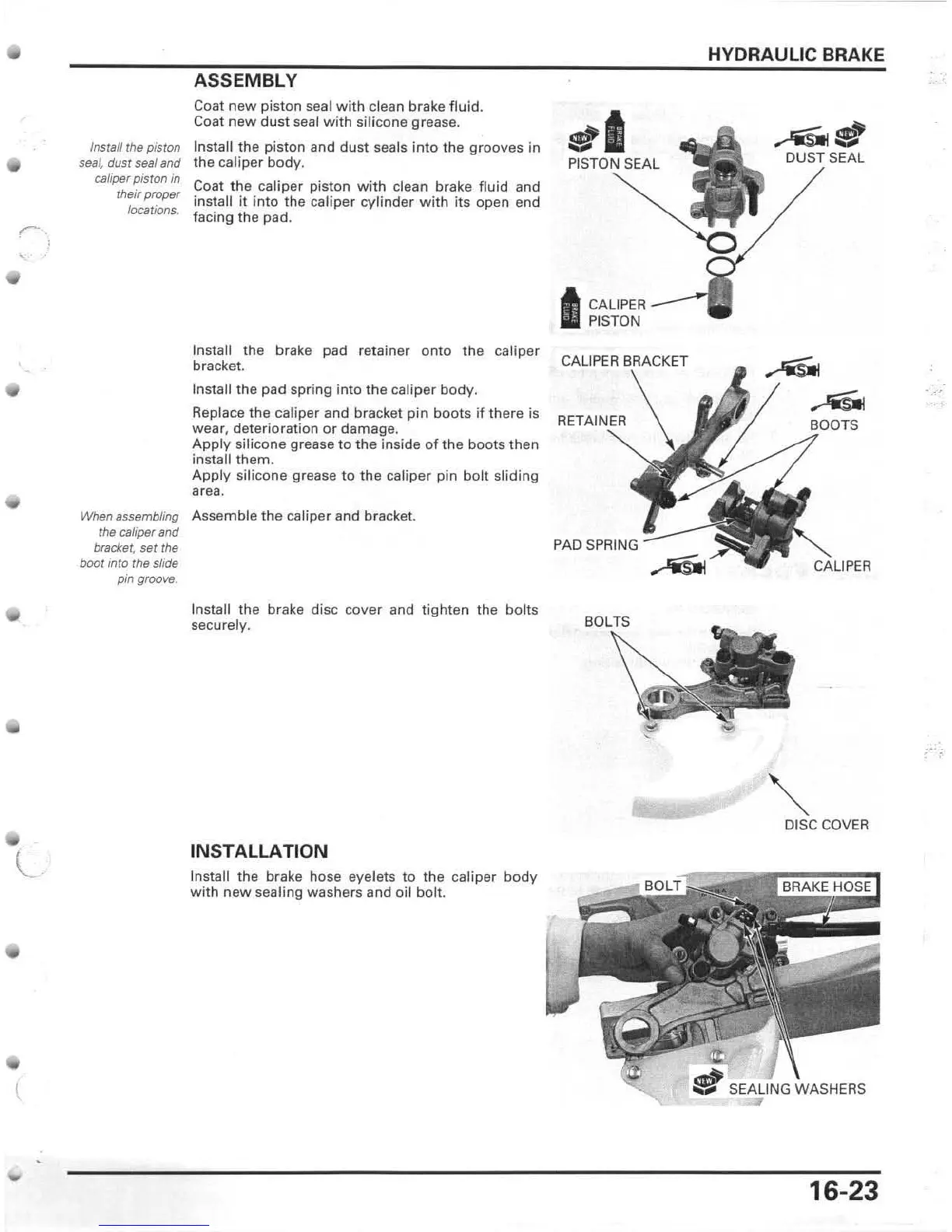

Coat new piston seal with clean brake fluid.
Coat new dust seal with silicone grease.
Install the piston Install the piston and dust seals into the grooves in
s8al, dust se al and the caliper body .
caliper piston in
their proper
loca/ions.
Coat th e caliper piston with clean brake fluid and
install it into the caliper cylinder with its open end
facing the pad.
Install the brake pad retainer onto the caliper
bracket.
Install the pad spring into the caliper body.
Replace the caliper and bracket pin boots if there is
wear, deterioration or damage.
Apply silicone grease to the inside of the boots then
install them .
Apply silicone grease to the caliper pin bolt sliding
area.
When assembling Assemble the caliper and bracket.
the caliper and
bradet. set the
boot
Into the slide
pin groove.
Install the brake disc cover and tighten the bolts
securely.
INSTALLATION
Install the brake hose eyelets to the caliper body
with new sealing washers and oil bolt.
st.
PISTON SEAL
.. CALIPER
• PISTON
HYDRAULIC BRAKE
~st
DUST SEAL
CALIPER
"
DISC COVER
" SEALING WASHERS
""
16-23
