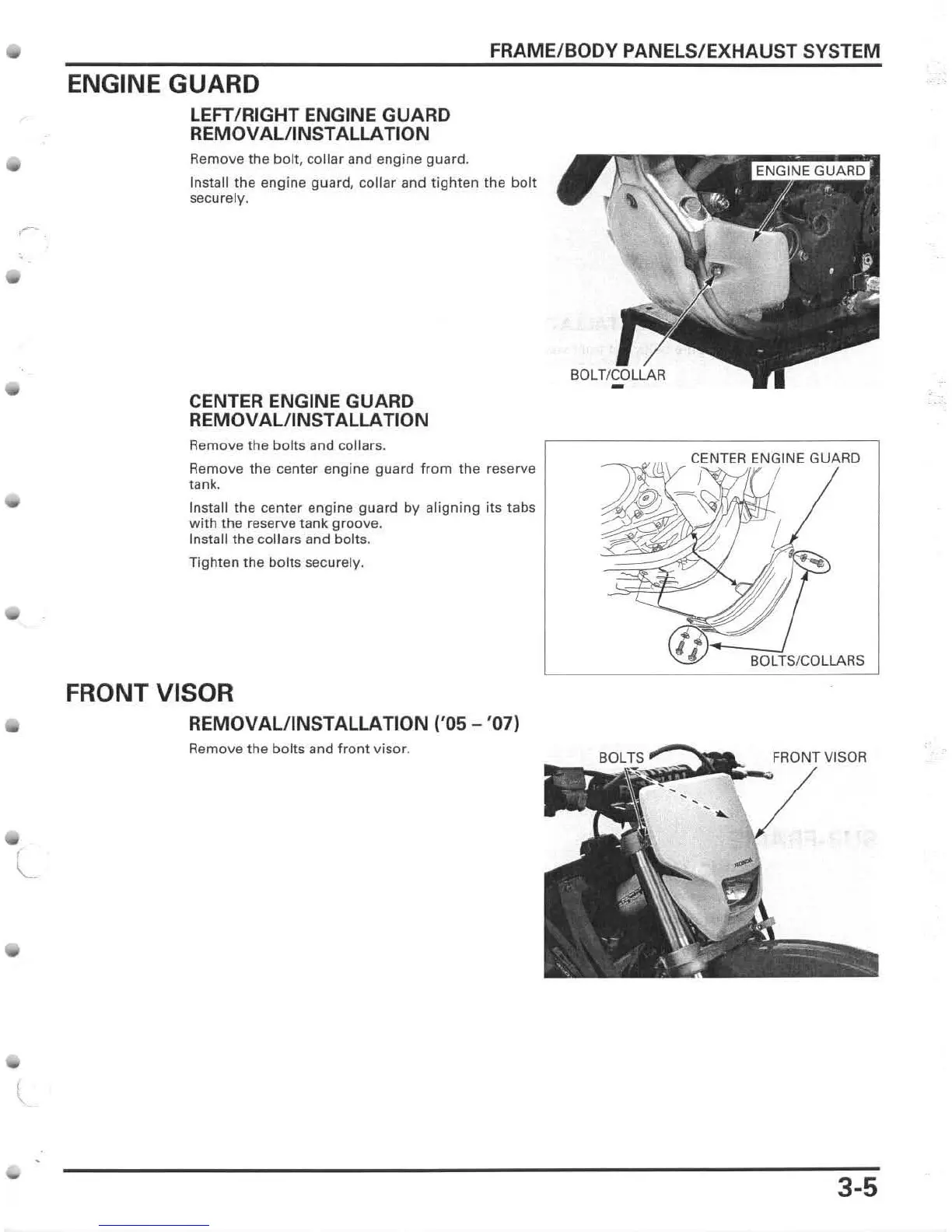

FRAME/ BODY PANELS/EXHAUST SYSTEM

ENGINE GUARD

LEFT/RIGHT ENGINE GUARD

REMOVAL/INSTALLATION

Remove

the

bolt,

colia

r and

engine

guard.

Install

the

engine

guard,

collar

and

tighten

the

bolt

securely.

CENTER ENGINE GUARD

REMOVAL/INSTALLATION

Remove

the

bolts

and collars.

Remove

the

center

engine

guard

from

the

reserve

tank.

Install

the

center

engine

guard

aligning

its

tabs

with

the

reserve tank

groove

Install

the

collars

and bolts.

Tighten

the

bolts

securely.

FRONT VISOR

REMOVAL/INSTALLATION ('05 - '07)

Remove the bolts and front visor.

BOl

TS/COLLARS

3-5
