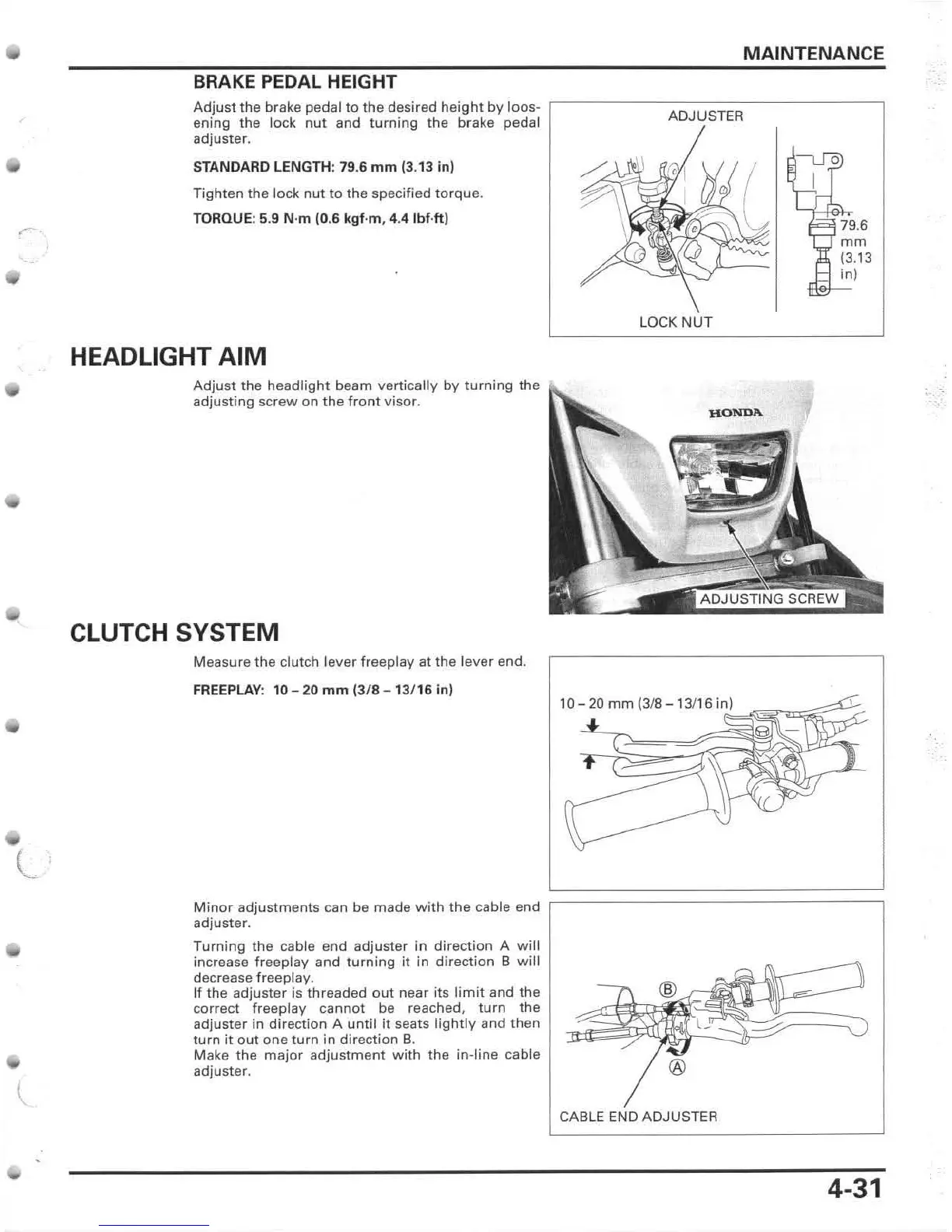

MAINTENANCE
BRAKE PEDAL HEIGHT
Adjust the brake pedal to the desired h eight by 1005- r------- --------- --,
ening the lock nut and turning the brake pedal
adjuster.
STANDARD LENGTH: 79.6 mm (3.13 in)
Tighten the lock nut to the specified torque .
TORQUE: 5.9 N'm (0.6 kgf ·m, 4.4 Ibf.ft)
HEADLIGHT AIM
Adjust the headlight beam vertically by turning the
adjusting scr ew on the front visor.
CLUTCH SYSTEM
Measu re the clutch lever freeplay at the lever end.
FREEPLAY: 10 - 20 mm (3 /8 - 13 /16 in)
Minor adjustments can be made with the cable end
adjuster.
Turning the cable end adjuster in direction A will
increase freeplay and turning it in direction B wi ll
decrease fr eeplay.
If the adjuster is threaded out near its l imit and the
cor rect freeplay cannot be reached, turn the
adjuster in direction A until it seats lightly and then
turn it out one turn in direction B.
Make the major adjustment wit h the in-line cable
adjuster.
LOCK
10-20mm (318-13116 i n)
CABLE END ADJUSTER
mm
(3.13
in)
4-31
