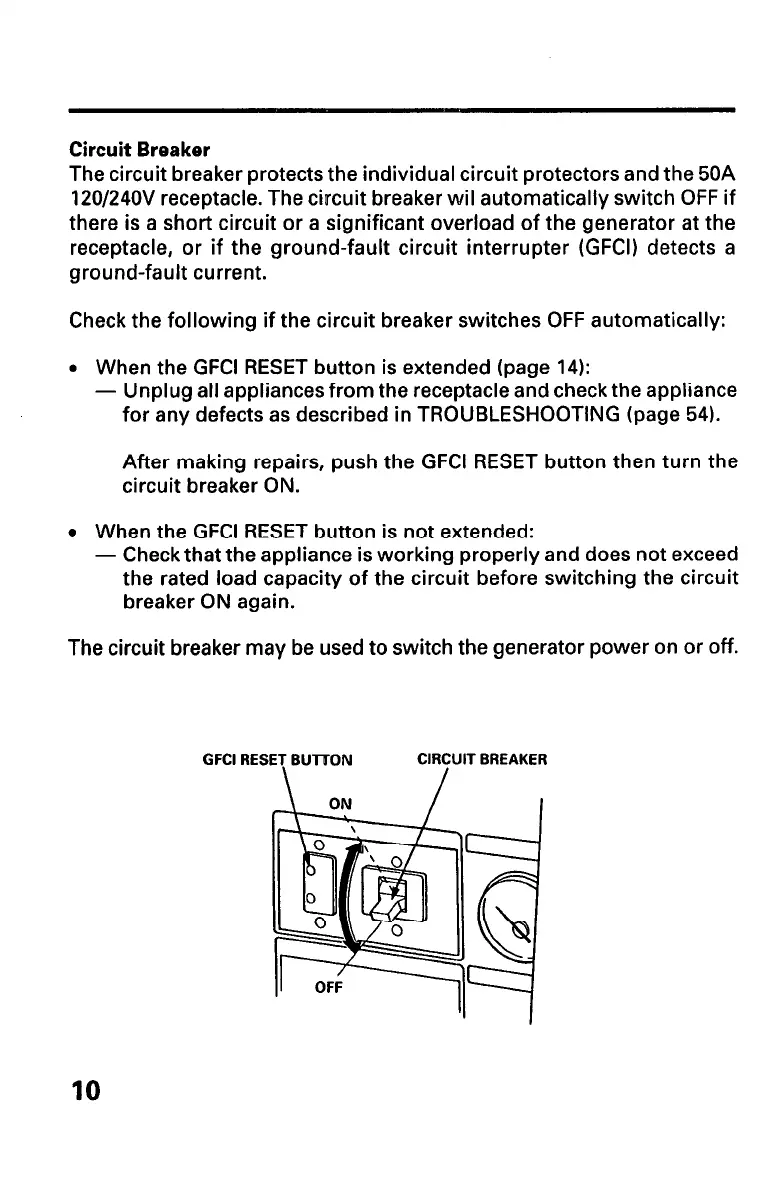

Circuit Breaker
The circuit breaker protects the individual circuit protectors and the 50A
120/24OV receptacle. The circuit breaker wil automatically switch OFF if
there is a short circuit or a significant overload of the generator at the
receptacle, or if the ground-fault circuit interrupter (GFCI) detects a
ground-fault current.
Check the following if the circuit breaker switches OFF automatically:
l When the GFCI RESET button is extended (page 14):
- Unplug all appliances from the receptacle and check the appliance
for any defects as described in TROUBLESHOOTING (page 54).
After making repairs, push the GFCI RESET button then turn the
circuit breaker ON.
l When the GFCI RESET button is not extended:
- Check that the appliance is working properly and does not exceed
the rated load capacity of the circuit before switching the circuit
breaker ON again.
The circuit breaker may be used to switch the generator power on or off.
GFCI RESET BUlTON
CIRCUIT BREAKER
\ /
IO
