33
OPERATION
AC Receptacle Selection

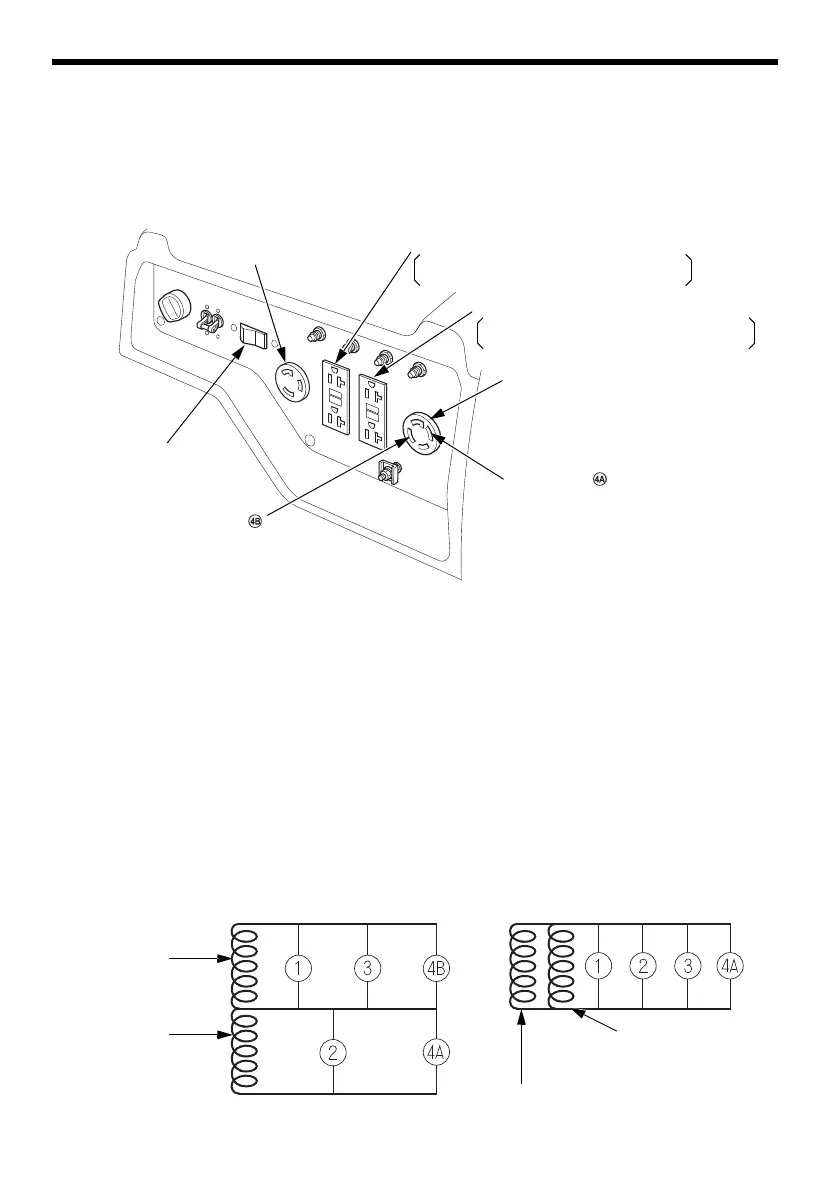

The control panel, shown below, has a voltage selector switch and
four receptacles. Receptacle 4, the 240-volt receptacle, has two
powered terminals, 4A and 4B.
Power Producing Circuits
This generator is equipped with two power generating circuits.
When the voltage selector switch is in the 120V/240V position, each of
the two power producing circuits supplies power to specific
receptacles.
When the voltage selector switch is in the 120V ONLY position, the
power producing circuits operate in parallel, sharing the total load
connected to terminal 4A and receptacles 1, 2, and 3.
VOLTAGE SELECTOR
SWITCH
RECEPTACLE ①
TERMINAL
TERMINAL
RECEPTACLE ④
RECEPTACLE ③
GFCI RECEPTACLE
(120 V 20 A DUPLEX RECEPTACLE)
RECEPTACLE ②
GFCI RECEPTACLE
(120 V 20 A DUPLEX RECEPTACLE)
120V/240V 120V ONLY
POWER
CIRCUIT 1
POWER
CIRCUIT 2
POWER CIRCUIT 1
POWER CIRCUIT 2
31Z306120.book 33 ページ ２０１５年１１月２７日 金曜日 午前１０時２５分
