Adjusting the Rear Brake Lever
Freeplay
Adjust the freeplay of the brake lever with the
front wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
If proper adjustment cannot be obtained by
this method, see your authorised dealer.
1.
Adjust by turning the rear brake adjusting
nut a half-turn at a time.
Brakes u Adjusting the Rear Brake Lever Freeplay
Maintenance
67
Continued

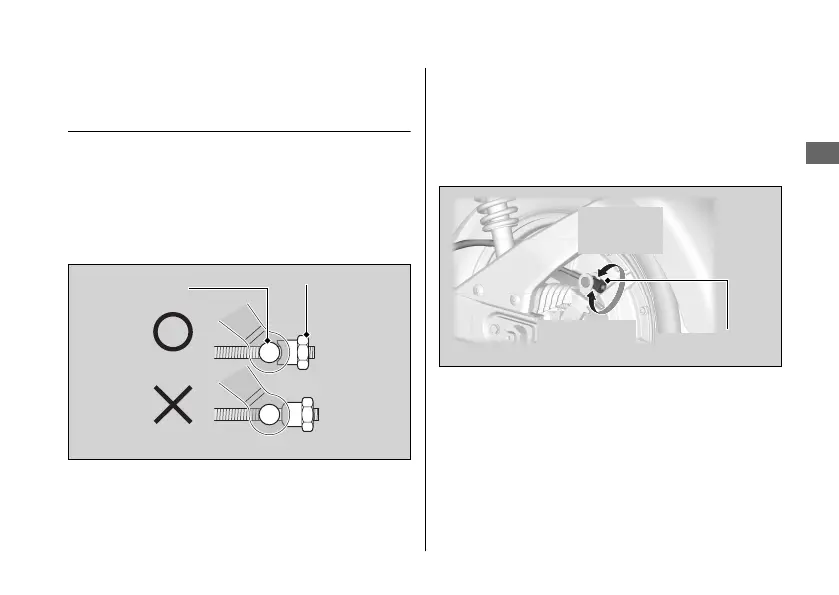

Brake arm pin
Adjusting nut
Adjusting nut
Increase
Freeplay
Decrease
Freeplay
To Next Page
