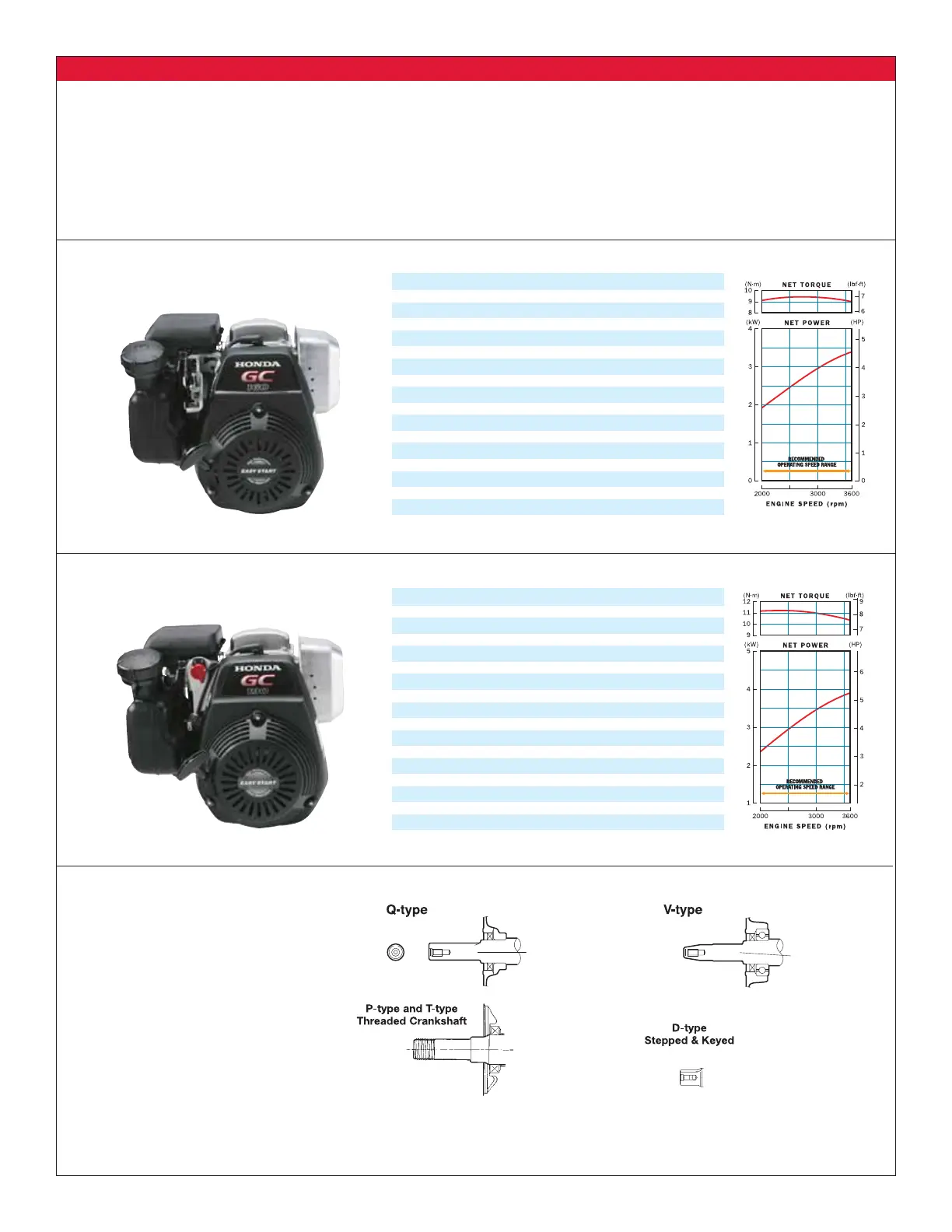

Honda GC Series User Manual

Horizontal Shaft
GC SERIES
Honda GC Engines provide an ideal source of reliable, lightweight power for a variety of consumer products including
pressure washers, pumps, compressors and portable generators.
Engine Type Air-cooled, 4-Stroke, OHC, single cylinder
Bore x Stroke 2.5" x 2.0" (64 x 50 mm)
Displacement 9.8 cu in (160 cm3)
Compression Ratio 8.5 : 1
Net Power (kW/rpm)* 4.6HP (3.4kW) at 3,600 rpm
Net Torque* 6.9 lbs ft (9.4 Nm) at 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Ignition System Transitorized Magneto
Starting System Recoil or Electric Starter
Carburetor Horizontal type butterfly valve
Lubrication System Forced Splash
Governor System Centrifugal Mechanical
Air Cleaner Dry (paper) type
Oil Capacity 0.61 US qt (0.58 l)
Fuel Tank Capacity (liter) 1.9 US qt (1.8l)
Dimensions (L x W x H) 13.3" (337mm) x 14.5" (369mm) x 13.0" (331mm)
Dry Weight 25.4 lbs (11.5 kg)
GC160
Engine Type Air-cooled, 4-Stroke, OHC, single cylinder
Bore x Stroke 2.7 x 2.0 in (69 x 50 mm)
Displacement 11.4 cu in (187 cm3)
Compression Ratio 8.5 : 1
Net Power (kW/rpm)* 5.2HP (3.9kW) at 3,600 rpm
Net Torque* 8.3 lbs ft (11.2 Nm) at 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Ignition System Transitorized Magneto
Starting System Recoil or Electric Starter
Carburetor Horizontal type butterfly valve
Lubrication System Forced Splash
Governor System Centrifugal Mechanical
Air Cleaner Dry (paper) type
Oil Capacity 0.61 US qt (0.58 l)
Fuel Tank Capacity (liter) 1.9 US qt (1.8l)
Dimensions (L x W x H) 13.6" (345mm) x 14.5" (369mm) x 13.0" (331mm)
Dry Weight 29.1 lbs (13.2 kg)
GC190
Shaft Types
Specifications are subject to change without notice.
* The power rating of the engines indicated in
this document measures the net power output at
3600 rpm (7000 rpm for model GXH50, GXV50,
GX25 and GX35) and net torque at 2500 rpm, as
tested on a production engine. Mass production
engines may vary from this value. Actual power
output for the engine installed in the final
machine will vary depending on numerous
factors, including the operating speed of the
engine in application, environmental conditions,
maintenance and other variables.

Honda GC Series Specifications

General

Starting System	Recoil starter
Lubrication System	Forced splash
Displacement	160 cc (GC160), 190 cc (GC190)
Bore x Stroke	68 mm x 45 mm (GC160), 69 mm x 50 mm (GC190)
Compression Ratio	8.5:1 (GC160, GC190)
PTO Shaft Rotation	Counterclockwise (from PTO side)
Fuel Type	Unleaded gasoline
Ignition System	Transistorized magneto
Fuel System	Carburetor
