CHARGING SYSTEM

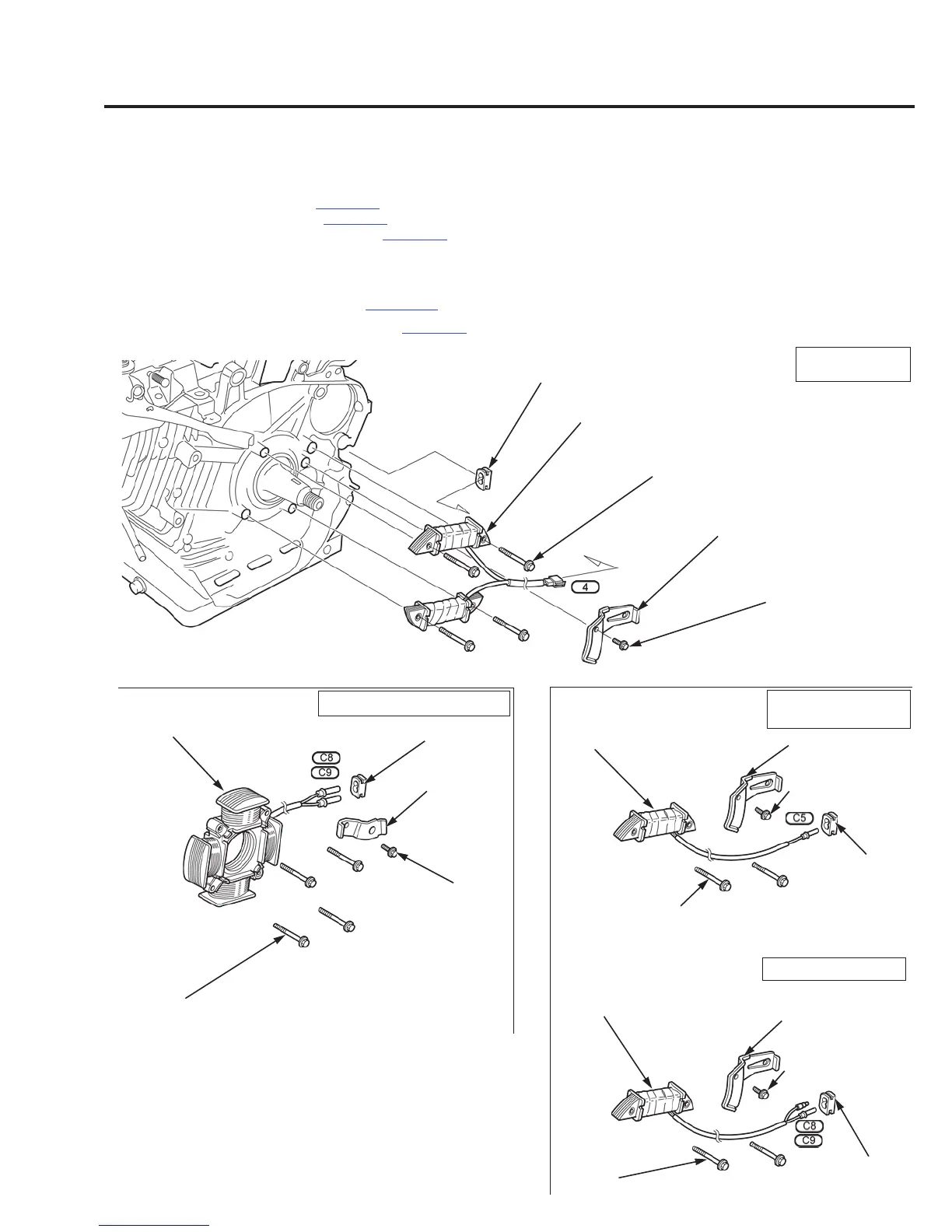

CHARGE / LAMP COIL (IF EQUIPPED)
REMOVAL/INSTALLATION
Remove the following parts:
– Fan cover
(page 5-2)
– Ignition coil (page 9-3)
– Remove the flywheel (page 8-7)
Remove the coil connector or connectors.
Installation is in the reverse of removal.
Install the cord clamp
(page 2-12)
.
Adjust the maximum speed
(page 7-8)
.
10A CHARGE COIL
BOLT (6 x 40 mm) (4)
BOLT (6 x 12 mm)
CORD GROMMET
CORD CLAMP
1A/3A CHARGE
COIL
3A CHARGE COIL TYPE: BOLT (6 x 40 mm) (2)
1A CHARGE COIL TYPE: BOLT (6 x 35 mm) (2)
BOLT (6 x 12 mm)
CORD
GROMMET
CORD CLAMP
10A CHARGE
COIL TYPE:
1A/3A CHARGE
COIL TYPE:
LAMP COIL TYPE
BOLT (6 x 40 mm) (2)
BOLT (6 x 12 mm)
CORD CLAMP
LAMP COIL TYPE:
CORD
GROMMET
18A CHARGE COIL
BOLT (6 x 40 mm) (4)
CORD
GROMMET
CORD
CLAMP
BOLT (6 x 12 mm)
18A CHARGE COIL TYPE:
gx240ut2_gx270ut2_gx340ut2_gx390ut2

Honda GX390UT2 Specifications

General

Displacement	389 cc
Bore x Stroke	88 mm x 64 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Oil Capacity	1.1 L (1.2 US qt)
Starting System	Recoil Starter
Ignition System	Transistorized Magneto Ignition
Engine Type	4-stroke, OHV, Single Cylinder
Net Torque	25.5 Nm @ 2500 RPM
Fuel Tank Capacity	6.1 L
