uuFusesuFuse Locations
Continued
Handling the Unexpected
■

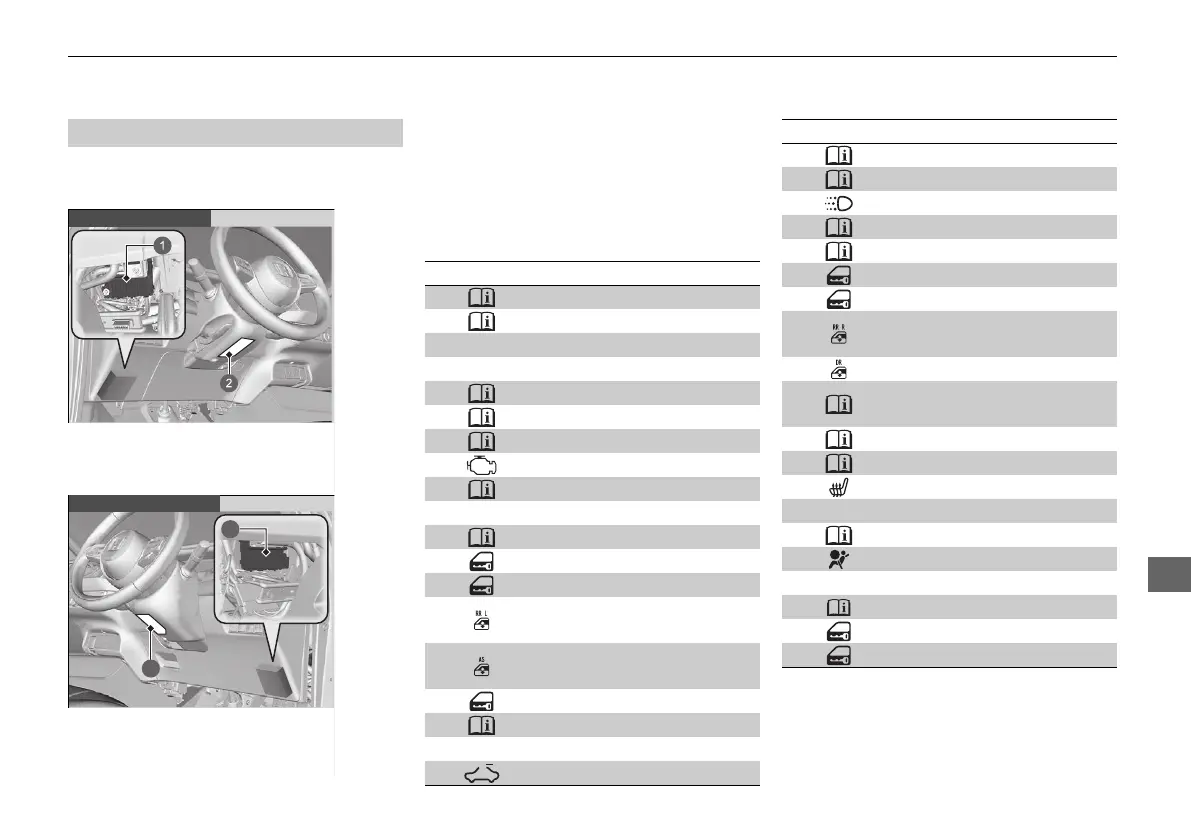

Type A
Located under the dashboard.
■
Driver Side Interior Fuse Box
Left-hand drive type
a Fuse Box
b Fuse Label
1
2
Right-hand drive type
a Fuse Box
b Fuse Label
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■
Circuit protected and fuse rating
Circuit Protected Amps
1 Accessory 7.5 A
2 ACC Key Lock 7.5 A
3 − − −
4− − −
5 Option 10 A
6 Option 2 10 A
7 Meter 10 A
8 Fuel Pump 15 A
9 AIRCON 10 A
10 − − −
11 MON 5 A
12 Right Side Door Lock 10 A
13 Left Side Door Unlock 10 A
14
Rear Left Side Power
Window
20 A
15
Front Passenger’s Side
Power Window
20 A
16 Door Lock 20 A
17 Transmission (10 A)
18 − − −
19 − (20 A)
20 Starter Cut Relay 7.5 A
21 ACG 10 A
22 Daytime Running Lights (7.5 A)
23 Rear Fog Light (10 A)
24 Option 7.5 A
25 − (10 A)
26 Right Side Door Unlock 10 A
27
Rear Right Side Power
Window
20 A
28 Driver’s Power Window 20 A
29
Front Accessory Power
Socket
(20 A)
30 Keyless access (10 A)
31 USB Charger
*
(10 A)
32 Front Seat Heater
*
(20 A)
33 − − −
34 VSA/ABS 10 A
35 SRS 10 A
36 − − −
37 − (10 A)
38 Left Side Door Lock 10 A
39 − (10 A)
Circuit Protected Amps
* Not available on all models
