626
uuFusesuFuse Locations
Handling the Unexpected
■

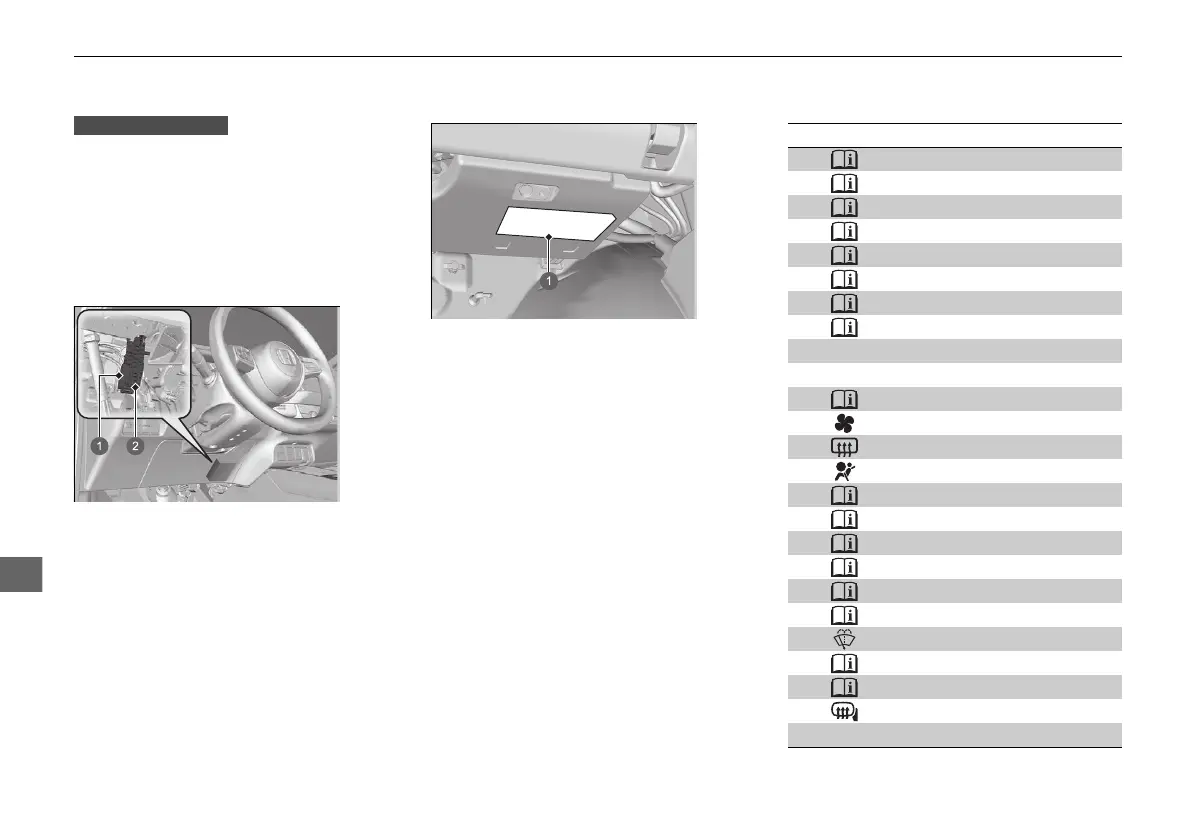

Type B
Located under the dashboard.
Only the fuse No. 1 is outside of the fuse
box.
Replacement of this fuse should be done by
a dealer.
Left-hand drive type
a Fuse No. 1
b Fuse No. 2-25
Fuse locations are shown on the label under
the glove box.
Locate the fuse in question by the fuse
number and label number.
a Fuse Label
Circuit Protected Amps
1 Fuse Box Main 60A
2IG Main30A
3 IG Main 2 30A
4 Relay Module 1 30A
5 Relay Module 2 30A
6 Fuse Box Main 2 (40A)
7 Fuse Box Main 3 (40A)
8 A/C PTC1 (40A)
9 − − −
10 − − −
11 A/C PTC2 (40A)
12 Heater Motor 30A
13 Rear Demister (30A)
14 SRS 10A
15 IGB (10A)
16 IGA (10A)
17 Keyless Access (10A)
18 − (20A)
19 − (10A)
20 Audio Amp
*
(20A)
21 Washer 15A
22 Heated Steering
*
(15A)
23 IGA2 (15A)
24 Heated Door Mirror (10A)
25 − − −
* Not available on all models
