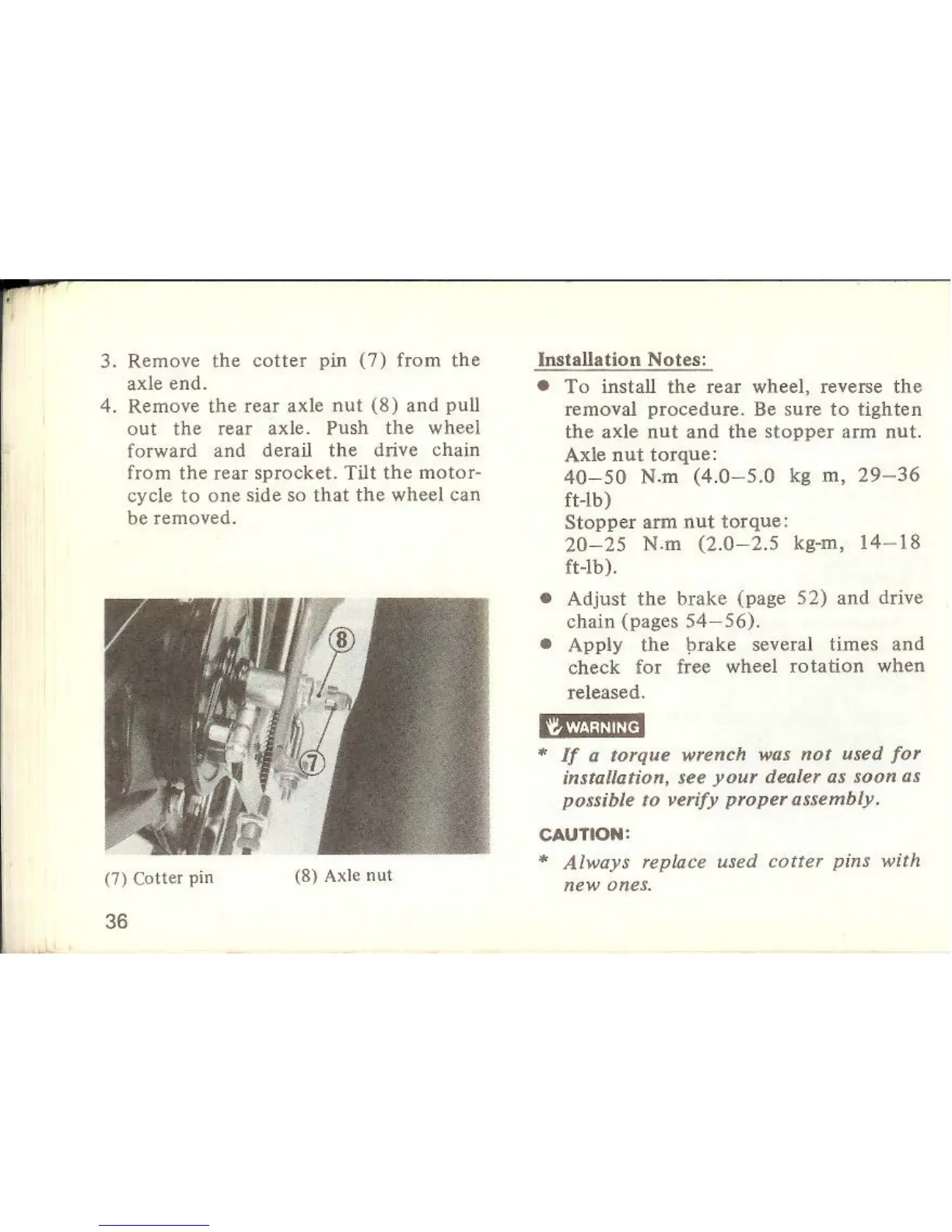

3. Remove the cott er pin (7) from the
axle end.
4. Remove the rear axle nut (8) and pull
ou t the rear axle. Push the wheel
forward and derail
the drive chain
from the rear sprocket. Tilt the motor-
cycle
to one side so that the wheel can
be removed.
(7) Cotter pin
(8} Axle nut
36
Installation Notes:
• To install the rear wheel, reverse the
removal procedure. Be sure to tighten
the axle nut and the stopper arm nut.
Axle nut torque:
40 - 50 N.m (4 . 0-5.0 kg m, 29 - 36
ft-lb)
S topper arm nut torque:
20-25 N.m (2.0-2.5 kg-m, 14 - 18
ft-lb ).
• Adjust the brake (page 52) and drive
chain (pages
54-56).
• Apply the prake several times and
check for free wheel rotation when
released.
i?IW!;W@J
* If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify properassembly.
CAUTION:
* Always replace used cotter pins with
new ones.
