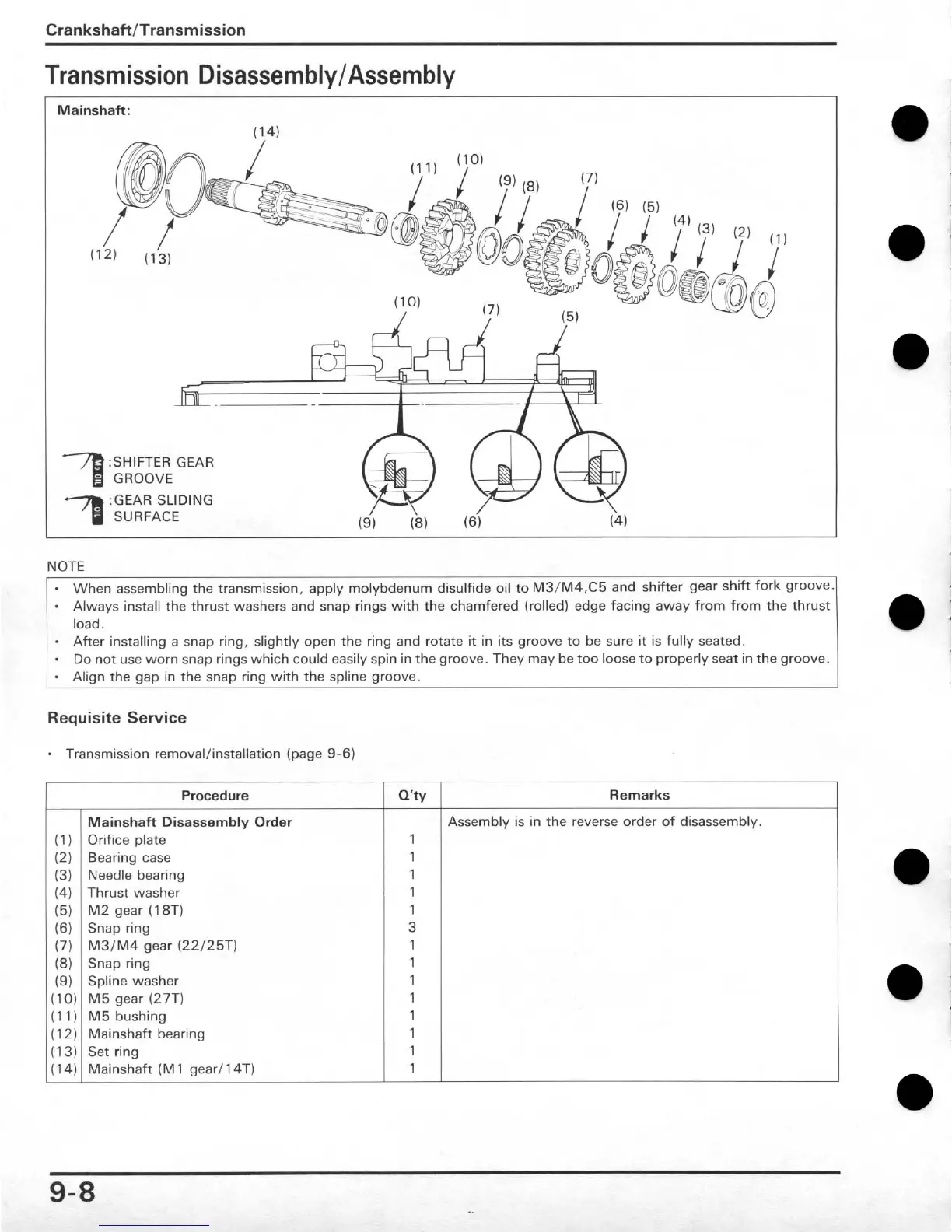

Transmission Disassembly1 Assembly
Mainshaft
3
SHIFTER GEAR
GROOVE
GEAR SLIDING
SURFACE
NOTE
/
.
When assembling the transmission, apply molybdenum disulfide oil to M3/M4.C5 and shifter gear shift fork groove
.
Always install the thrust washers and snap rings with the chamfered (rolled) edge facing away from from the thrust
load.
.
After installing a snap ring, slightly open the ring and rotate
it
in its groove to be sure
it
is fully seated.
.
Do not use worn snap rings which could easily spin in the groove. They may be too loose to properly seat in the groove.
.
Alian the aao in the snao rino with the s~line crroove.
Requisite Service
Transmission removallinstallation (page 9-61
1
Procedure
I
0.W
I
Remarks
Mainshaft Disassembly Order
Orifice plate
Bearing case
Needle bearing
Thrust washer
M2 gear (1 8T)
Snap ring
M31M4 gear (22125T)
Snap ring
Spline washer
M5 gear
(27T)
M5 bushing
Mainshaft bearing
Assembly is in the reverse order of disassembly.
(13)
(14)
Set ring
Mainshaft
(MI gearll4T)
To Next Page
