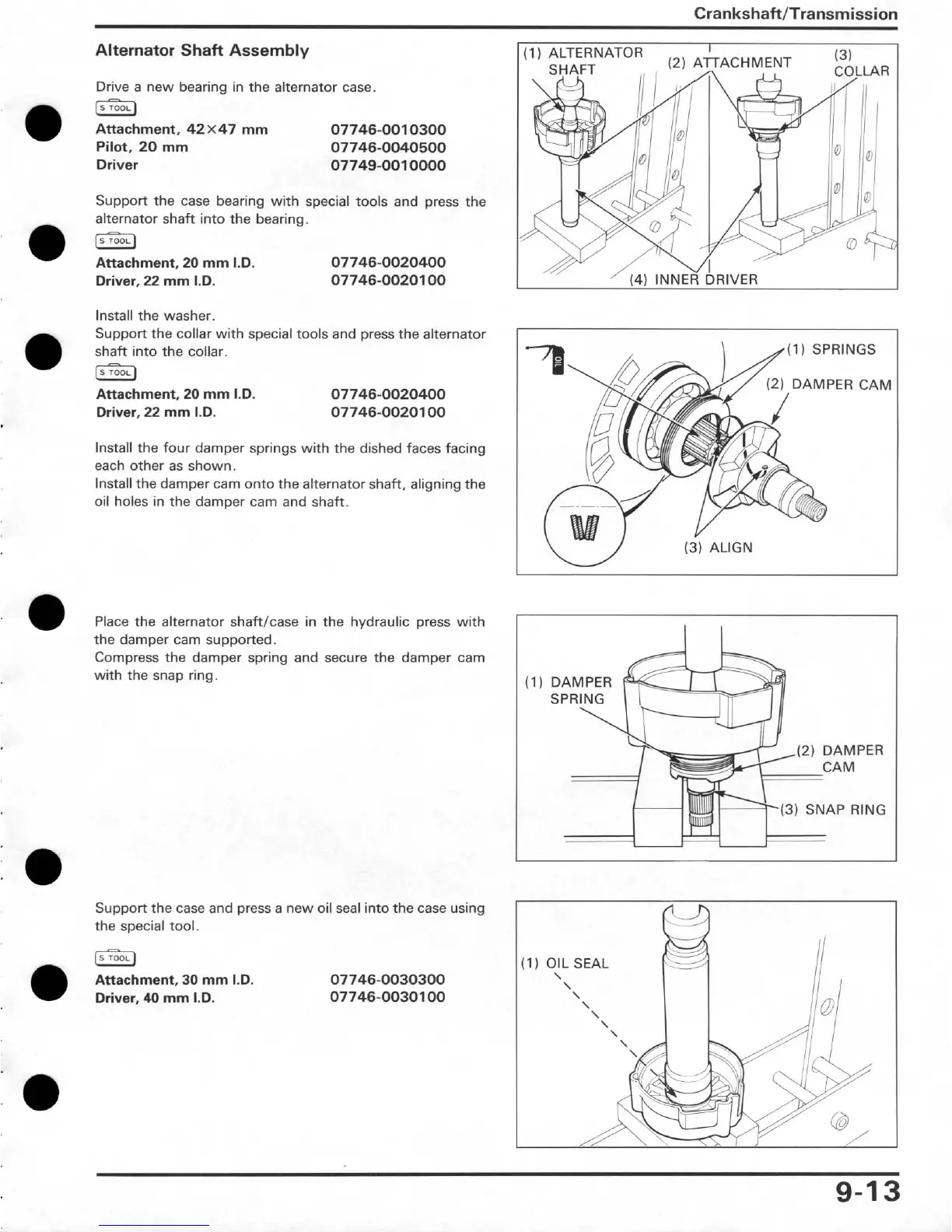

Alternator
Shaft
Assembly
Drive a new bearing in the alternator case.
Attachment,
42x47
mm
07746-001 0300
Pilot,
20
mm
07746-0040500
Driver
07749-001 0000
Support the case bearing with special tools and press the
alternator shaft into the bearing.
Attachment.
20
mm I.D.
07746-0020400
Driver,
22
mm I.D.
07746-00201 00
Install the washer.
Support the collar with special tools and press the alternator
shaft into the collar.
Attachment,
20
mm I.D.
07746-0020400
Driver,
22
mm I.D.
07746-0020100
Install the four damper springs with the dished faces facing
each other as shown.
Install the damper cam onto the alternator shaft, aligning the
oil holes in the damper cam and shaft.
•
Place the alternator shaftlcase in the hydraulic press with
the damper cam
sup~orted
.
.
Compress the damper spring and secure the damper cam
with the snap ring.
Support the case and press a new oil seal into the case using
the special tool.
-
---
a-
Attachment,
30
mm I.D.
07746-0030300
Driver,
40
mm I.D.
07746-00301 00
DAMPER CAM
(3)
SNAP RING
