Honda Outboard Motor BF135A User Manual

26

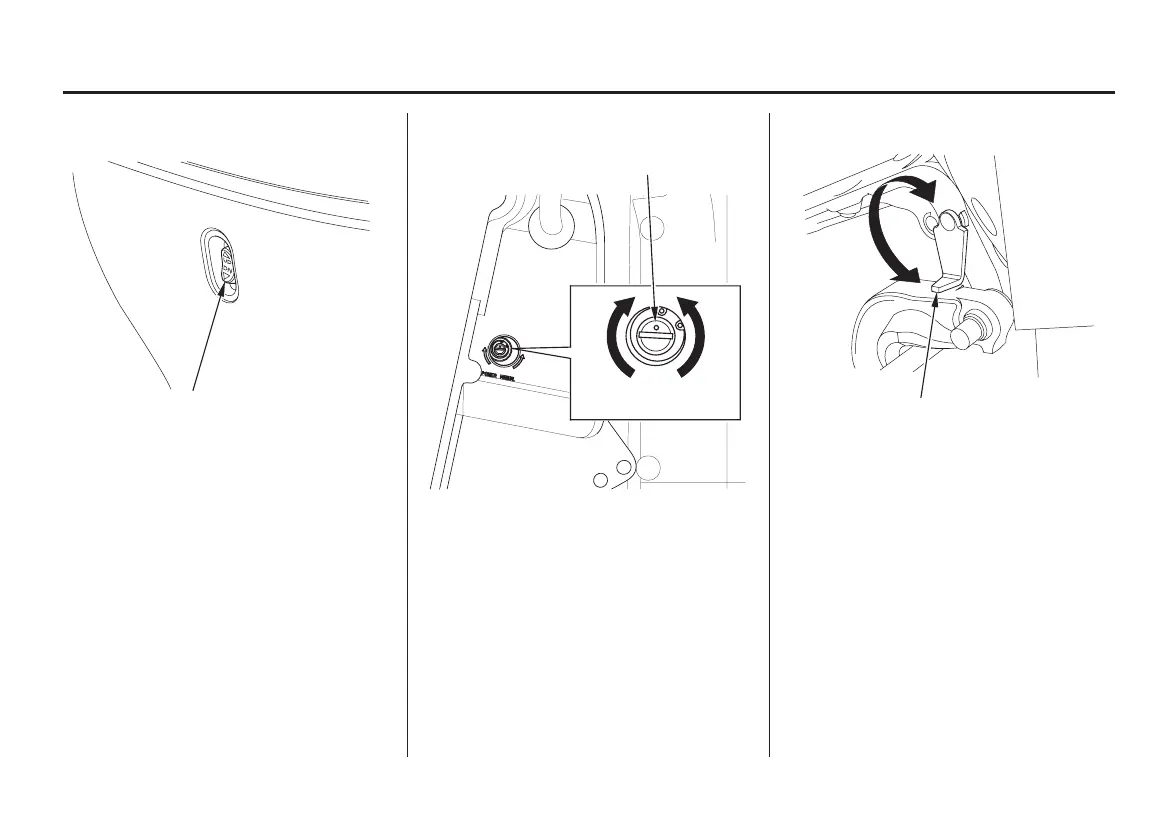

Power Tilt Switch Manual Relief Valve Tilt Lock Lever
CONTROLS AND FEATURES
POWER TILT SWITCH
MMAANNUUAALL RREELLIIEEFF VVAALLVVEE
FFRREEEE
LLOOCCKK
TTIILLTT LLOOCCKK LLEEVVEERR
PPOOWWEERR
((TToo ffiixx))
MMAANNUUAALL
((TToo rreelleeaassee))
This switch is used with the engine
stopped to raise the outboard motor
for mooring, trailering or
maintenance.
The power tilt switch will operate
without turning the ignition switch
ON.
The power tilt switch is located on
the engine pan. It is a rocker switch
with UP and DN (down) positions
for changing the angle of the
outboard motor. When the boat is to be moored for a
long time, tilt the outboard motor as
far as it will go. Then move the tilt
lock lever to the LOCK position, and
gently lower the outboard motor until
the lever contacts the stern bracket.
The tilt lock lever is used to support
the outboard motor in the fully-raised
position.
The outboard motor can be tilted
manually after opening the manual
relief valve. This allows the outboard
motor to be tilted when no battery is
connected.
04/01/21 11:11:18 31ZY6600_027

Honda Outboard Motor BF135A Specifications

General

Valve Train	SOHC
Number of Cylinders	4
Fuel Induction System	Programmed Fuel Injection (PGM-FI)
Starting System	Electric
Steering	Remote
Gear Ratio	2.14:1
Cooling System	Water Cooled
Exhaust	Through Propeller
Warranty	5 years
Lubrication System	Wet Sump
Displacement	2354 cc
Max Output	135 HP
Full Throttle RPM Range	5000 - 6000 RPM
Trim Method	Power Trim and Tilt
Shaft Length	20" or 25"
Fuel Type	Unleaded Gasoline
Engine Type	4-Stroke SOHC 16 Valve
