631
uuFusesuFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

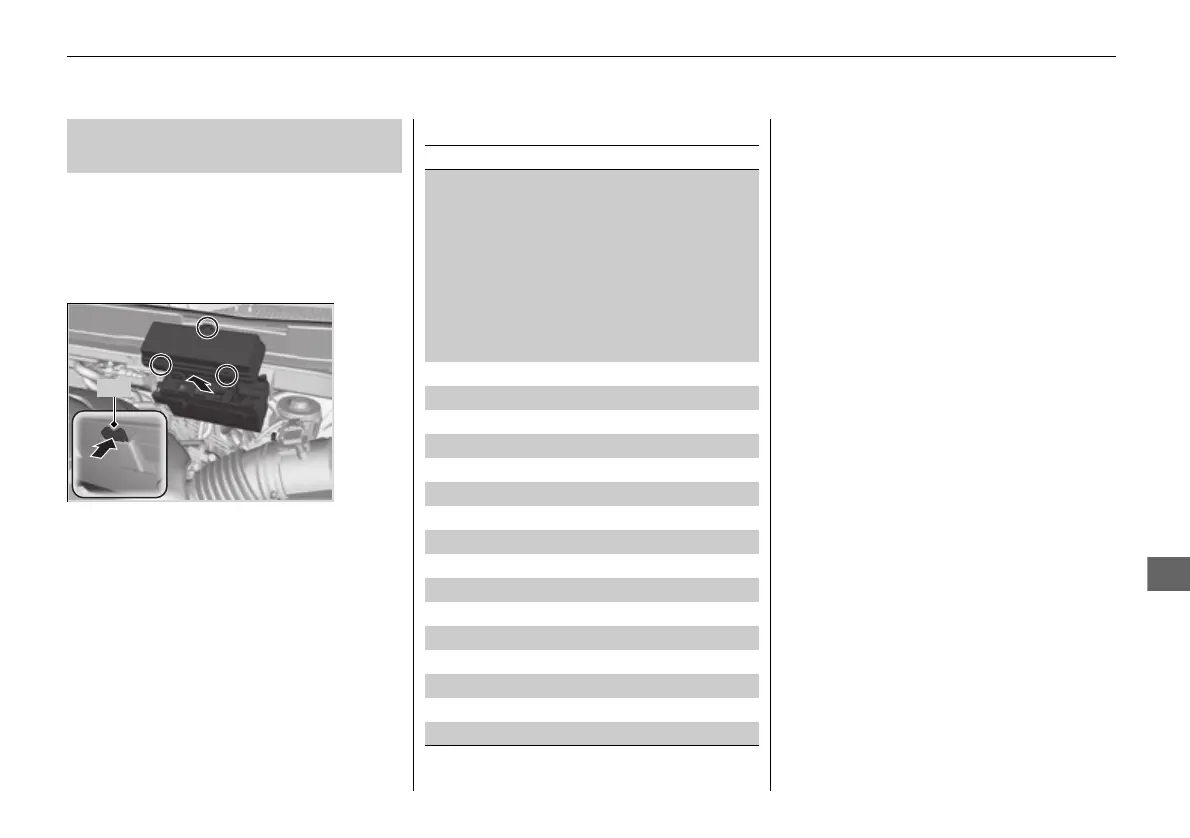

Located near the brake fluid reservoir. Push
the tabs to open the box.
■
Engine Compartment Fuse
Box Type B
Tab
■ Circuit protected and fuse rating
Circuit Protected Amps
1
ST CUT1 (40 A)
4WD (20 A)
IG MAIN 30 A
IG MAIN2 30 A
PTG MTR (40 A)
F/B MAIN2 60 A
F/B MAIN 60 A
EPS 60 A
2 TRL MAIN (30 A)
3 TRL E-BRAKE (20 A)
4 BMS 7.5 A
5 H/L HI MAIN 20 A
6 PTG CLOSER (20 A)
7 CTR ACC SOCKET 20 A
8 RR ACC SOCKET (20 A)
9 FR DE-ICE (15 A)
10 ACC/IG2_MAIN 10 A
11 TRL CHARGE (20 A)
12 IDLE STOP ST CUT (30 A)
13 IDLE STOP (30 A)
14 IDLE STOP (30 A)
15 TCU/SBW (15 A)
16 RR HEATED SEAT (20 A)
17 STRLD 7.5 A
