uuFusesuFuse Locations
Handling the Unexpected

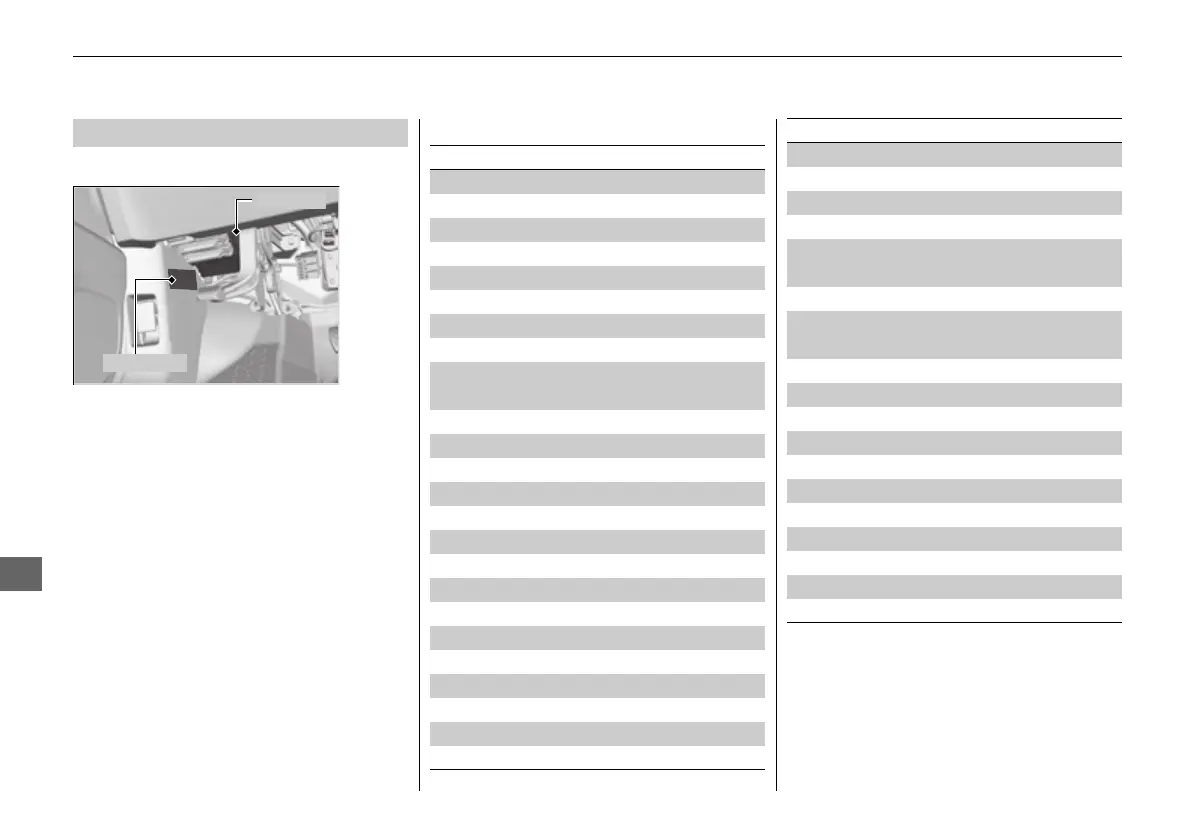

Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■
Interior Fuse Box Type A
Fuse Box
Fuse Label
■ Circuit protected and fuse rating
Circuit Protected Amps
1 DR P/W 20 A
2 DOOR LOCK 20 A
3 SMART 7.5 A
4 AS P/W 20 A
5 FR ACC SOCKET 20 A
6 FUEL PUMP 20 A
7 ACG 15 A
8 FRONT WIPER 7.5 A
9
IG1 SMART
*1
7.5 A
ABS/VSA
*2
7.5 A
10 SRS 10 A
11 REAR LEFT P/W 20 A
12 − −
13 REAR RIGHT P/W 20 A
14 FUEL LID 20 A
15 DR P/SEAT (REC) (20 A)
16 REAR FOG (7.5 A)
17 FR SEAT HEATER (20 A)
18 INTR LT 7.5 A
19 DR REAR DOOR UNLOCK 10 A
20 AS SIDE DOOR UNLOCK 10 A
21 DRL 7.5 A
22 KEY LOCK 7.5 A
23 A/C 7.5 A
24 IG1a FEED BACK 7.5 A
*1:Models with Auto idle-stop system
*2:Models without Auto idle-stop system
25 INST PANEL LIGHTS 7.5 A
26 LUMBAR SUPPORT (10 A)
27 PARKING LIGHTS 7.5 A
28 OPTION 10 A
29
BACK LT
*1
7.5 A
METER
*2
7.5 A
30 REAR WIPER 10 A
31
ST MOTOR
*1
7.5 A
MISS SOL
*2
7.5 A
32 SRS 7.5 A
33 AS SIDE DOOR LOCK 10 A
34 DR DOOR LOCK 10 A
35 DR DOOR UNLOCK 10 A
36 DR P/SEAT (SLIDE) (20 A)
37 RIGHT H/L HI 10 A
38 LEFT H/L HI 10 A
39 IG1b FEED BACK 7.5 A
40 ACC 7.5 A
41 DR REAR DOOR LOCK 10 A
42 − −
Circuit Protected Amps
