uuFusesuFuse Locations
Handling the Unexpected

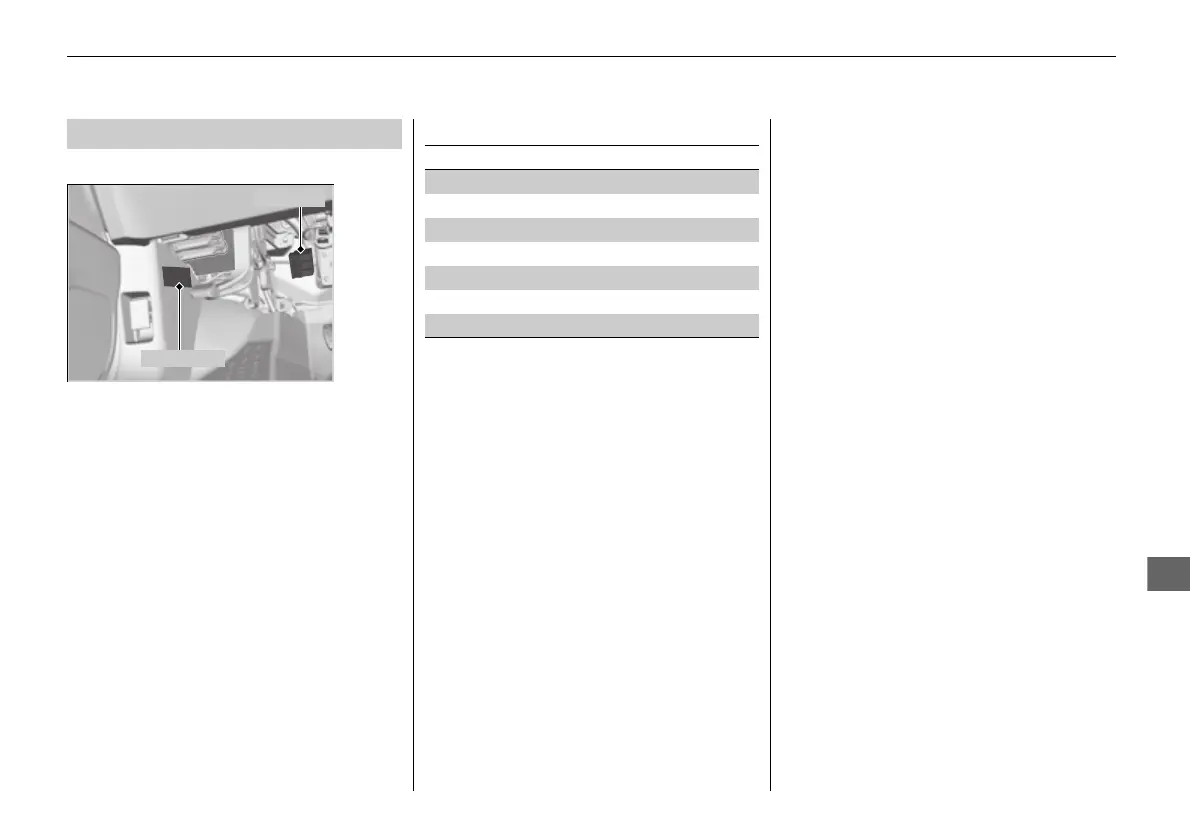

Located under the dashboard.
Fuse locations are shown on the image.
Locate the fuse in question by the fuse
number and label number.
■
Interior Fuse Box Type B
*
Fuse Box
Fuse Label
■ Circuit protected and fuse rating
Circuit Protected Amps
A METER 7.5 A
B ABS/VSA 7.5 A
C ACG 7.5 A
D MICU 7.5 A
E AUDIO 20 A
F BACK UP 10 A
G ACC 7.5 A
* Not available on all models
