Honda Rebel 2017 User Manual

Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 52
#
Fuse Box Fuses
1. Remove the battery cover. 2 P. 61
2. Open the fuse box covers.
3. Pull the fuses out one by one with the
fuse puller and check for a blown fuse.
Always replace a blown fuse with a spare
fuse of the same rating.
u The fuse puller is stored on the battery
cover.
CMX300
u Spare fuses are provided in the fuse
box.
CMX300A
u Spare fuses are provided in the fuse
box and on the battery cover (to
access the spare fuse, open the cover).
4. Close the fuse box covers.
5. Reinstall parts in the reverse order of
removal.
20161124110921_31K87A000_enu_BOOK Page 110 Thursday, November 24 2016 11:13:27 JST
Electrical Trouble u Blown Fuse
Troubleshooting
107
Continued

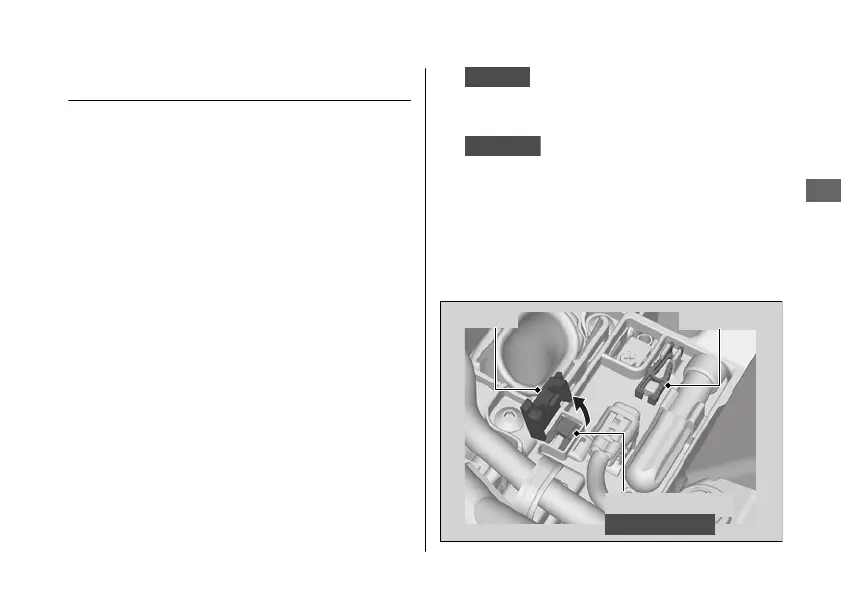

Fuse pullerCover
30 A spare fuse
CMX300A only

Honda Rebel 2017 Specifications

General

Compression Ratio	10.7:1
Transmission	6-speed
Final Drive	O-ring-sealed chain
Front Suspension	41mm fork; 4.8 inches travel
Front Brake	Single 296mm disc with two-piston caliper
Front Tire	130/90-16
Rear Tire	150/80-16
Trail	110mm (4.3 inches)
Wheelbase	58.7 inches
Seat Height	27.2 inches
Curb Weight	408 pounds
Bore x Stroke	67mm x 66.8mm
Induction	PGM-FI
Rear Suspension	Dual shocks with 3.8 inches travel
Rear Brake	240mm disc
Rake (Caster Angle)	28 degrees
Valve Train	DOHC; four valves per cylinder
Engine Type	471cc liquid-cooled parallel-twin
