LIGHTS/METERS/SWITCHES
22-6
Release the wire band boss from the wire guide.
Remove the three screws and turn signal/position
light unit.
Installation is in the reverse order of removal.
REAR TURN SIGNAL/BRAKE/
TAILLIGHT
BULB REPLACEMENT
REAR BRAKE/TAILLIGHT BULB
Remove the following:
– two screws
– brake/taillight lens
While pushing the brake/taillight bulb in, turn it
counterclockwise to remove it, and replace it with a
new one.
Make sure the lens gasket is installed in position
and is in good condition and replace it if necessary.
Installation is in the reverse order of removal.
Route the wires
properly
(page 1-19).

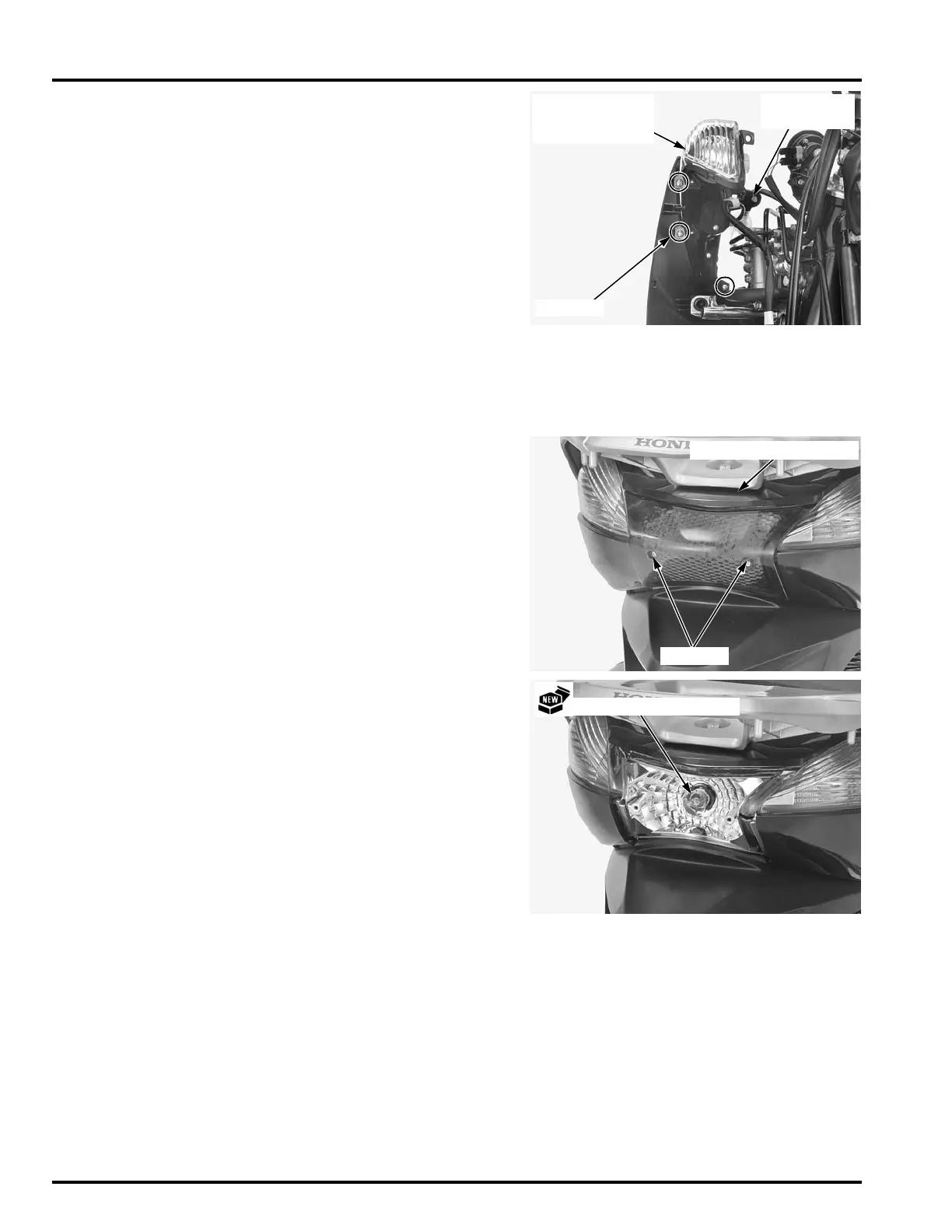

SCREWS
TURN SIGNAL/
POSITION LIGHT
UNIT
WIRE BAND
BOSS
SCREWS
BRAKE/TAILLIGHT LENS
BRAKE/TAILLIGHT BULB

Honda SH300 2010 Specifications

General

Displacement	279cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Max Torque	26.5 Nm at 6, 000 rpm
Fuel System	PGM-FI electronic fuel injection
Ignition	Digital transistorized with electronic advance
Front Suspension	Telescopic fork
Front Tire	110/70-16
Rear Tire	130/70-16
Curb Weight	169 kg
Height	1, 195 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Transmission	V-Matic
Front Brake	Single 256 mm disc
Rear Brake	Single 240 mm disc
Rear Suspension	Dual shock absorbers
