Headlight Bulb
1.
Remove the headlight bolts from the
headlight case.
2.
Gently pull the lower end of the headlight
forward and remove the headlight.
3.
Disconnect the connector.
4.
Remove the seat rubber.
5.
Unhook the pin and remove the bulb.
6.
Install a new bulb and parts in the reverse
order of removal.
u
Install the seat rubber with its TOP
mark facing up.
7.
Tighten the headlight bolts.
Torque: 3.0 lbf·ft (4.1 N·m, 0.4 kgf·m)
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
94

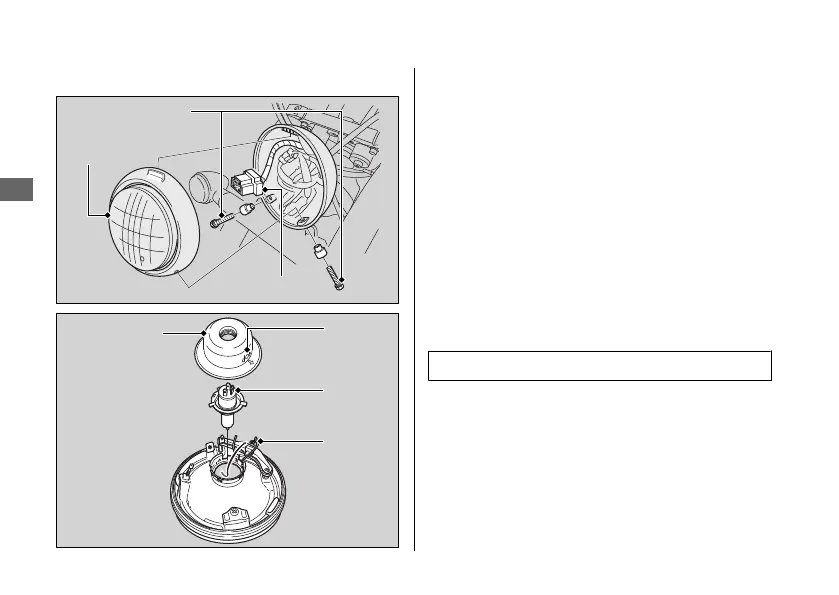

Connector
Headlight
Headlight bolts
Seat rubber
TOP
mark
Pin
Bulb
