Removing & Installing Body Components u Headlight Case
52
5.
Remove the screws A and screw B.
6.
Release the bosses by pressing the rear
handle cover.
7.
Remove the headlight case and disconnect
the socket.
#
Installation
Install the parts in the reverse order of
removal.
u To install the rearview mirrors.
1.
Install the mirror adapters.
2.
Install the rearview mirrors by turning
counterclockwise until they will no longer
turn.
3.
Loosen the rearview mirrors approximately
2 turns.
4.
Adjust the rearview mirrors.
5.
Tighten the lock nuts and install the rubber
dust covers.

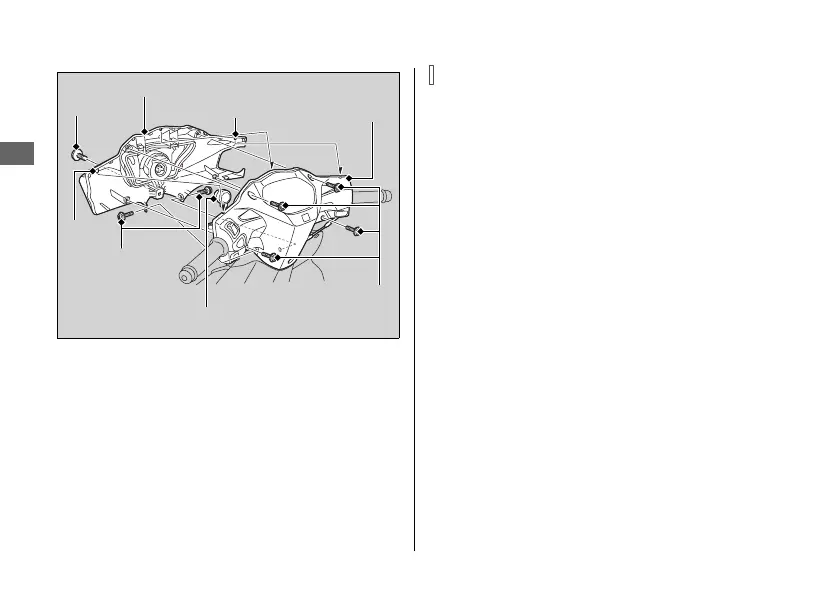

Headlight Case
Screws A
Boss
Boss
Socket
Screws A
Rear handle
cover
Screw B
