Honda WAVE ALPHA - Main Pipe Cover

Removing & Installing Body Components u Main Pipe Cover
53
Maintenance
Main Pipe Cover
#
Removal
1. Remove the screws A, screws B and screw C.
2. Slightly release the tabs from the slots.
3. Remove the main pipe cover.
#
Installation
Install the parts in the reverse order of
removal.

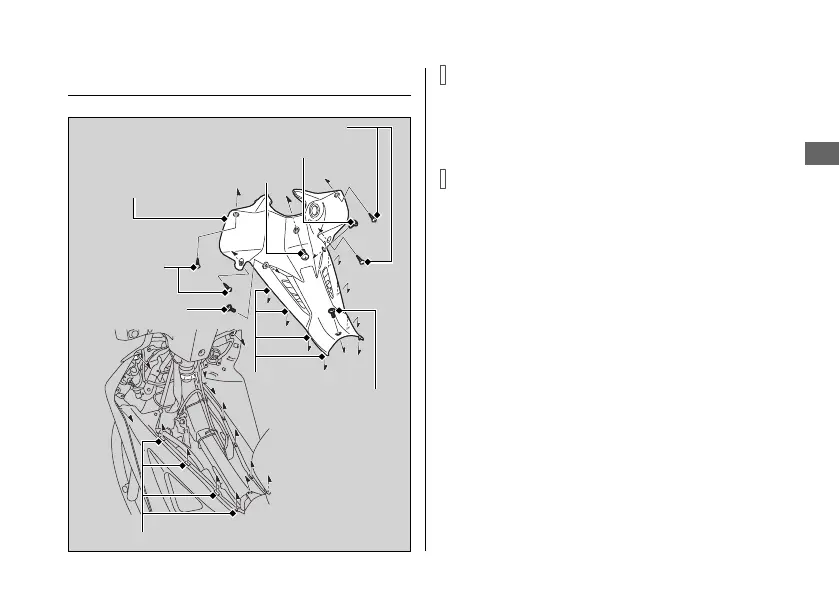

Main pipe cover
Screw C
Screw B
Screws A
Screw B
Tabs
Screws A
Screw B
Slots
